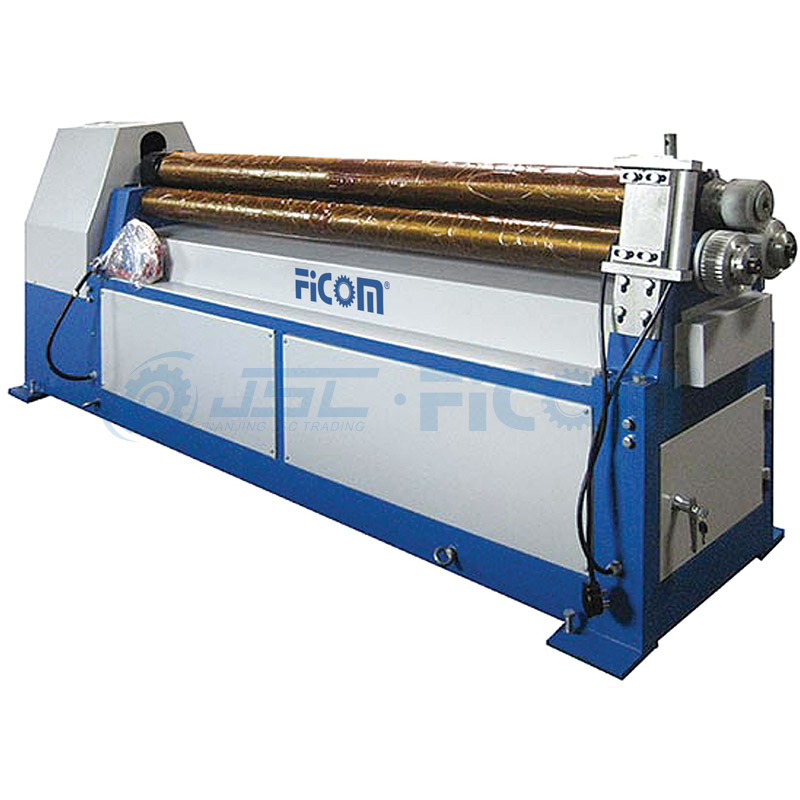

RM Series 3-Roller Bending Machine with Prebend

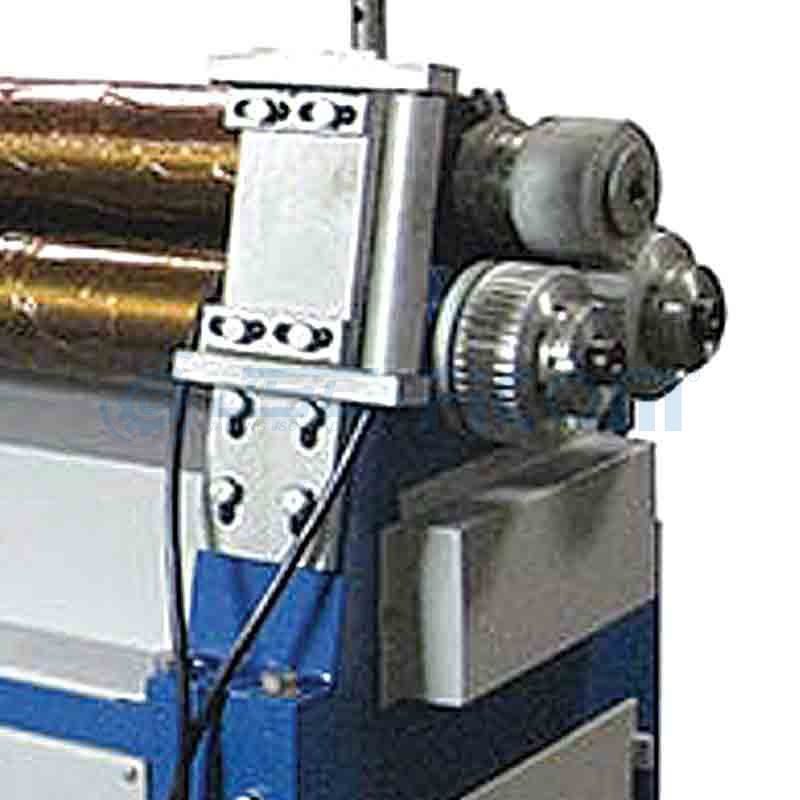

· The up and down parts of RM series three roller bending machine utilizes a machine construction. The transportation parts being machine driven. The upper roller can be moved up and down by the motor to discharge the workpiece. The machine can be according to customer's requirement to be supplied with specific rollers to work angle and steel pipe.

Quantity:
  • RM
  • FICOM
Overview

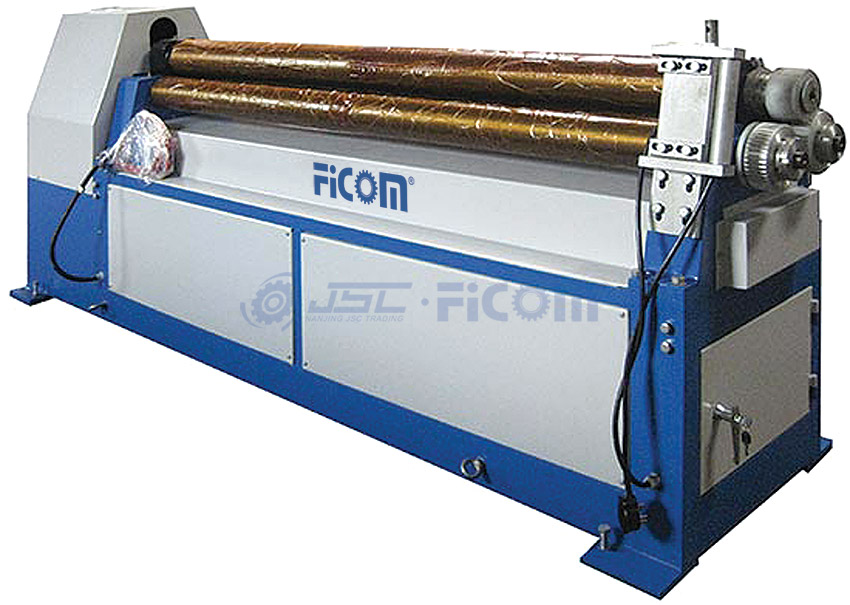

3-Roll

Technical Parameters
Model No. RM-3×1600 RM-3×2000 RM-3×2500 RM-4×2000
maximum thickness 3mm 3mm 3mm 4mm
maximum width 1600mm 2000mm 2500mm 2000mm
yield limit 245mm 245mm 245mm 245mm
minimum coil diameter 200mm 200mm 400mm 200mm
top roller diameter 155mm 155mm 200mm 155mm
bottom roller diameter
165mm 165mm 165mm 165mm
motor
2.2/1.1Kw 2.2/1.1Kw 5.5/3Kw 2.2/1.1Kw
G.W.
1450Kg 1650Kg 2800Kg 1900Kg
size(L×W×H)
2500×900×1100mm 2900×900×1100mm 4100×900×1100mm 3600×900×1100mm


Model No. RM-4×2500 RM-6×2500 RM-8×2000 RM-10×1300
maximum thickness 4mm 6mm 8mm 10mm
maximum width 2500mm 2500mm 2000mm 1300mm
yield limit 245mm 245mm 245mm 245mm
minimum coil diameter 400mm 400mm 400mm 400mm
top roller diameter 200mm 200mm 200mm 200mm
bottom roller diameter
165mm 165mm 165mm 165mm
motor
5.5/3Kw 5.5/3Kw 5.5/3Kw 5.5/3Kw
G.W.
3500Kg 3800Kg 3300Kg 2800Kg
size(L×W×H)
4100×900×1100mm 4100×900×1100mm 3600×900×1100mm 2500×860×950mm
