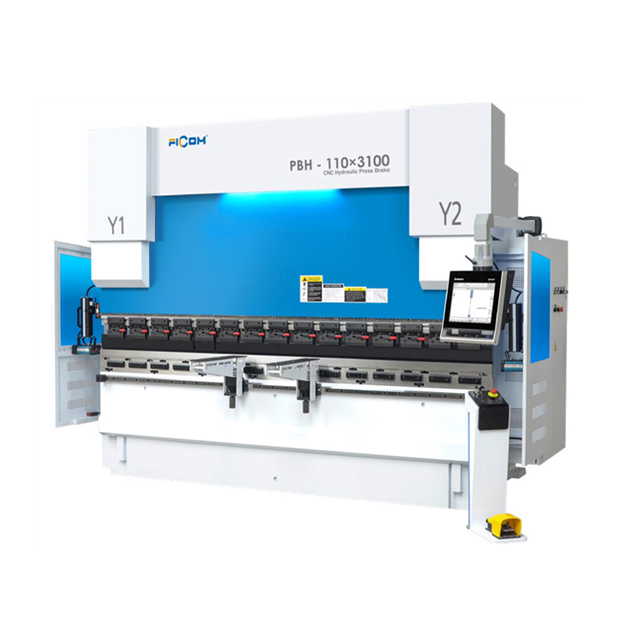

Press Brake Axes: The Core of Precision and Efficiency in Metal Bending

When it comes to sheet metal bending, the axes of a press brake are at the heart of achieving precision and efficiency. From basic bends to intricate designs, these axes control the machine’s movements and adjustments, transforming raw materials into perfectly formed parts. Whether you’re operating a simple 2-axis press brake or an advanced multi-axis CNC press brake, understanding how the axes work is essential to achieving consistent, high-quality results.

Each axis plays a vital role in shaping the workpiece by coordinating movement, positioning, and adjustments in harmony. By mastering their functions, you can not only enhance accuracy and productivity but also reduce material waste and easily handle a variety of materials and designs.

Let’s explore how press brake axes can elevate your metalworking operations.

What Is a Press Brake and How Do Axes Work?

A press brake is a machine used to bend sheet metal into specific angles and shapes, while its axes determine the positioning and movement of various components. The number and configuration of these axes directly impact the machine’s ability to perform different tasks, especially those requiring tight tolerances or complex geometries.

Key Press Brake Axes and Their Functions:

· Y-axis (Y1 and Y2): Controls the vertical movement of the ram, which applies bending force.

· X-axis: Manages the horizontal positioning of the back gauge, ensuring precise placement of the sheet metal.

· R-axis: Adjusts the vertical positioning of the back gauge fingers to accommodate different flange heights.

· Z-axis (Z1 and Z2): Enables lateral movement of the back gauge fingers for independent positioning during intricate bends.

· V-axis: Compensates for deflection in the machine bed, ensuring uniform bending angles across the workpiece.

Common Axis Configurations and Their Meanings

The configuration of axes in a press brake determines its ability to handle specific tasks, from simple bends to complex, multi-dimensional shapes. Below are the typical configurations and their applications:

Basic Configurations

2-Axis Press Brake:

o Axes: Y (ram movement) and X (back gauge positioning).

o Application: Ideal for straightforward bending tasks where high precision is not required. This configuration is simple and cost-effective for standard sheet metal operations.

3-Axis Press Brake:

o Axes: Y (ram movement), X (back gauge positioning), and R (vertical back gauge adjustments).

o Application: Adds versatility, allowing for the handling of different sheet metal thicknesses and flange lengths. A 3-axis press brake is well-suited for medium complexity bending tasks, providing flexibility without sacrificing simplicity.

Intermediate Configurations

4+1 Axis Press Brake:

o Axes: Y1 and Y2 (independent ram movement), X (back gauge positioning), R (vertical back gauge adjustments), and V (crowning for compensating deflection).

o Application: Perfect for tasks requiring consistent angles and moderate complexity. The crowning V-axis compensates for deflection in the machine bed, ensuring uniform bending across the length of the workpiece. This configuration is ideal for a range of general manufacturing needs.

6+1 Axis Press Brake:

o Axes: Y1, Y2 (independent ram movement), X (back gauge positioning), R (vertical back gauge adjustments), Z1 and Z2 (lateral back gauge movements), and V (crowning).

o Application: Provides increased flexibility for handling complex and asymmetrical parts. The additional Z1 and Z2 axes allow for independent lateral movement of the back gauge fingers, enabling more intricate and precise bending. Ideal for medium to high complexity applications.

Advanced Configurations

8+1 Axis Press Brake and Beyond:

o Axes: X1, X2, R1, R2, Y1, Y2, Z1, Z2, V, and other possible axes.

o Application: Designed for highly intricate and multi-stage bending processes. These machines are often used in industries like aerospace and automotive, where accuracy, repeatability, and the ability to handle complex geometries are essential. The additional axes offer a high degree of automation, enabling precise adjustments for advanced tasks.

How Software and Control Systems Impact Axis Performance

In addition to mechanical configurations, the software and control systems of a press brake play a crucial role in optimizing axis performance. Here’s how they influence the bending process:

· Precision Control: Modern press brakes often feature CNC (Computer Numerical Control) systems, which offer real-time feedback and precise control over each axis. These systems enhance positioning accuracy, reduce human error, and ensure that each bend meets exact specifications.

· Advanced Programming Features: Software allows for complex multi-step bending programs, enabling automatic adjustments of axis positions without manual intervention. This is particularly beneficial when working with complex parts or high-production runs.

· Optimization Algorithms: Software systems can optimize the sequence and positioning of bends to minimize material waste and improve cycle times. This is especially important in high-volume manufacturing environments where efficiency is key.

· Automated Calibration: Some advanced control systems automatically calibrate the axes to correct any deflections or inaccuracies in the machine bed. This ensures that the press brake continues to operate within tight tolerances over time.

· Integrated Simulation: Modern software often includes simulation capabilities, allowing operators to visualize the bending process before any physical work is done. This helps avoid costly mistakes and fine-tune the axis settings for maximum efficiency.

How Many Axes Does a Press Brake Need?

The number of axes on a press brake determines its capabilities and flexibility. Here’s an overview of common configurations:

· 2-Axis Press Brake: Ideal for simple bending tasks, typically includes Y and X axes.

· 3-Axis Press Brake: Adds the R-axis to handle varying flange heights.

· 4-Axis Press Brake: Incorporates Y, X, R, and V axes, suitable for moderately complex designs.

· 6-Axis Press Brake and Beyond: Designed for high-precision and multi-stage bending, perfect for complex geometries.

How to Choose the Right Press Brake Axis Configuration

Selecting the right axis configuration depends on several factors:

1. Application Requirements: Simple tasks can be handled with fewer axes, while intricate designs require multi-axis capabilities.

2. Material Type and Thickness: Heavier or harder materials may demand more advanced axis configurations for precise results.

3. Budget Considerations: The number of axes impacts the cost of the press brake, but investing in additional axes often results in greater flexibility and efficiency.

Balancing Cost and Capability
At JSC, we offer a range of press brake solutions, from basic 2-axis machines to advanced multi-axis CNC systems. Our team works closely with clients to find the perfect balance between cost and operational requirements.

Technical Parameters

What Are Some Common Problems and Defects with Press Brake Axes?

Press brake axes, like any mechanical system, can experience issues over time. Identifying and addressing common problems can help ensure smooth operation and extend the lifespan of your machine. Here are some of the most common issues:

· Misalignment: Over time, the axes of a press brake can become misaligned, which leads to inaccuracies in bending. This is especially problematic for high-precision tasks. Regular calibration and maintenance can help avoid this issue.

· Back Gauge Issues: Problems with the back gauge, such as inaccurate positioning or sluggish movement, can result in improper material placement and poor-quality bends. This can be caused by mechanical wear, dust accumulation, or issues with the back gauge motor.

· Axis Sticking or Jamming: If any of the axes (Y, X, R, etc.) become stuck or fail to move smoothly, it can halt production and cause damage to the machine. This often results from inadequate lubrication or debris in the system.

· Inconsistent Bending: Variability in the bending angle across the workpiece is often caused by deflection in the machine bed or inconsistent ram movement. A V-axis or crowning feature can compensate for this, but frequent checks for deflection should be conducted.

· Software Glitches: CNC-controlled systems are vulnerable to software malfunctions, which may cause incorrect axis positioning or failure to follow the programmed bending sequence. Regular software updates and system diagnostics can mitigate this issue.

· Worn Components: Over time, components such as ball screws, motors, or guide rails may wear out, leading to reduced accuracy and slower operation. Periodic inspections and replacements are essential to maintaining optimal performance.

Maintaining Press Brake Axes for Optimal Performance

Proper maintenance ensures the longevity and reliability of your press brake’s axis system. Here are some essential tips:

· Regularly lubricate moving components to prevent wear and tear.

· Periodically calibrate the axes to maintain accuracy.

· Keep the machine clean to avoid dust or debris interfering with the system.

Why Choose JSC Press Brakes?

With over 20 years of industry experience, JSC is a trusted global provider of metalworking machinery, offering everything from single machines to complete production lines. Our press brakes feature advanced multi-axis control technology, customizable configurations, and undergo rigorous inspections to ensure reliability and precision.

Whether you need a straightforward 2-axis press brake or a high-performance multi-axis CNC press brake, JSC delivers tailored solutions to meet your specific requirements. Let us help you take your metalworking operations to the next level.
