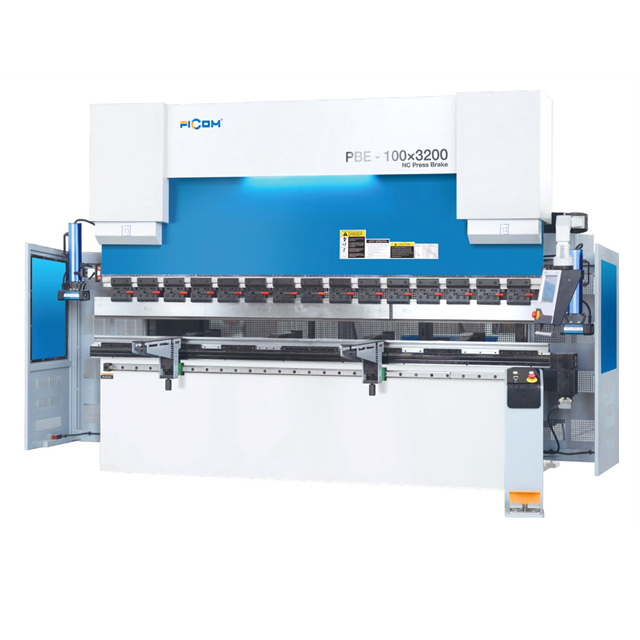

Precision Angle Bending with Hydraulic Press Brake: Accuracy in Every Stroke

Hydraulic press brakes are engineered for high-accuracy bending, making them essential in industries where precision is non-negotiable. Unlike mechanical alternatives, a hydraulic press brake offers superior control over bending angles, allowing operators to achieve exact specifications even with complex part geometries.

How Angle Control Works in Hydraulic Press Brakes

Modern hydraulic press brakes utilize advanced proportional valve systems and linear encoders to monitor and adjust ram position in real time. This ensures each stroke delivers uniform pressure, minimizing angular deviation. The result is repeatable, accurate bending — critical for maintaining quality in batch production.

Proportional Hydraulic System

The proportional valve system adjusts fluid flow dynamically to maintain ram synchronization. This allows precise positioning even under variable loads, critical for maintaining bending angle accuracy on asymmetric or offset parts.

Linear Scales and Backgauge Feedback

High-resolution linear scales detect ram movement down to microns. Coupled with a programmable backgauge system, the hydraulic press brake can bend within ±0.3° tolerance — a benchmark for aerospace and precision sheet metal sectors.

Benefits of Precise Angle Bending

Precision angle bending offers significant advantages:

Consistent Product Quality: Ensures dimensional uniformity across batches.

Reduced Waste: Eliminates the need for rework or material overcompensation.

Enhanced Fit and Function: Parts integrate seamlessly with assembly components.

Compliance with Industry Standards: Meets ISO and ASTM tolerances for angular accuracy.

Application Scenarios for High-Precision Bending

Aerospace Components

Aircraft structural parts demand tight angular tolerances to ensure load-bearing reliability and aerodynamic performance. Hydraulic press brakes with angle control enable consistent fabrication of ribs, spars, and brackets.

Stainless Steel Enclosures

In electrical and food-grade enclosures, precise bends are crucial for sealing, fitting, and aesthetics. Hydraulic press brakes provide the stability and control needed to avoid spring-back and distortion, especially in stainless materials.

Architectural Metalwork

From decorative façades to structural trims, architecture relies on consistent angles. The precision offered by hydraulic press brakes ensures flawless, repeatable bending for high-end architectural finishes.

Enhancing Accuracy Through Tooling and Setup

Tooling has a direct impact on angle consistency. Precision-ground punches and dies reduce angular variation, especially during coining operations. Additionally, hydraulic crowning systems counteract machine deflection, enabling full-length uniformity across long workpieces.

Maintenance Practices to Sustain Precision

To maintain high angle accuracy:

Calibrate Linear Scales regularly

Check Hydraulic Fluid Viscosity for stable response

Inspect Tool Alignment to prevent offset angles

Clean Backgauge Guides to retain precise positioning

FAQs

How does a hydraulic press brake maintain bending angle accuracy?

It uses proportional valve systems, real-time feedback from linear scales, and precise ram synchronization to maintain angle accuracy within tight tolerances.

Why is angular precision important in press brake applications?

Angular precision ensures parts fit together correctly in assemblies, reduces waste, and complies with industry quality standards like ISO 2768 and ASTM A568.

Can a hydraulic press brake compensate for material springback?

Yes, through programmable angle correction and crowning systems, the machine can adapt to different material behaviors and still deliver accurate final angles.

What tools enhance precision in hydraulic press brakes?

Precision-ground punches, multi-V dies, and adjustable crowning tables all help improve angular accuracy by reducing flex and deflection during the bending process.

What industries demand high-accuracy angle bending?

Aerospace, electrical cabinet manufacturing, custom metal fabrication, and architectural metalwork are key sectors where angular precision is critical.
