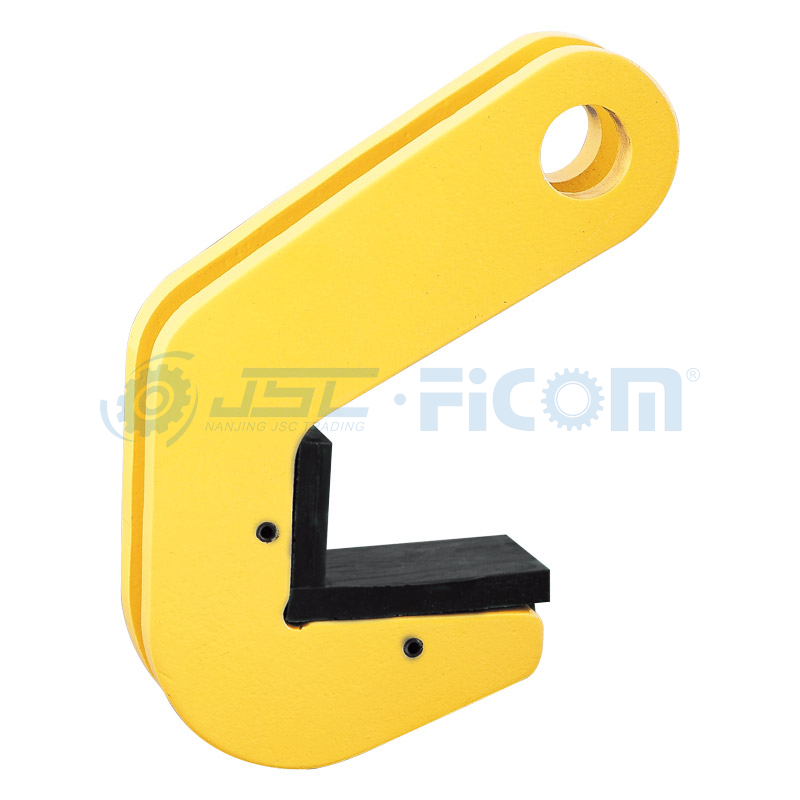

Pipe Lifting Clamp, Item Code: 114### (Capacity: 1500-18000 kg)

For horizontal lifting and transporting of steel and concrete pipes.
Compact shape and relatively low unit weight with a high lifting capacity.
The surface is equipped with special plastic.
Must be used in per pair.
Plastic cover replacement parts are available and easy to change.
Availability:
Quantity:
  • 114###

  • FICOM

Overview

Capacity: 1500-18000 kg

75

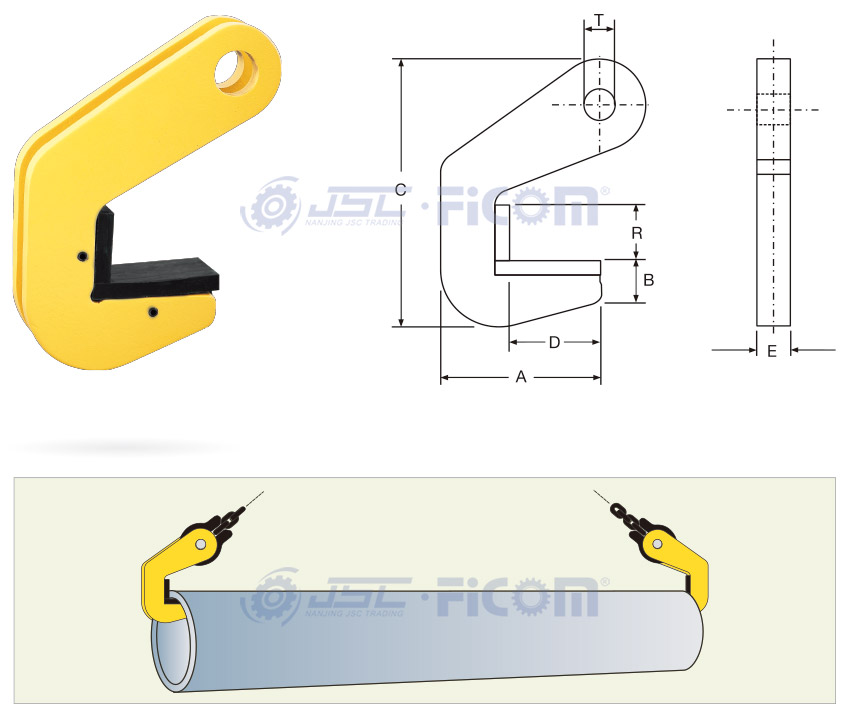

Technical Parameters

Item

Code


Capacity

(pair/kg)


Jaw

Opening

(mm)

Dimensions (mm)

Net

Weight

(kg)

A B C D E T
114015 1500 0-40 120
32 185 70 41 15 1.5
114030 3000 0-40 120
32 185 70 41 15 2
114040 4000 0-50 120
32 195 70 41 26 2.8
114060 6000 0-50 120
32 195 70 41 26 3.2
114080 8000 0-70 120
32 215 70 45 26 3.6
114120 12000 0-70 120
32 215 70 85 26 9.5
114160 16000 0-70 120
32 215 70 100 26 11
114180 18000 0-70 120
32 215 70 100 26 13
