Pan Folder Sheet Metal Bending: A Practical Solution for Flexible Sheet Metal Fabrication

For modern sheet metal manufacturers, bending is not simply about creating an angle. Fabricators often need to produce boxes, pans, trays, enclosures, covers, ducts, panels, and customized sheet metal components with different dimensions and bending sequences.

A pan folder sheet metal bending machine provides a practical solution for these applications. Also known as a pan brake, box and pan folder, or sheet metal folder, this type of machine is designed to clamp and fold sheet metal along defined bending lines. With segmented fingers, operators can also create more complex box-shaped and tray-shaped components.

For manufacturers looking for flexible sheet metal forming equipment, JSC provides pan folder solutions designed to support different production requirements.

What Is a Pan Folder for Sheet Metal Bending?

A pan folder is a sheet metal bending machine that uses a clamping beam and folding beam to form bends in metal sheets.

Unlike conventional bending equipment that relies primarily on upper and lower tooling, a box and pan folder uses removable or segmented fingers. These fingers can be rearranged according to the workpiece geometry, making it possible to bend sections that would otherwise interfere with the clamping beam.

This design makes pan folders particularly useful for:

· Sheet metal boxes

· Pans and trays

· Electrical enclosures

· HVAC components

· Covers and panels

· Metal cabinets

· Ductwork

· Custom fabricated parts

The machine can therefore provide flexibility when production involves different workpiece shapes and relatively frequent product changes.

Why Pan Folder Sheet Metal Bending Matters

Many fabrication shops face a combination of challenges: different part sizes, frequent changeovers, limited skilled labor, and increasing requirements for consistent bending quality.

A suitable pan folder can help address these production needs through a straightforward bending process.

Flexible Workpiece Formation

The segmented fingers can be configured for different workpiece dimensions. This is especially useful when manufacturing boxes, trays, channels, and other components with multiple flanges.

Efficient Setup for Different Jobs

When production involves multiple part designs, tooling flexibility becomes important. Adjustable or segmented clamping components can simplify the transition between different bending configurations.

Suitable for Box and Pan Applications

The name “box and pan folder” reflects one of its main advantages: the ability to form sheet metal into box, pan, and tray shapes.

Manual or Hydraulic Configurations

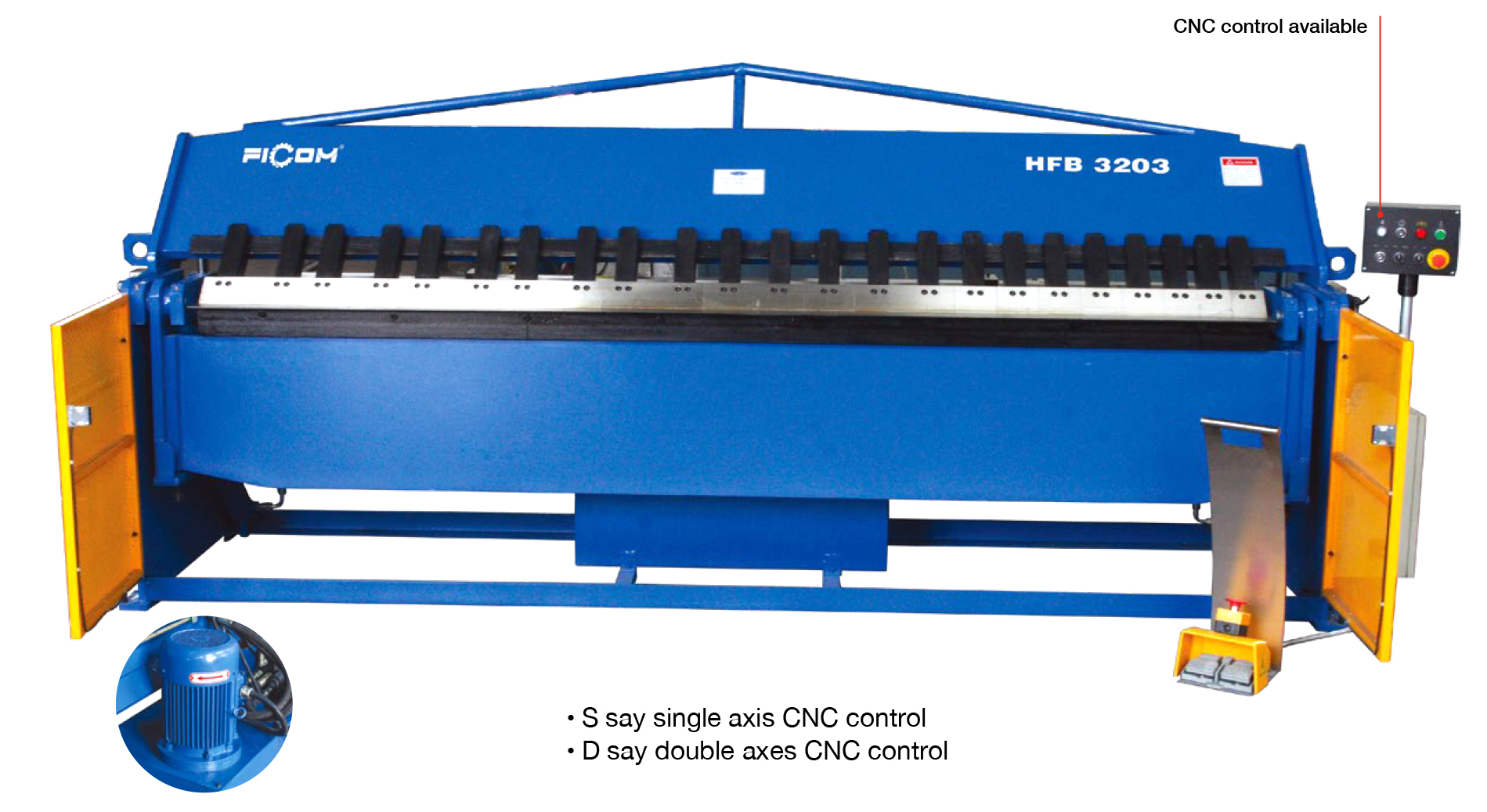

Pan folders are available in different configurations, from compact manual machines to hydraulic and CNC-controlled systems. Hydraulic versions can use powered clamping and folding beams for heavier-duty production, while CNC systems can add programmable control for bending angle and back gauge positioning.

Key Factors When Choosing a Pan Folder Sheet Metal Bending Machine

Choosing a pan folder should start with the actual production requirements rather than machine size alone.

Bending Length

The maximum working length determines the largest sheet width that can be processed in a single operation.

For manufacturers producing larger panels, cabinets, duct components, or long covers, sufficient bending length is essential.

Material Thickness

The required bending capacity should match the materials being processed. Mild steel, stainless steel, aluminum, and galvanized sheet can have different forming characteristics.

Manufacturers should evaluate the actual material type and thickness used in daily production before selecting the machine.

Finger Configuration

Segmented fingers provide flexibility for box and pan bending. Different finger widths and configurations can influence the types of workpieces that can be produced.

For manufacturers handling multiple product designs, a flexible finger arrangement can be particularly valuable.

Bending Angle

Different applications require different bending angles and sequences. Depending on the machine configuration, pan folders can support a wide range of bending operations. Some hydraulic models, for example, specify folding ranges up to 120°.

Control System

For simple fabrication, manual operation may be sufficient.

For higher-volume or repeat production, digital or CNC control can help improve process consistency. CNC folding systems can control parameters such as bending angle and back gauge position, reducing repeated manual adjustments.

Pan Folder vs. Conventional Press Brake

Both pan folders and press brakes are widely used for sheet metal bending, but their structures and typical applications are different.

A press brake is commonly selected for applications requiring high forming force, complex tooling configurations, or heavy-duty production.

A pan folder, meanwhile, is particularly attractive when manufacturers frequently produce boxes, trays, enclosures, panels, and components requiring multiple flanges.

The right choice depends on:

· Material thickness

· Part dimensions

· Bend geometry

· Production volume

· Required automation

· Changeover frequency

· Product mix

For some fabrication shops, these machines can complement rather than replace each other.

Improving Sheet Metal Bending Efficiency

Efficient bending is influenced by more than machine speed.

A well-organized bending process should consider material preparation, workpiece positioning, bending sequence, finger configuration, operator handling, and quality inspection.

For repeat production, programmable controls can help reduce repeated parameter setting. For customized fabrication, flexible tooling and finger arrangements can help operators adapt to different part geometries.

Hydraulic pan folders can also provide powered clamping and folding, making them suitable for applications requiring more consistent operation and heavier-duty production.

Applications of Pan Folder Sheet Metal Bending

Pan folder machines can be used across a wide range of sheet metal fabrication applications.

Typical applications include:

HVAC Manufacturing
Forming ducts, covers, channels, and other sheet metal components.

Electrical Enclosures
Producing cabinets, boxes, covers, and enclosure panels.

General Fabrication
Supporting customized sheet metal parts for different industrial applications.

Metal Cabinets and Equipment Housings
Creating panels and folded structures with multiple flanges.

Custom Box and Tray Production
Producing different box and tray dimensions without relying on a single fixed configuration.

The flexibility of the folding process makes pan folders useful for both standard production and customized fabrication.

Why Choose JSC for Sheet Metal Bending Solutions?

JSC provides metalworking machinery for manufacturers looking for practical and flexible production solutions.

For pan folder sheet metal bending, the focus is not only on machine specifications but also on matching the equipment configuration to the customer's actual application.

Depending on production requirements, factors such as working length, material thickness, finger configuration, hydraulic operation, back gauge, and CNC control can be considered when selecting a suitable solution.

For manufacturers expanding their sheet metal fabrication capabilities, JSC can provide equipment solutions for different production environments and application requirements.

FAQ About Pan Folder Sheet Metal Bending

What is a pan folder used for?

A pan folder is used to bend and fold sheet metal into shapes such as boxes, pans, trays, panels, cabinets, and other fabricated components.

What is the difference between a pan folder and a press brake?

A pan folder uses a clamping beam and folding beam and is particularly suitable for box, pan, tray, and multi-flange applications. A press brake generally uses punch-and-die tooling and is widely used for high-force and more complex bending operations.

Can a pan folder bend stainless steel?

Yes, depending on the machine's rated capacity and configuration. Material type, thickness, bending length, and required bend geometry should be considered before selecting the machine.

Is a hydraulic pan folder suitable for production?

Hydraulic pan folders can be suitable for production environments where powered clamping and folding are required. Some configurations also provide CNC control for bending angle and back gauge positioning.

How do I choose the right pan folder?

Consider the material thickness, maximum sheet width, bending angle, workpiece geometry, production volume, finger configuration, and required level of automation.

JSC Pan Folder Sheet Metal Bending Solutions

If your production requires flexible sheet metal bending for boxes, trays, panels, enclosures, ducts, or customized components, a pan folder sheet metal bending machine can provide a practical approach to improving fabrication flexibility and process consistency.

JSC can help you evaluate the appropriate machine configuration based on your material, dimensions, bending requirements, and production needs.
