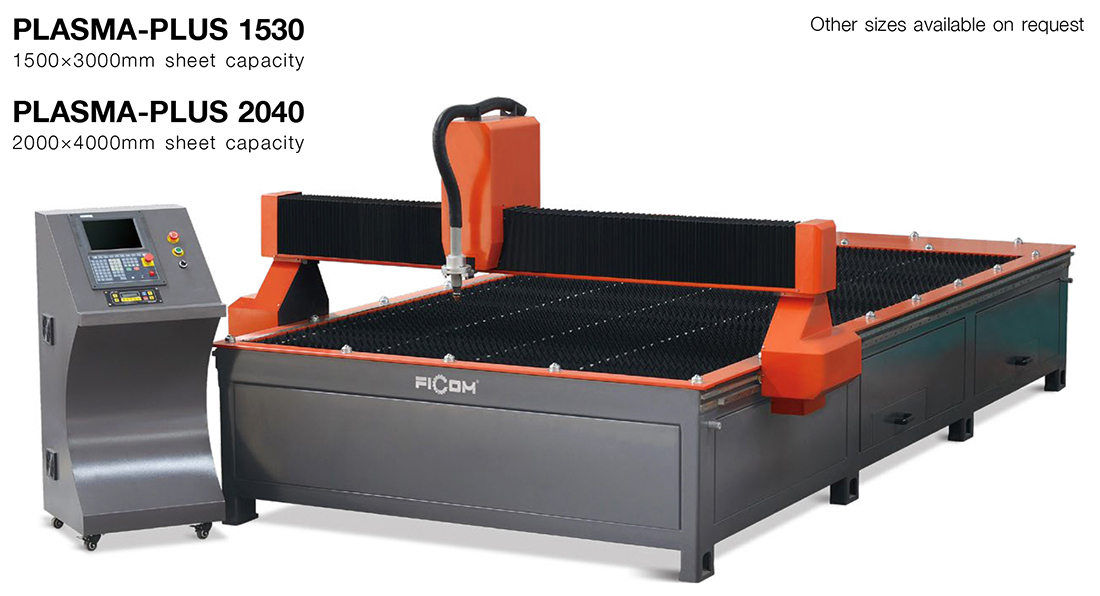

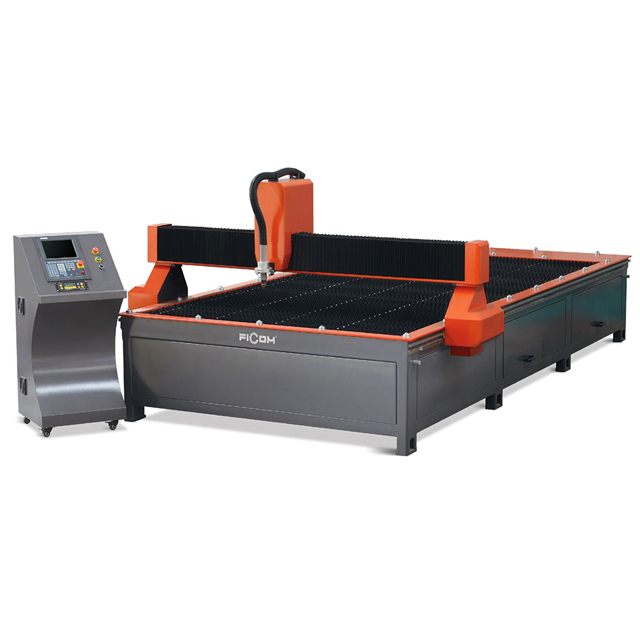

PLASMA PLUS 1530 / PLASMA PLUS 2040
FICOM
PLASMA PLUS 1530
1500×3000mm sheet capacity
PLASMA PLUS 2040
2000×4000mm sheet capacity
* Other sizes available on request
Work Table & Gantry
· 1500×3000mm, or 2000×4000mm sheet capacity (other sizes available)
· Dual rack and pinion drives
· 10,000mm/min rapid travel
· 50-8,000mm/min cutting speed
· 150mm z-axis travel
· 300mm inbuilt dust extraction fan
· Hiwin linear guides (Taiwan)
· Roller balls to assist with material loading and unloading
Plasma Source & Cutting Capacity
· Hyperther Powermax plasma source. The world standard in plasma cutting technology
· 45A, 65A, 85A, 105A and 125A options available with pierce and cutting up to 44mm mild steel
Cutting Head
· Hypertherm cutting torch
· 45 degrees right and left tilt
· THC height sensor (Torch Height Control)
CNC Software
· Fastcam Professional (Auto-Nesting)
· Fontgen module (for simple alpha-numeric character programming)
· Save drawings to USB
· All popular DXF and DWG files suppotred
CNC Control
· Starfire CNC
· 8” LCD colour display
· USB input
· Mobile console
· Template library for quick and easy cutting of stardard shapes and angles
· Real-time cutting path
The Chinese brand in plasma cutting technology

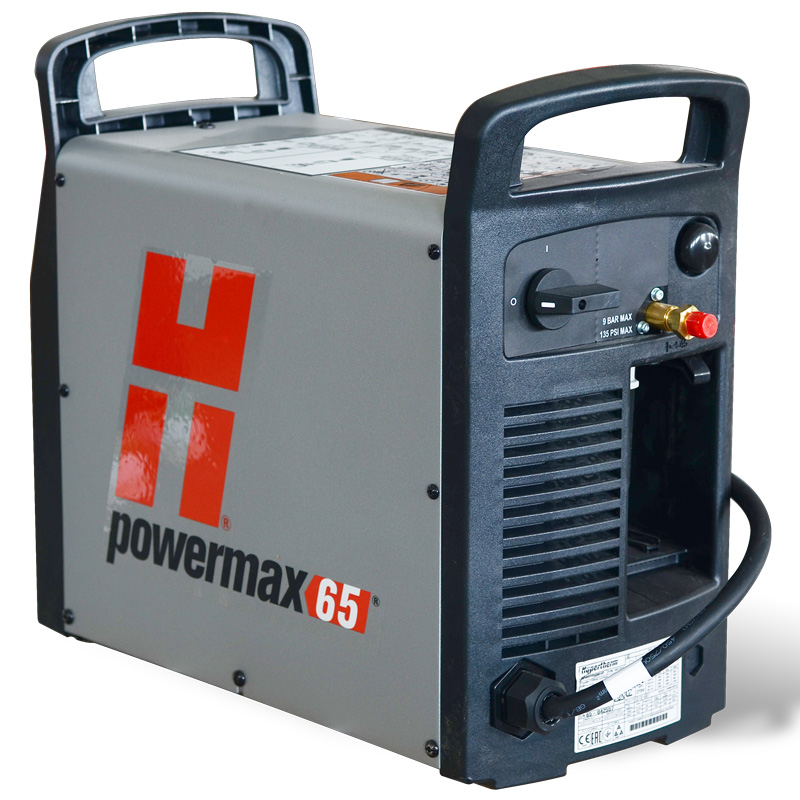

PLASMA PLUS cutting systems include a Hypertherm powermax plasma source. Hypertherm are the industry standard in plasma cutting technology so you know you are investing in a tried and tested system that won’t let you down. We will match the capacity of the plasma source to your needs and your budget. |
Fastcam is a world leading in profiling software and with the professional package, auto-nesting function is included to allow you to save time and maximise value from every sheet that you cut.
|
Hypertherm Power max Cutting Capacities (mild steel)
| Model | Powermax 45 | Powermax 65 | Powermax 85 | Powermax 105 | Powermax 125 |
| Power | 45 Amp | 65 Amp | 85 Amp | 105 Amp | 125 Amp |
| Pierce & Cut | 12 mm | 16 mm | 20 mm | 22 mm | 25 mm |
| Edge Cut | 15-20 mm | 20-25 mm | 25-32 mm | 32-38 mm | 38-44 mm |
Hypertherm Power max Cutting Capacities (stainless steel)
| Model | Powermax 45 | Powermax 65 | Powermax 85 | Powermax 105 | Powermax 125 |
| Power | 45 Amp | 65 Amp | 85 Amp | 105 Amp | 125 Amp |
| Pierce & Cut | 8 mm | 10 mm | 12 mm | 16 mm | 18 mm |
| Edge Cut | 10-12 mm | 12-16 mm | 16-20 mm | 20-22 mm | 25-30 mm |
