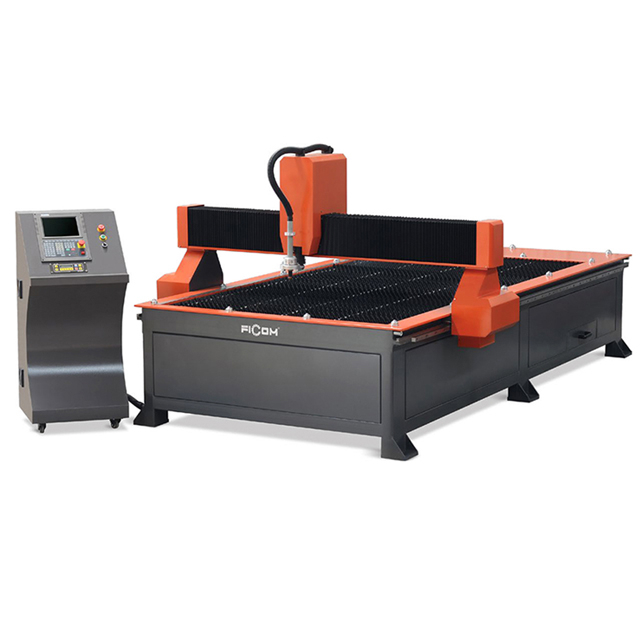

PLASMA ECO 1530 / PLASMA ECO 2040
FICOM
PLASMA ECO 1530
1500×3000mm sheet capacity
PLASMA ECO 2040
2000×4000mm sheet capacity
* Other sizes available on request
Work Table & Gantry
· 1500×3000mm, or 2000×4000mm sheet capacity (other sizes available)
· Dual rack and pinion drives
· 10,000mm/min rapid travel
· 50-8,000mm/min cutting speed
· 150mm z-axis travel
· 300mm inbuilt dust extraction fan
· Hiwin linear guides (Taiwan)
· Roller balls to assist with material loading and unloading
Plasma Source & Cutting Capacity
· Chinese brand LGK
· 63A, 100A, 160A, 200A options available with pierce and cutting up to 30mm mild steel
Cutting Head
· LGK cutting torch
· 45 degrees right and left tilt
· THC height sensor (Torch Height Control)
CNC Software
· Fastcam Professional (Auto-Nesting)
· Fontgen module (for simple alpha-numeric character programming)
· Save drawings to USB
· All popular DXF and DWG files suppotred
CNC Control
· Starfire CNC
· 8" LCD colour display
· USB input
· Mobile console
· Template library for quick and easy cutting of stardard shapes and angles
· Real-time cutting path
LGK Power The Chinese brand in plasma cutting technology
PLASMA ECO could choose LGK plasma power source from China,LGK plasma power is famouse in the Chinese plasma cutting technology,also well used all over the world.LGK plasma power is the well known by their economic and stablity. |
Fastcam is a world leading in profiling software and with the professional package, auto-nesting function is included to allow you to save time and maximise value from every sheet that you cut.
|
LGK Power max Cutting Capacities (mild steel)
| Model | LGK63 | LGK100 | LGK160 | LGK200 |
| Pierce & Cut | 6mm | 12mm | 15mm | 25mm |
| Edge Cut | 10-12mm | 12-22mm | 22-25mm | 25-30mm |
