PLAS PRO 1530 / PLAS PRO 2040
FICOM

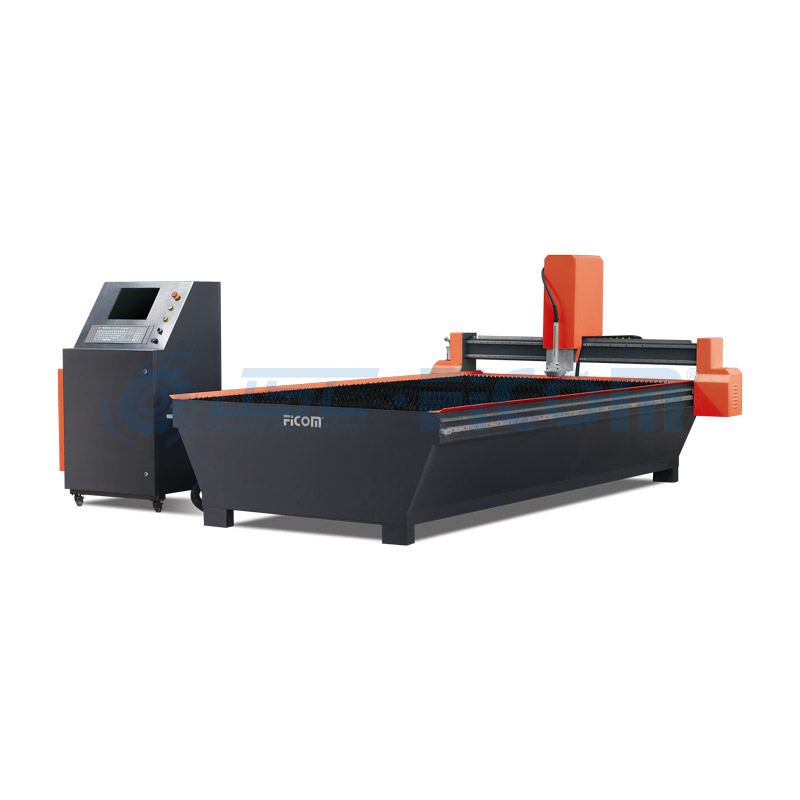

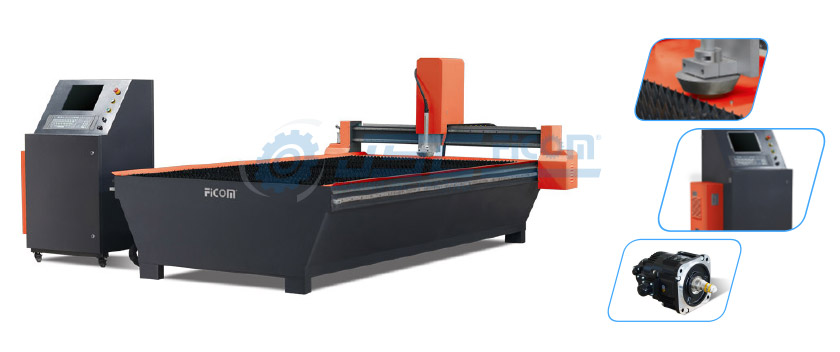

PLAS PRO 1530
1500×3000mm sheet capacity
PLAS PRO 2040
2000×4000mm sheet capacity
* Other sizes available on request
Work Table & Gantry
· 1500×3000mm, or 2000×4000mm sheet capacity (other sizes available)
· Dual rack and pinion drives
· 20,000mm/min rapid travel
· 500-18,000mm/min cutting speed
· 150mm z-axis travel
· 300mm inbuilt dust extraction fan
· Hiwin linear guides (Taiwan)
· Roller balls to assist with material loading and unloading
Plasma Source & Cutting Capacity
· Hyperther Powermax plasma source. The world standard in plasma cutting technology
· 45A, 65A, 85A, 105A and 125A options available with pierce and cutting up to 44mm mild steel
Cutting Head
· Hypertherm cutting torch
· 45 degrees right and left tilt
· THC height sensor (Torch Height Control)
CNC Software
· Fastcam Professional (Auto-Nesting)
· Fontgen module (for simple alpha-numeric character programming)
· Save drawings to USB
· All popular DXF and DWG files suppotred
CNC Control
· Starfire CNC
· 8” LCD colour display
· USB input
· Mobile console
· Template library for quick and easy cutting of stardard shapes and angles
· Real-time cutting path
The world leader in plasma cutting technology
PLAS PRO cutting systems include a Hypertherm powermax plasma source. Hypertherm are the industry standard in plasma cutting technology so you know you are investing in a tried and tested system that won’t let you down. We will match the capacity of the plasma source to your needs and your budget. |

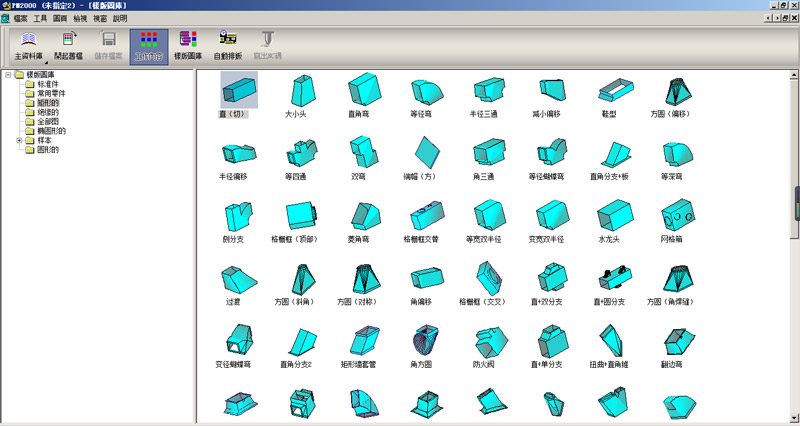

The PM2000 System has been designed to draw, nest and cut metal piple as simply and efficiently as possible. Ease of use is as important as the high levels of materials utilisation and optimisation the software provides. Draw, Path, Nest and cut from the one system. Or use with your existing design system for independent post processing and nesting. Easy Editing & Verification of geometry combined with one step nesting makes the system instantly productive.
|
Hypertherm Power max Cutting Capacities (mild steel)
| Model | Powermax 45 | Powermax 65 | Powermax 85 | Powermax 105 | Powermax 125 |
| Power | 45 Amp | 65 Amp | 85 Amp | 105 Amp | 125 Amp |
| Pierce & Cut | 12 mm | 16 mm | 20 mm | 22 mm | 25 mm |
| Edge Cut | 15-20 mm | 20-25 mm | 25-32 mm | 32-38 mm | 38-44 mm |
Hypertherm Power max Cutting Capacities (stainless steel)
| Model | Powermax 45 | Powermax 65 | Powermax 85 | Powermax 105 | Powermax 125 |
| Power | 45 Amp | 65 Amp | 85 Amp | 105 Amp | 125 Amp |
| Pierce & Cut | 8 mm | 10 mm | 12 mm | 16 mm | 18 mm |
| Edge Cut | 10-12 mm | 12-16 mm | 16-20 mm | 20-22 mm | 25-30 mm |
