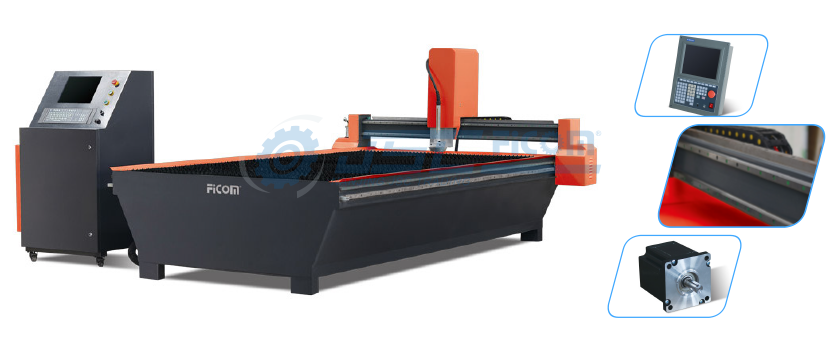

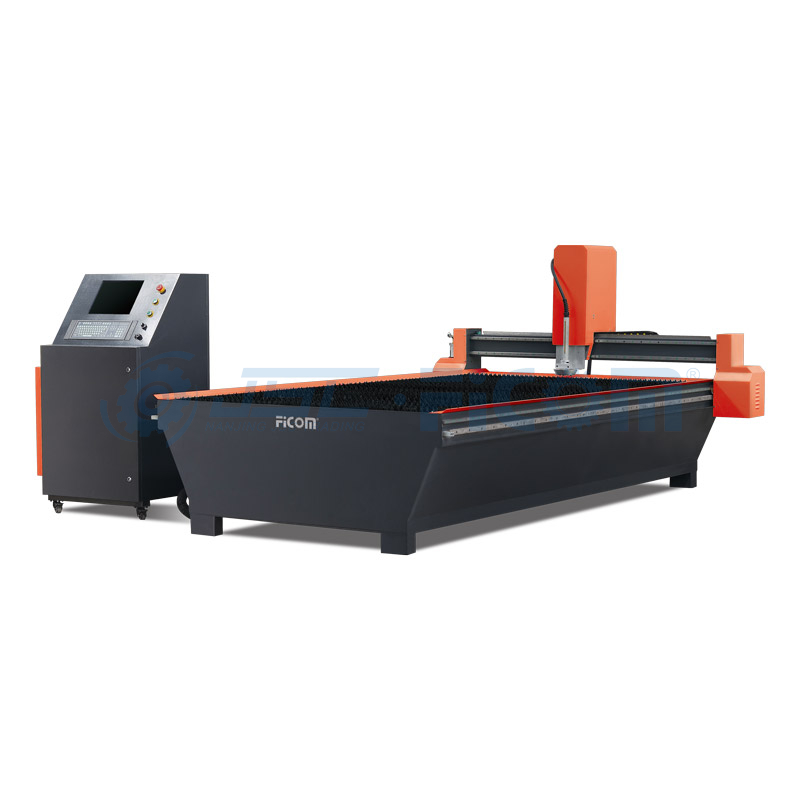

PLAS 1530
1500×3000mm sheet capacity
PLAS 2040
2000×4000mm sheet capacity
* Other sizes available on request
Work Table & Gantry
· 1500×3000mm, or 2000×4000mm sheet capacity (other sizes available)
· Dual rack and pinion drives
· 10,000mm/min rapid travel
· 500-8,000mm/min cutting speed
· 150mm z-axis travel
· 300mm inbuilt dust extraction fan
· Hiwin linear guides (Taiwan)
· Roller balls to assist with material loading and unloading
Plasma Source & Cutting Capacity
· Chinese brand LGK
· 63A, 100A, 160A, 200A options available with pierce and cutting up to 30mm mild steel
Cutting Head
· LGK cutting torch
· 45 degrees right and left tilt
· THC height sensor (Torch Height Control)
CNC Software
· PM2000 Professional (Auto-Nesting)
· Fontgen module (for simple alpha-numeric character programming)
· Save drawings to USB
· All popular DXF and DWG files suppotred

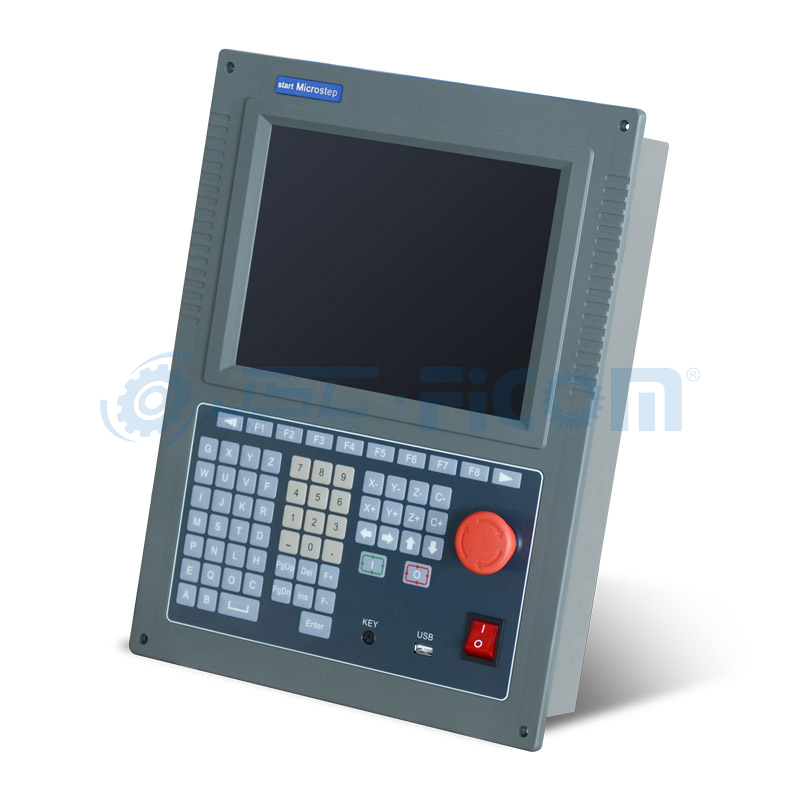

CNC Control
· Starfire CNC
· 8” LCD colour display
· USB input
· Mobile console
· Template library for quick and easy cutting of stardard shapes and angles
· Real-time cutting path

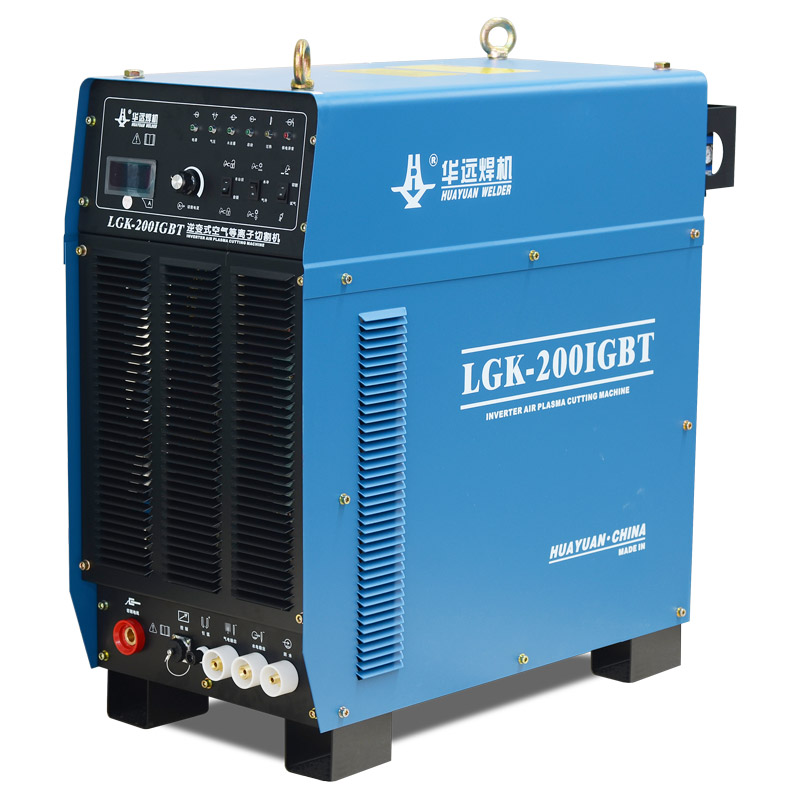

LGK Power The Chinese brand in plasma cutting technology
PLAS could choose LGK plasma power source from China,LGK plasma power is famouse in the Chinese plasma cutting technology,also well used all over the world.LGK plasma power is the well known by their economic and stablity. |

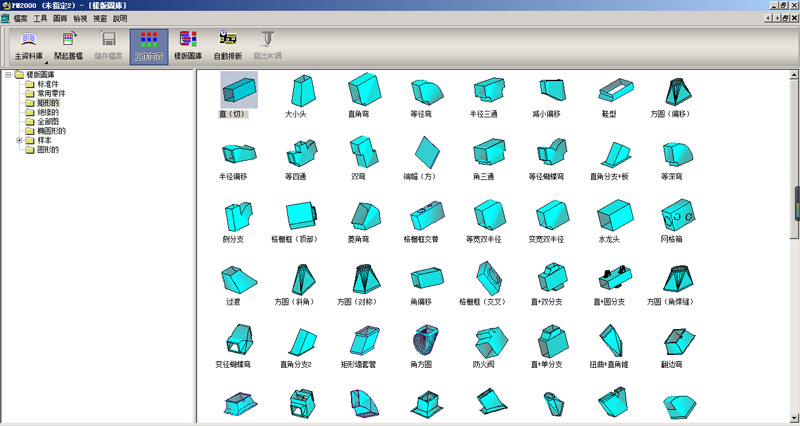

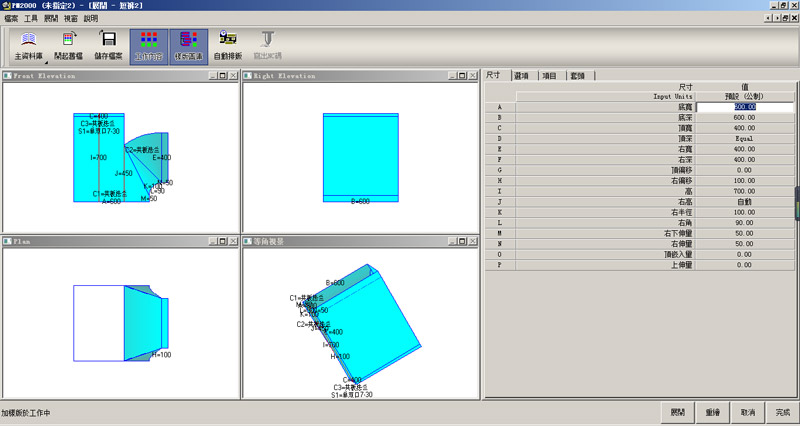

The PM2000 System has been designed to draw, nest and cut metal piple as simply and efficiently as possible. Ease of use is as important as the high levels of materials utilisation and optimisation the software provides. Draw, Path, Nest and cut from the one system. Or use with your existing design system for independent post processing and nesting. Easy Editing & Verification of geometry combined with one step nesting makes the system instantly productive.
|
LGK Power max Cutting Capacities (mild steel)
Model | LGK63 | LGK100 | LGK160 | LGK200 |
Pierce & Cut | 6mm | 12mm | 15mm | 25mm |
Edge Cut | 10-12mm | 12-22mm | 22-25mm | 25-30mm |
