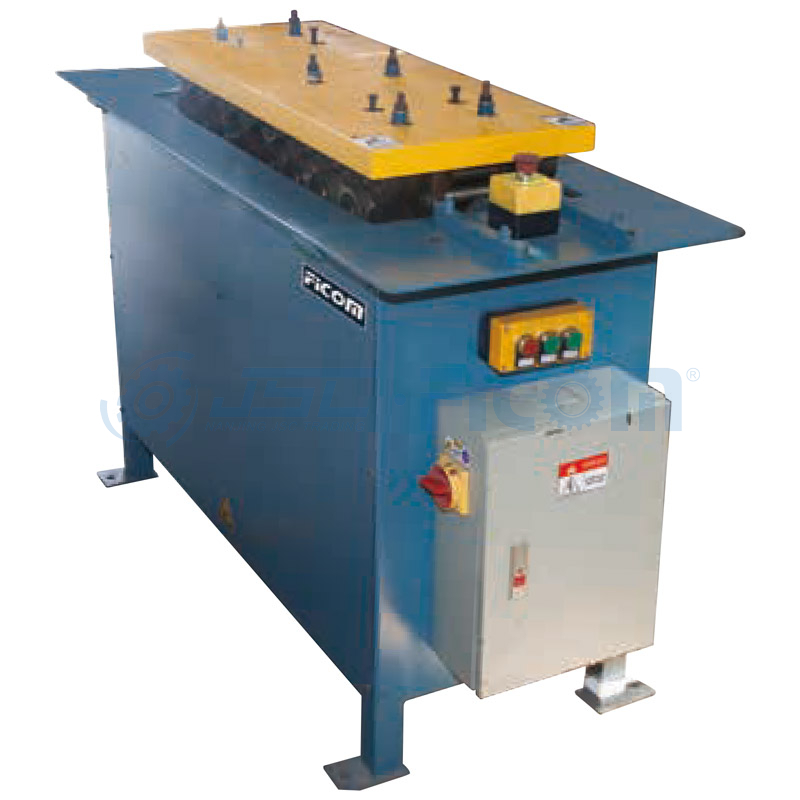

PL Pittsburgh-lock Machine

Duct Pittsburgh-lock machine is the most widely used and most important in duct make industry. JSC company can supply nice lock forming machine. Our product use good material, good components and hardened and ground roll shafts. All of this can make sure machines with high quality, It will make you cost saving. FICom can supply all kinds of Lock forming machine, We also can design special lock forming machine base on the customer’s request.

Quantity:
  • PL
  • FICOM
Overview

Pittsburgh Lock Profile:

092

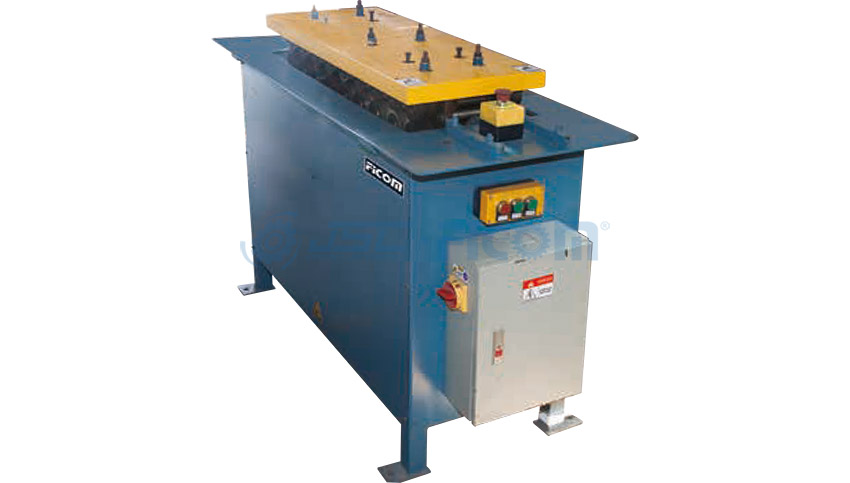

09


Technical Parameters
Model

Motor

(kw)

Capacity

(mm)

Shapes

Weight

(kg)

Dimension

PL-20 1.5 0.3-1.0 01 200 1250×570×1000
PL-22 2.2 0.5-1.2 02 280 1450×570×950
PL-20R 1.5 0.3-1.0 03 200 1250×570×1000
PL-22R 2.2 0.5-1.2 04 280 1450×570×1050
PL-20CR 1.5 0.3-1.0C < 0.8 05 220 1250×570×1000
PL-22CR 2.2 0.5-1.2C < 0.8 06 250 1450×570×1000
PL-20F 1.5 0.3-1.0 07 200 1250×570×1000
PL-22F 2.2 0.5-1.2 08 250 1450×570×1000
PL-20BP 1.5 0.3-1.0 09 250 1450×570×1000
PL-22C 2.2 0.5-1.2C < 0.8 10 220 1450×570×1000
PL-22D 2.2 0.5-1.2C < 0.8 11 280 1450×570×1000
PL-22DR 2.2 0.5-1.2C < 0.8 12 380 1450×570×1000
PL-22CPS 2.2 0.5-1.2C < 0.8 13 400 2300×700×1100
PL-25 2.2 0.7-1.5 14 400 1650×570×900
PL-25R 2.2 0.7-1.5 15 450 1650×570×1050
PL-25C 2.2 0.7-1.5 < 1.0 16 380 1650×570×900
PL-25CR 2.2 0.7-1.5 < 1.0 17 450 1650×570×1050

PL-25F

2.2 0.7-1.5 18 300 1350×570×1000
PL-25DR 2.2 0.5-1.2C < 1.0 19 450 1650×570×950
PL-30 3 1.0-2.0 20 500 1650×570×950
PL-16R 1.5 0.4-1.2 21 150 620×620×930
