PKS
FICOM
Load capacity: Up to 2000 kg

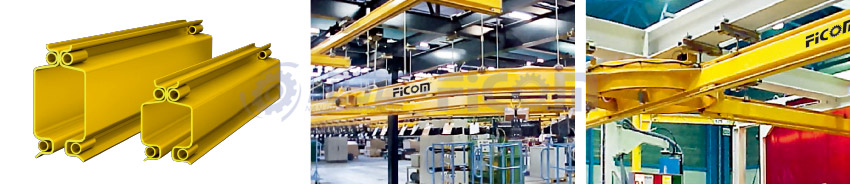

PKS Crane Handling system can be depolyed as flexibly as the individuality of your requirements.This modular system makes it possible to have many different solutions for an ergonomic and efficient working procedure,and is specially adapted to our range of chain hoists.

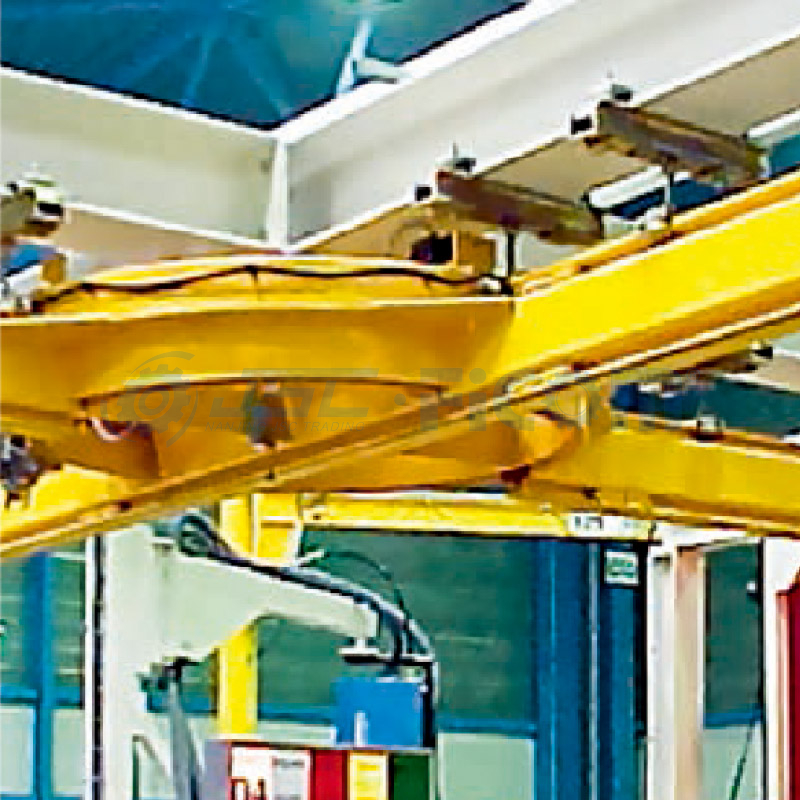

Modern trolleys with nylon wheels
For smooth,quiet load movements,trolleys with narrow nylon wheels are used which are mounted and secured on ball bearings .Depending on the profile thickness, the trolleys are self-centering or equipped with guide rollers which provide perfect horizontal guidance,even on bends.Becauce of the modular design,manual trolleys can be combined with electric trolleys at a later date.It is even possible to combine different profile sizes.

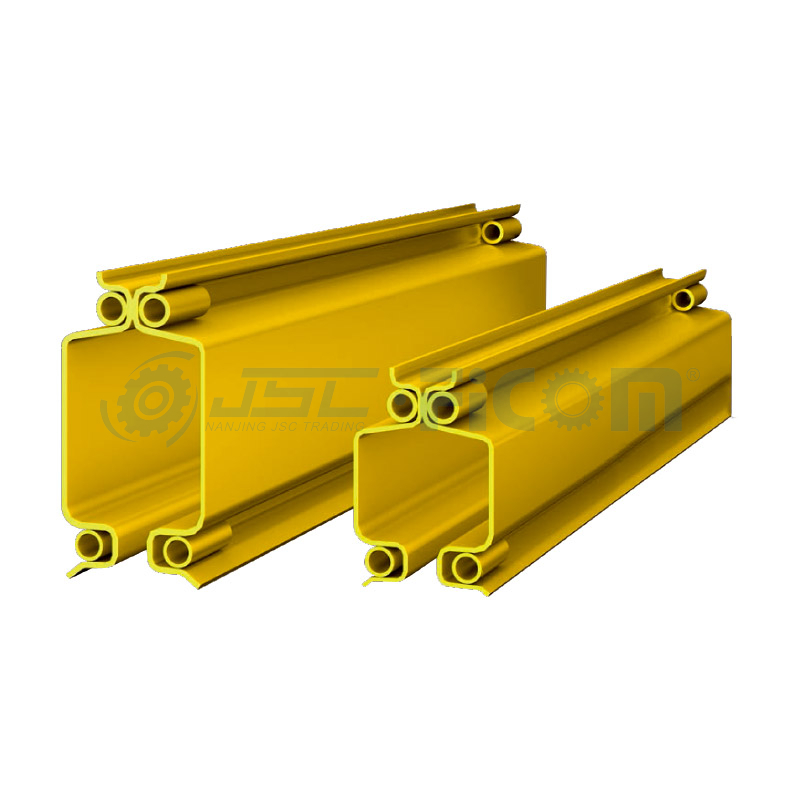

Modular system

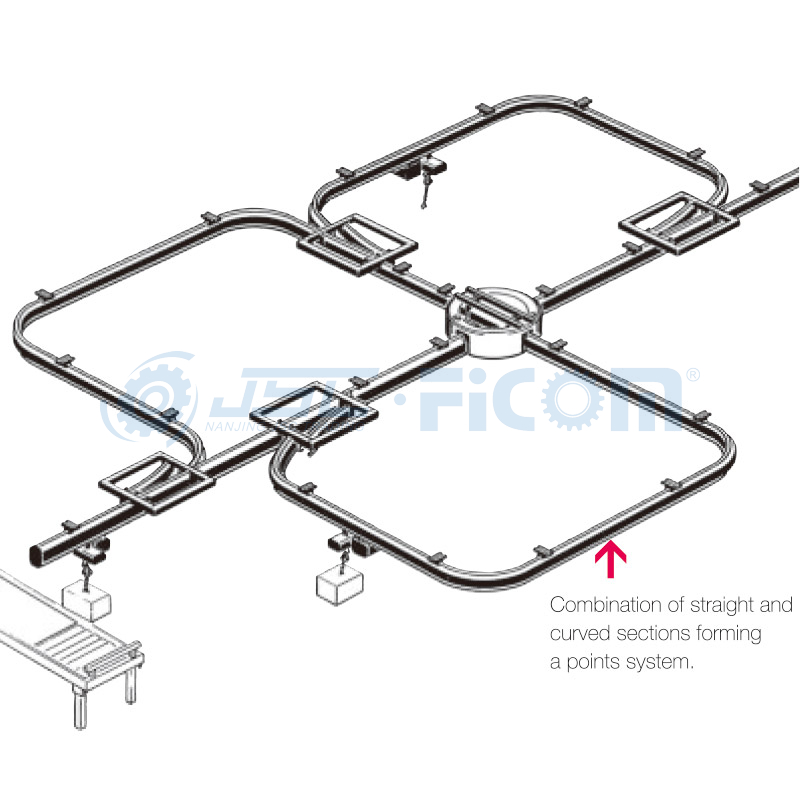

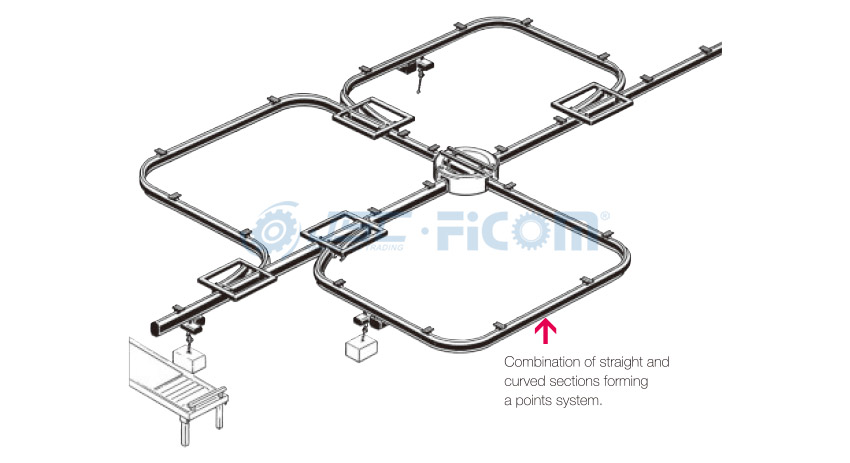

With 2 profile variants,PKS Crane Handling system provides you with load-bearing capacity of up to 2000 kg.The precise workmanship of the PKS profiles and guide elements makes installation easier,and ensures that the profiles are accurately aligned.Single or double girder cranes,monorail and circular tracks and sophisticated solutions with combinations of straight sections,bends,points and turntables can be quickly implemented.
Options
Electric drives with pole changing or infinitely variable
Wide range of different mountings
4 different power supplies availbale,external or external
Freestanding steel gantries
Hot-dip galvanised profiles for special ambient conditions
Type | Load-bearing capacity up to (kg) | Dimensions (mm) | Weight (kg/m) | Straight Profiles | Bends up to 90° | Track Switches | Integrated Conductor Line |
| PKS30 | 2000 | 120×180 | 19.11 | ■ | ■ | ||
| PKS40 | 2000 | 124×245 | 28.88 | ■ | ■ | ■ | ■ |
