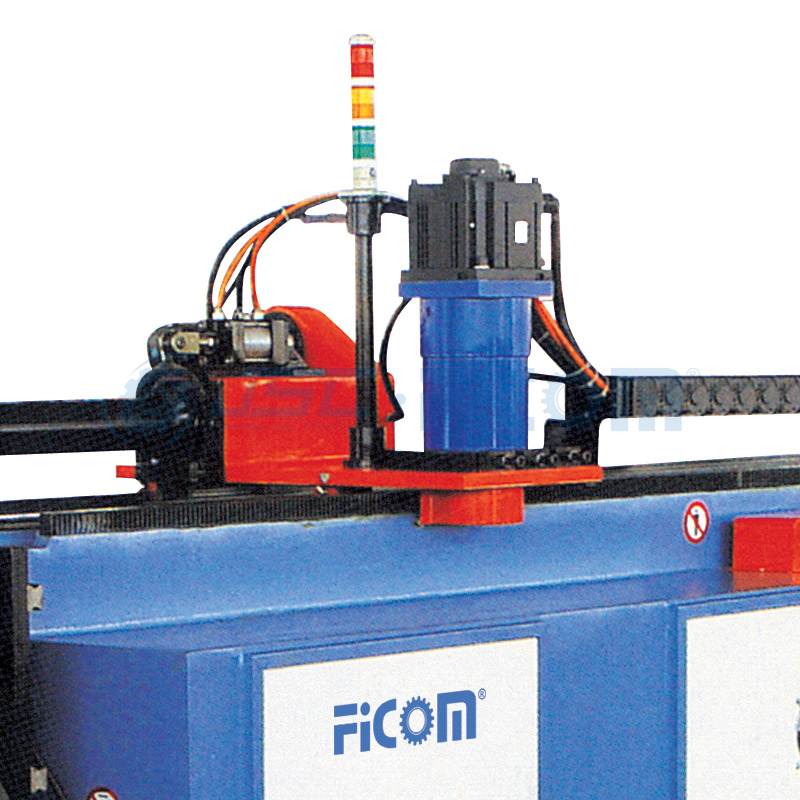

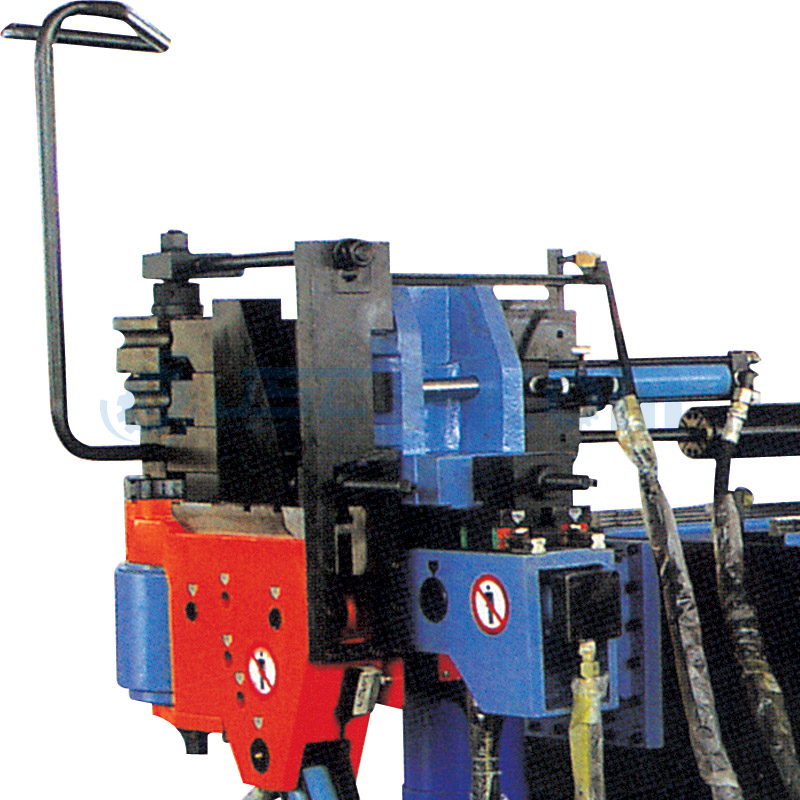

PBM-38X5A-3A
FICOM
Model No. | Unit | PBM18CNCX5A-2A PBM18CNCX5A-3A | PBM25CNCX5A-2A PBM25CNCX5A-3A | PBM38CNCX5A-2A PBM38CNCX5A-3A | PBM50CNCX5A-2A PBM50CNCX5A-3A | PBM63CNCX5A-2A PBM63CNCX5A-3A | |
max bending capability | mm | Φ18×2 | Φ25×1.6 | Φ38×2 | Φ50×3 | Φ63×4 | |
max bending radius | mm | R80 | R100 | R180 | R250 | R250 | |
min bending radius | mm | R5 | R5 | R15 | R20 | R25 | |
max bending degree | ° | 195 | 190 | 190 | 190 | 190 | |
max feeding length | mm | 1200 | 1400 | 2000 | 2600 | 2600 | |
feeding method | direct feeding clamping feeding | ||||||
working speed | bending speed | °/s | max 200 | max 200 | max 85 | max 85 | max 85 |
rotary speed | °/s | max 200 | max 200 | max 200 | max 200 | max 200 | |
feeding speed | mm/s | max 1000 | max 1000 | max 1000 | max 1000 | max 1000 | |
accuracy | bending accuracy | ° | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
rotary accuracy | ° | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | |
Feeding accuracy | mm | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | |
information inputting method | axis(X . Y. Z) working value(Y. B. C) | ||||||
bending method | servo bending:1Kw (more than 3axis) | servo bending:1.5Kw (more than 3axis) | servo bending:5.5Kw (more than 3axis) | servo bending:5.5Kw (more than 3axis) | servo bending:7.5Kw (more than 3axis) | ||
power of rotary servo motor | Kw | 0.45 | 0.45 | 0.75 | 0.75 | 1 | |
power of feeding servo motor | Kw | 0.75 | 0.75 | 1 | 1 | 1.3 | |
max bending groups | 12 / 33 | 12 / 33 | 12 / 33 | 12 / 33 | 12 / 33 | ||
max storing components | 330 / 125 | 330 / 125 | 330 / 125 | 330 / 125 | 330 / 125 | ||
motor power | Kw | 4 | 4 | 5.5 | 7.5 | 7.5 | |
oil pressure | Mpa | 10 | 12 | 12 | 12 | 12 | |
max bendingradius difference | mm | max 30 | max 35 | max 50 | max 75 | max 80 | |
G.W. | Kg | 800 | 1000 | 1500 | 2500 | 3000 | |
size | mm | 2760× 690×1000 | 2760× 760×1100 | 3830× 760×1200 | 4900× 1300×1300 | 4900× 1300×1300 |
