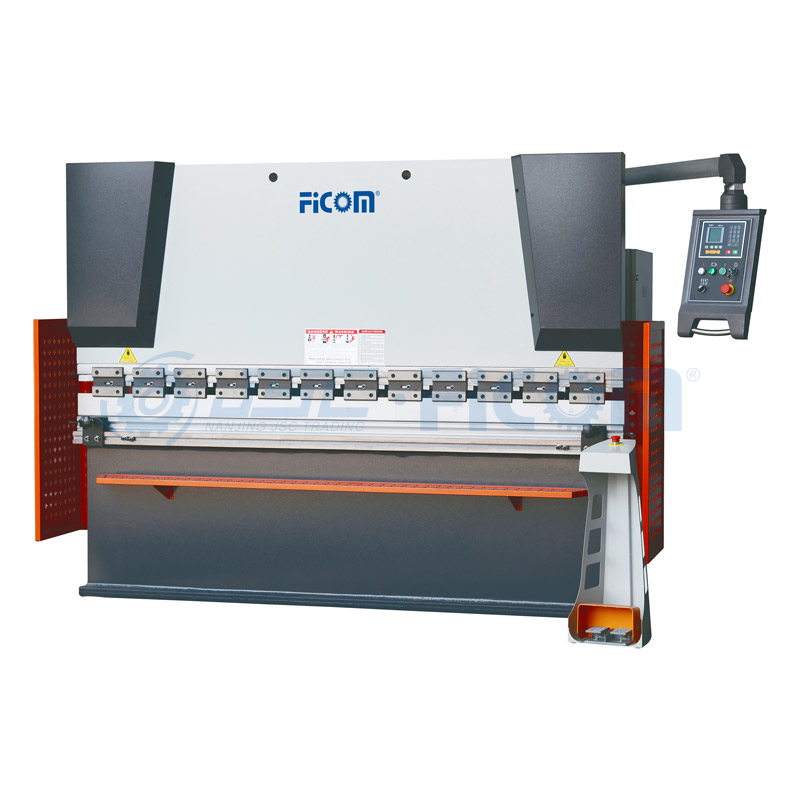

PBH
FICOM
| Model No. | nominal force (Kn) | length of worktable (mm) | distance between columns (mm) | throat depth (mm) | sliding block travel (mm) | max. opening height (mm) | adjusting range of sliding block (mm) | motor power (Kw) | G.W. (Kg) | size (L×W×H) (mm) |
| PBH40/2000 | 400 | 2000 | 1650 | 200 | 100 | 340 | 80 | 4 | 3300 | 2155×1469×2000 |
| PBH40/2500 | 400 | 2500 | 2000 | 200 | 100 | 340 | 80 | 4 | 3600 | 2655×1469×2000 |
| PBH63/2500 | 630 | 2500 | 2015 | 250 | 100 | 355 | 80 | 5.5 | 4800 | 2604×1725×2355 |
| PBH63/3200 | 630 | 3200 | 2650 | 250 | 100 | 355 | 80 | 5.5 | 5600 | 3288×1725×2355 |
| PBH80/2500 | 800 | 2500 | 2010 | 250 | 100 | 355 | 80 | 7.5 | 5900 | 2604×1725×2240 |
| PBH80/3200 | 800 | 3200 | 2660 | 250 | 100 | 355 | 80 | 7.5 | 6600 | 3280×1725×2240 |
| PBH80/4000 | 800 | 4000 | 3110 | 250 | 100 | 355 | 80 | 7.5 | 7800 | 4080×1765×2400 |
| PBH100/2500 | 1000 | 2500 | 2000 | 320 | 150 | 415 | 120 | 7.5 | 5900 | 2580×1850×2530 |
| PBH100/3200 | 1000 | 3200 | 2650 | 320 | 150 | 415 | 120 | 7.5 | 6600 | 3290×1825×2690 |
| PBH100/4000 | 1000 | 4000 | 3100 | 320 | 150 | 415 | 120 | 7.5 | 7800 | 4100×1850×2800 |
| PBH125/2500 | 1250 | 2500 | 2000 | 320 | 150 | 415 | 120 | 7.5 | 8150 | 2580×1850×2690 |
| PBH125/3200 | 1250 | 3200 | 2650 | 320 | 150 | 415 | 120 | 7.5 | 9800 | 3280×1850×2690 |
| PBH125/4000 | 1250 | 4000 | 3100 | 320 | 150 | 415 | 120 | 7.5 | 12000 | 4100×1850×2800 |
| PBH160/3200 | 1600 | 3200 | 2540 | 320 | 200 | 455 | 160 | 11 | 14000 | 3280×1940×2630 |
| PBH160/4000 | 1600 | 4000 | 3090 | 320 | 200 | 455 | 160 | 11 | 19500 | 4080×1940×2800 |
| PBH160/6000 | 1600 | 6000 | 4940 | 320 | 200 | 455 | 160 | 11 | 15800 | 4080×2340×3100 |
| PBH200/3200 | 2000 | 3200 | 2530 | 320 | 200 | 455 | 160 | 15 | 17200 | 3280×2000×2700 |
| PBH200/4000 | 2000 | 4000 | 3080 | 320 | 200 | 455 | 160 | 15 | 24600 | 4080×2000×2990 |
| PBH200/6000 | 2000 | 6000 | 4930 | 320 | 200 | 455 | 160 | 15 | 19200 | 6080×2100×3700 |
| PBH250/3200 | 2500 | 3200 | 2520 | 400 | 250 | 660 | 200 | 18.5 | 21500 | 3300×2200×3100 |
| PBH250/4000 | 2500 | 4000 | 3070 | 400 | 250 | 660 | 200 | 18.5 | 28800 | 4080×2200×3300 |
| PBH250/6000 | 2500 | 6000 | 4910 | 400 | 250 | 660 | 200 | 18.5 | 22800 | 6100×2300×3700 |
| PBH300/3200 | 3000 | 3200 | 2510 | 400 | 250 | 670 | 200 | 30 | 22800 | 3300×2200×3500 |
| PBH300/4000 | 3000 | 4000 | 3160 | 400 | 250 | 670 | 200 | 30 | 24900 | 4100×2300×3600 |
| PBH300/6000 | 3000 | 6000 | 4910 | 400 | 250 | 670 | 200 | 30 | 32000 | 6100×2600×3800 |
