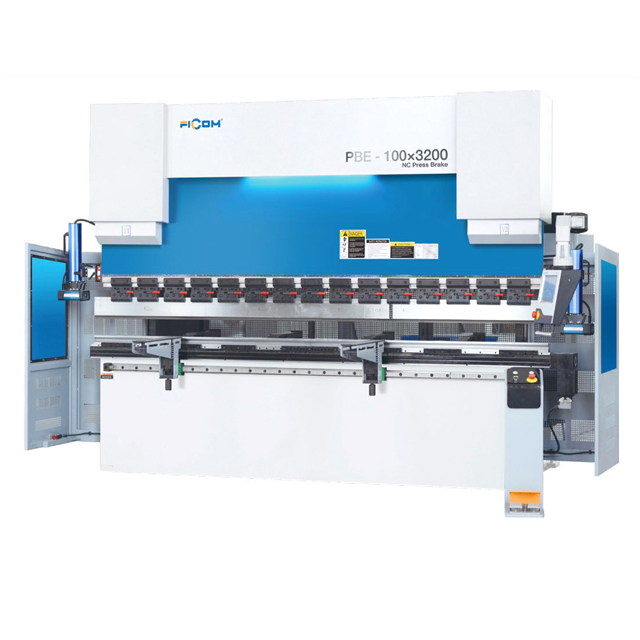

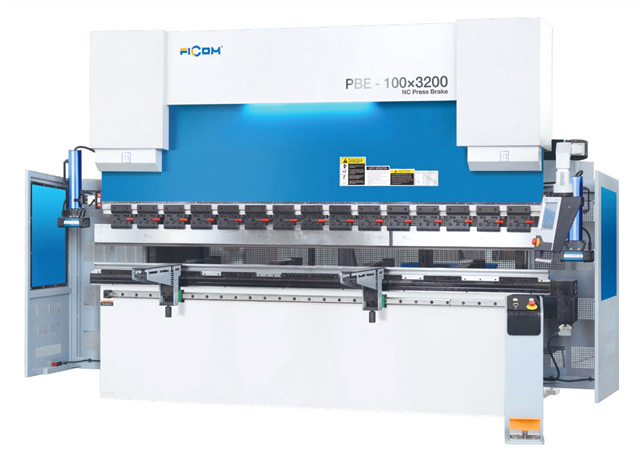

NC PRESS BRAKE PBE SERIES

The PBE Series Press Brakes are for the bending easily with a low operation cost. Machines are of Torsion bar with two axis control, also simple CNC available.
Availability:
Quantity:
  • NC PRESS BRAKE PBE SERIES

  • FICOM

Overview

-1-大

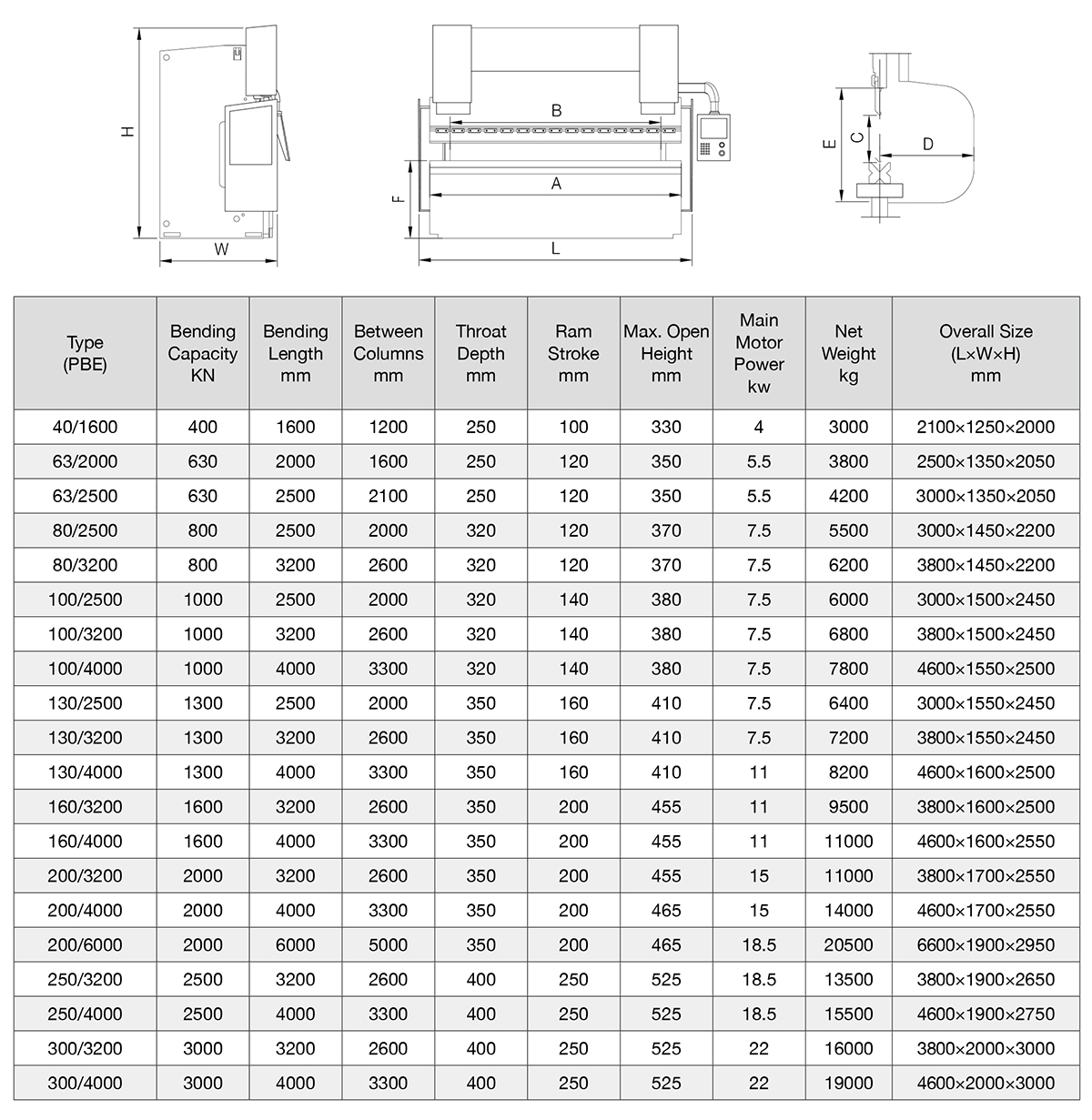

Technical Parameters

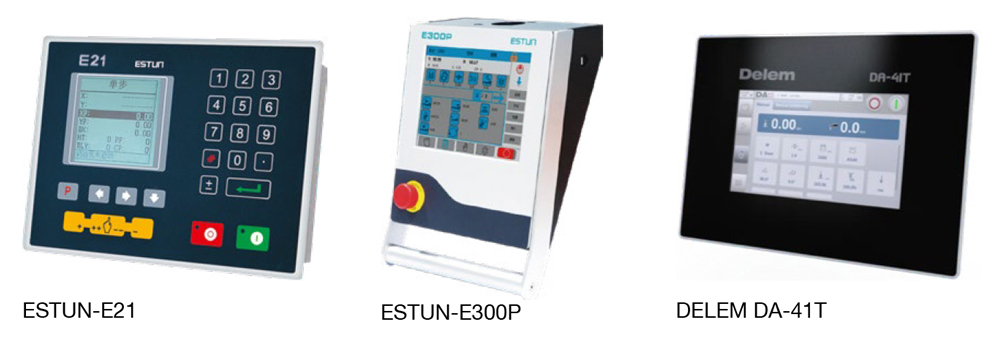

B CONTROL SYSTEM
Standard Components
ESTUN E21 NC Control System Hydraulic & Electrical Overload  Protection
Front Support Top and Bottom Tooling (86° R0.6mm)
Germany Bosch-Rexroth Hydraulic Backguage Controlled by Inverter (Delta)
Germany JS Tubing Connector

HIWIN Ball Screws & Polished Rod with 0,05mm Accuracy

WNM/Siemens Main Motor Back Metal Safe Fence with CE/Nr12  etc. Standards
Telemecanique/Schneider/Siemens Electrics Side Metal Safe Fence with CE/Nr12  etc. Standards
Optional Equipment
ESTUN E300P CNC System

DELEM DA-41T CNC System

Manual or Electric Crowning System
DSP Laser Safety Quick Clamping Units Monitor Valve
Front Finger Protection (Safety Light Curtain)
