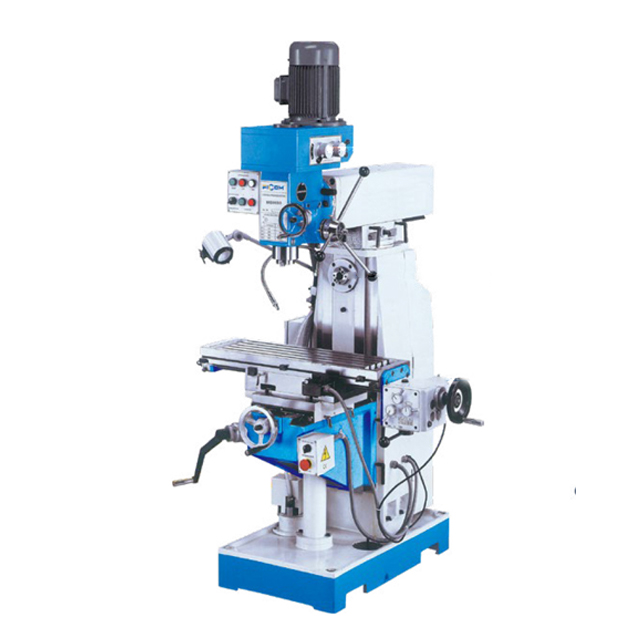

Milling Machine with High-Precision Spindle for Metal Cutting

Milling Machine Spindle Design for High Precision

The milling machine features a rigid, high-speed spindle system engineered to minimize runout and vibration during cutting. The spindle shaft is constructed from hardened alloy steel, precision-ground and dynamically balanced to ensure consistent rotational stability. Bearings are preloaded with angular contact design, providing exceptional rigidity under radial and axial loads.

This spindle design maintains positional accuracy within 0.005 mm, critical for complex metal cutting operations where repeatability and surface finish are key.

Milling Machine Rotational Control and Vibration Damping

Integrated servo-controlled motor drive allows continuous spindle speed adjustment from low-speed roughing to high-speed finishing. The system incorporates active vibration damping, reducing chatter when cutting high-strength alloys.

Precision rotational control ensures smooth chip formation and reduces heat generation at the cutting edge, protecting both the tool and the workpiece during prolonged operations.

Milling Machine Cooling and Lubrication of Spindle

This milling machine spindle is equipped with an internal cooling channel that circulates coolant through the spindle housing, preventing thermal deformation. High-performance spindle oil lubrication ensures stable bearing performance under high-load machining, extending service intervals and maintaining spindle precision over long production cycles.

Milling Machine Tool Holder and Clamping Accuracy

The milling machine uses high-precision tool holders with automatic clamping mechanisms for minimal axial and radial runout. Tapered holders are hardened and ground, providing excellent torque transfer to cutting tools. Tool changes are fast and accurate, minimizing downtime and improving overall machining efficiency.

Milling Machine Material Compatibility and Surface Finish

The high-precision spindle system enables consistent metal cutting across steel, stainless steel, aluminum, titanium, and copper alloys. The combination of spindle rigidity, vibration control, and high-speed lubrication ensures a superior surface finish with minimal burrs, reducing secondary finishing requirements.

Milling Machine Maintenance and Long-Term Reliability

Routine maintenance includes spindle bearing checks, alignment verification, and lubrication replacement. The milling machine's sealed spindle housing protects against dust, chips, and coolant contamination, ensuring consistent performance over extended operation periods and reducing unexpected downtime.

FAQ

How does spindle precision affect milling machine accuracy?
High spindle precision reduces tool runout and vibration, ensuring dimensional accuracy and consistent surface finish during metal cutting.

Can high-speed spindles be used for hardened steel cutting?
Yes, provided proper vibration damping, cooling, and rigid spindle design are integrated to prevent thermal expansion and tool wear.

What maintenance is critical for spindle longevity in milling machines?
Routine lubrication, bearing preload verification, and contamination prevention are essential for maintaining spindle performance and accuracy.

How do spindle cooling systems enhance metal cutting?
Internal spindle cooling prevents thermal deformation, reduces bearing temperature, and maintains consistent cutting geometry, improving surface finish.

Are spindle vibrations detectable during operation?
Yes. High-precision milling machines often use sensors or vibration monitoring systems to detect deviations, ensuring consistent performance.

Looking for a reliable Milling Machine? Contact us today to explore our extensive range of Precision Lathe Reliable Pergormance and find the perfect solution for your production needs.
