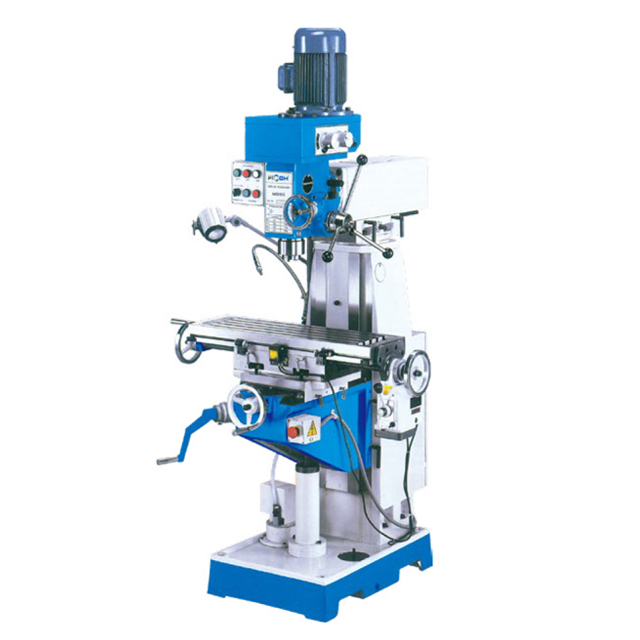

Milling Machine with High-Efficiency Cooling & Chip Removal

Milling Machine Cooling System for Thermal Stability

This milling machine is engineered with a multi-channel internal and external coolant delivery system designed to stabilize the cutting temperature under continuous high-load operation. Precision nozzles are positioned close to the cutting zone to ensure uniform coolant coverage on the cutting edge and tool–workpiece interface. Controlled flow rate prevents thermal shock while maintaining a stable heat dissipation balance across long production cycles.

Through consistent thermal control, the milling machine minimizes material expansion, reduces dimensional deviation, and protects spindle bearings from heat-induced fatigue.

Milling Machine Chip Evacuation Structure and Flow Design

The milling machine integrates a high-angle chip evacuation chute combined with a segmented spiral conveyor system. This structure ensures that chips are rapidly removed from the cutting area immediately after formation. The steep internal wall geometry prevents chip accumulation on guideways and ball screws.

For abrasive materials and high-volume roughing, the milling machine uses reinforced wear-resistant liners along the chip channel to prevent long-term structural erosion and maintain smooth flow efficiency.

Milling Machine Coolant Filtration and Recycling System

This milling machine is equipped with a multi-stage filtration unit, including magnetic separators, paper filtration, and fine mesh screening. The filtration accuracy effectively removes micro metal particles from recycled coolant, preventing pump wear, nozzle blockage, and secondary surface scratching during finishing operations.

Clean coolant circulation directly enhances surface roughness consistency and preserves the integrity of precision cutting edges over extended production periods.

Milling Machine High-Pressure Coolant Performance

For deep-hole milling and heavy rough machining, the milling machine supports high-pressure coolant output that penetrates directly into high-temperature cutting zones. This high-pressure injection breaks chip curls, prevents built-up edge formation, and maintains stable chip segmentation even in ductile materials such as stainless steel and titanium alloys.

The system is pressure-regulated by an intelligent pump module that dynamically adjusts flow output according to tool diameter and cutting load.

Milling Machine Protection Against Chip Contamination

The milling machine applies a fully enclosed working chamber with multi-layer sealing, effectively isolating chips and coolant mist from external mechanical components. Precision sliding surfaces are protected by telescopic steel covers and reinforced flexible shields. This design prevents chip intrusion into linear guideways, ball screws, and electrical wiring ducts.

As a result, the milling machine maintains long-term positioning accuracy and significantly reduces unscheduled maintenance intervals.

Milling Machine Thermal Deformation Control Strategy

The collaborative operation of the cooling system and structural heat balancing enables the milling machine to achieve active thermal deformation suppression. Temperature fluctuation is controlled within a narrow operating window, and thermal growth of critical components is evenly distributed.

This directly supports stable tool center point positioning, even during extended multi-shift continuous machining under fluctuating ambient workshop temperatures.

Milling Machine Material Compatibility Under Heavy Cooling

This milling machine cooling and chip evacuation system is optimized for processing carbon steel, alloy steel, stainless steel, aluminum alloys, copper alloys, and cast iron. Anti-corrosion pipelines and stainless coolant tanks prevent chemical reactions with water-based emulsions and synthetic cutting fluids.

All coolant-contact components are treated with corrosion-resistant coatings to extend service life and maintain system cleanliness.

FAQ

Why is chip evacuation critical for milling machine accuracy?
Poor chip evacuation causes secondary cutting, surface scratching, tool overheating, and dimensional inconsistency. Efficient chip removal ensures stable cutting geometry and repeatable precision.

Does coolant pressure affect tool life in a milling machine?
Yes. Proper coolant pressure removes heat from the cutting zone, prevents edge welding, and significantly reduces thermal fatigue and micro-fracture of cutting tools.

What type of chip conveyor is best for heavy chip load milling machines?
Hinged steel belt conveyors combined with spiral chip augers are most suitable for heavy steel chip output due to their high load capacity and anti-jamming reliability.

How often should milling machine coolant filtration systems be serviced?
Service intervals depend on material type and production volume, but fine filtration elements typically require inspection every 2–4 weeks in continuous industrial operation.

Can improper cooling cause spindle failure in a milling machine?
Yes. Inadequate thermal control increases bearing temperature, accelerates lubricant degradation, and can lead to premature spindle bearing fatigue and shaft deformation.

Looking for a reliable Milling Machine? Contact us today to explore our extensive range of Precision Lathe Reliable Pergormance and find the perfect solution for your production needs.
