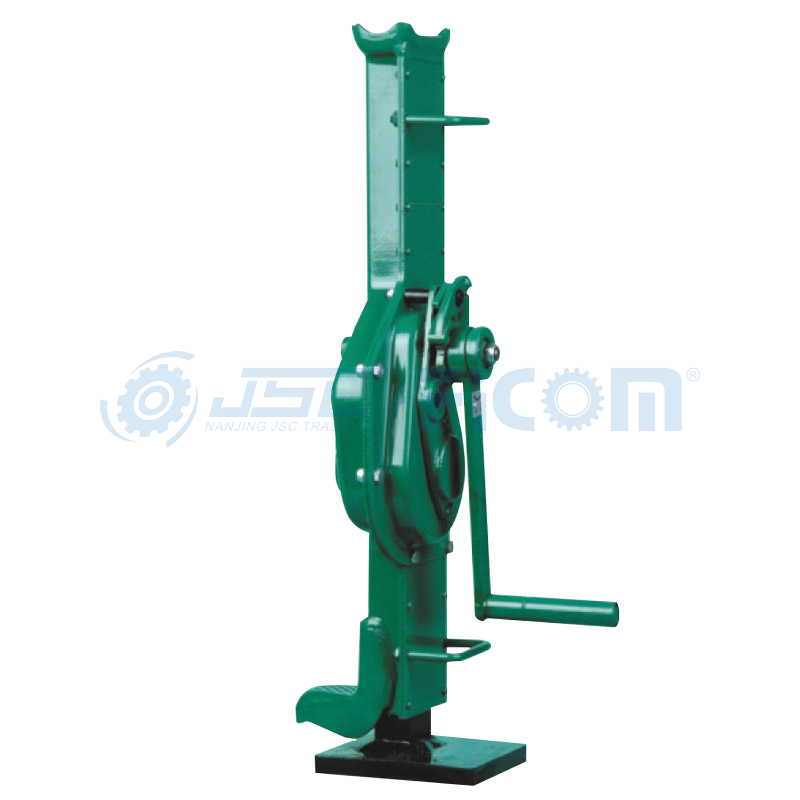

Mechanical Steel Jack Model: MJ (Capacity: 1.5 to 20 ton)

Double pawel brake sysytem-quick braking,safe and reliable Low gearing tolerance-smooth transmissions,free of jerks.
High efficiency nad minimun turning force ledd than 25 kgs is required to lift full load of all rated capacity.
Sturdy structure,light weight and quick lift peformance,high quality material CRS plate,carburized alloy steel gears.

Quantity:
  • MJ
  • FICOM
Overview

Capacity: 1.5 to 20 ton

56

Operation Guide

Put the steel jack on even places.Then placethe goods on the lower Support Stand(4) or the Upper Support Stand(3),Shake the level(2)clockwise to lift the goods,vice verse,the goods are lowered down.

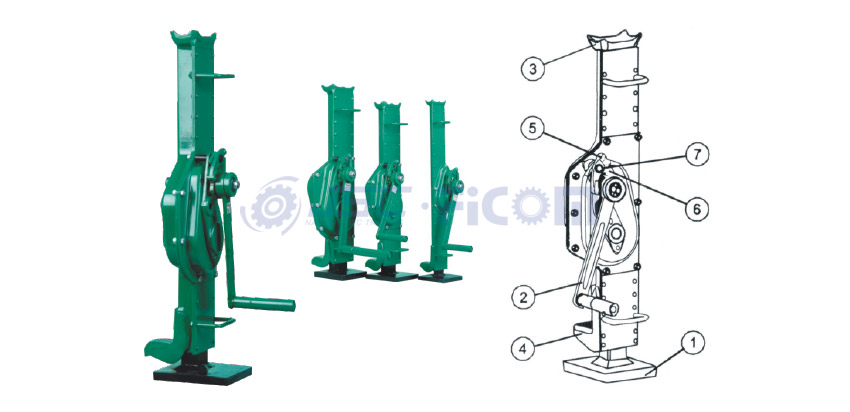

(1)   Base

(2)   Level

(3)   Upper Support Stand

(4)   Lower Support Stand

(5)   Upper Ratchet Pawl

(6)   Lower Ratchet Pawl

(7)   Axle Ring



Attention

Overload is forbidded.Do not exceed the rated capacity

Before operation,please check the flexibility of the ratchet pawels(5),(6)

Please be sure the jack is on complete balance when operating.Do not putit on beveled,are or uneven surface.The jack placed on hard mush hard plain grounds

Before lifting,please be sure of te support stand(4)(3)supports the goods completely

When several jacks are used at thee of the same time,please be sure of the body under the same lift or down.The whole operation course should be directed.

It’s forbidden putting any parts of the body under the lifter goods

If woking force is abnormal in operation,please stop working immediately to inspect all related transmit components.

Lubricate parts applied regularly

The upper support stand(3)should be on bottom position when the jack is not used.

Technical Parameters

MJ Jack is designed and developed for heavy duty industrial lifting application,strictly in accordance with the latest safety standard DIN 7355

56-2

Model



Rated

Load

(kg)

Height of

Load

(mm)

Lifting

Height

(mm)

Height of Claw in

Lowest Postition

(mm)

Net

Weight

(kg)

MJ1.5 1500 725 350 70

70

MJ03 3000 725 350 75 75
MJ05 5000 725 300 70 70
MJ10 10000 800 300 90 90
MJ16 16000 950 400 95 95
MJ20 20000 950 400 95 95
