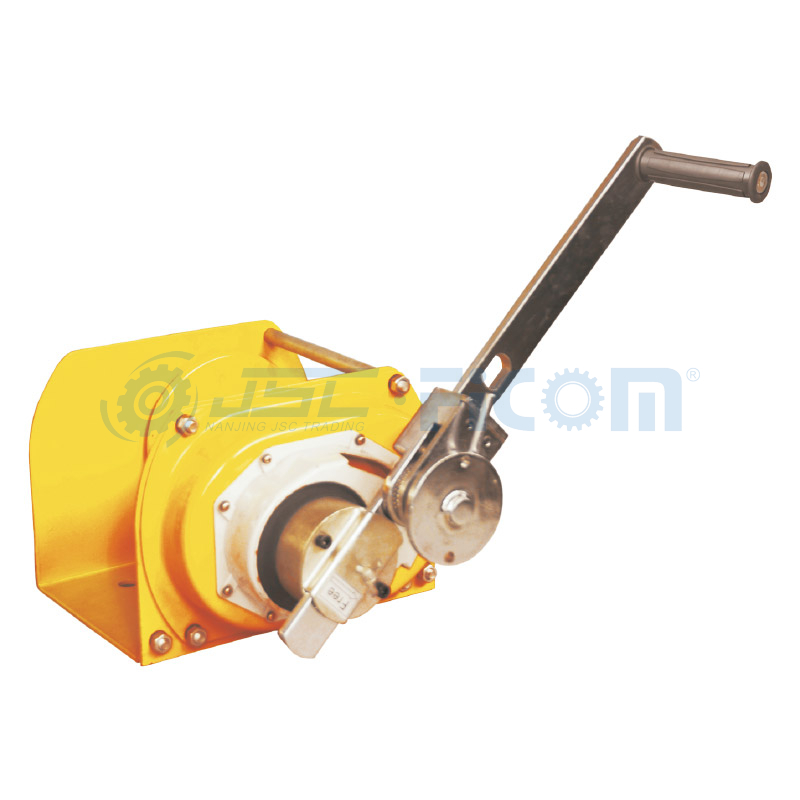

Manual Winch Heavy Duty Model: MW (Capacity:Pulling force 100-30000kg)

Suitable for many lifting and lowering applications such as raising boats on davits of rasing and lowering sailboats keels.
Self-locking brake winches procide additional safety and control for many lifting and pulling jobs.
The automatic frictionbrake supplies constant,positive holding action and prevents runaway load.
Brake is fully automatic and the load remains in position anytime the handle is released.

Quantity:
  • MW
  • FICOM
Overview

Capacity:Pulling force 100-30000kg

55B

Technical Parameters

Model



Rope

Dia.

(mm)

Dualablility

on 1st Layer

(kg)

Drum

Diameter

(mm)

Hand

Pressrue Load

(kg)

Drum

Capacity

(m)

Can Wind

Per Turn

(mm)

Handle

Length

(mm)

Gear

Ratio


Net

Weight

(kg)

MW001 φ5.0 100 48.0 11.5 30 166.5 240 1:1

6.9

MW003 φ6.3 300 60.5 11 30 72.8 350 2.28:1 11.6
MW005 φ6.3 500 60.5 12 40 48.4 350 4.33:1 13.0
MW010 φ8.0 1000 76.3 12 40 21.7 350 12.19:1 18.1
MW020 φ9.0 2000 89.1 13 40 13.6 350 22.68:1 24.0
MW030 φ12.5 3000 101.6 18 40 18.0 350 22.16:1 42.6
