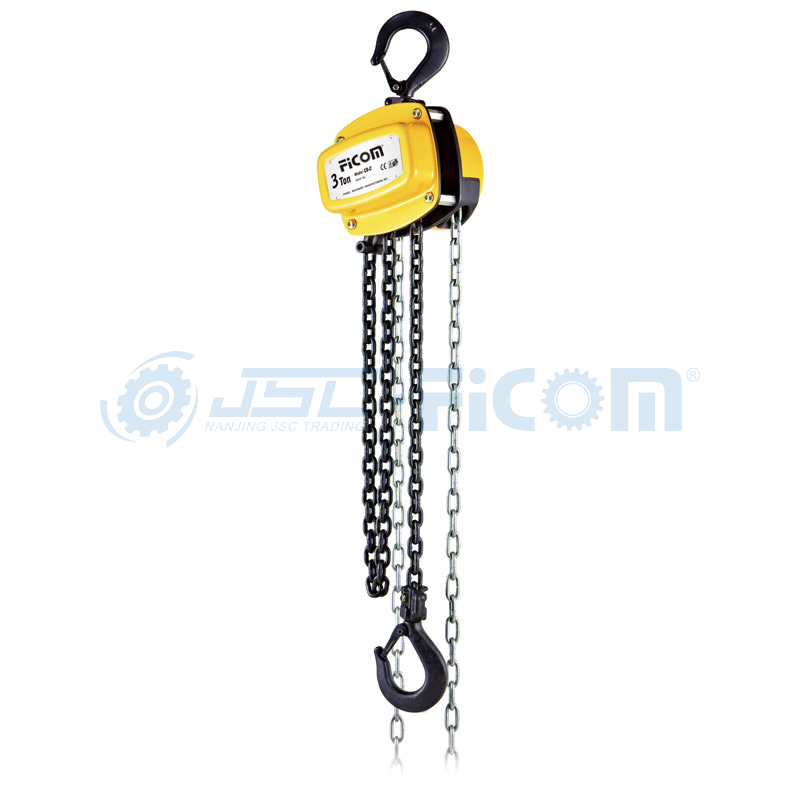

Manual Chain Hoist Model: YH (Capacity: 1000-3000kg)

The revolutionary 360°rotating hand chain guide allows the operatorto work from virtually any position,in confined spaces or above the load.TH360 can even be operated from the side of the load which also makes it possible to use the hoist for horzontal pulling or tensioning.Due to the additional flexibility,the operator is no longer forced to work in the danger zone near the load.
The enclosed robust stamped steel housing protects all internal components even in the toughest conditions.
Chain guide and gearbox are amost totally enclosed.Even under the toughest conditions the internal gearbox remains protected.
The hardened load sheave with four precision machined pockets ensures accurate movement o the load chain.
Drop forged load and suspension hooks that yield under overload instead of breaking,are made of high tensile steel.
The hooks are fitted with robust safety latches and rotate 360°
Availability:
Quantity:
  • YH

  • FICOM

Overview

Capacity: 1000-3000kg

42

Areas of operation as well as operator conditions have been improved in trail-blazing fashion,which goes far beyond the classcical hand chain hoist.

Technical Parameters

Capacity

(kg)

Model

No.

of chain

ChainSize

(mm)

Pull on Hand Chain at Wll

N

Net Weight at Standard 3m Lift

(kg)

1000 YH01 1 6×18 240 13.9
2000 YH02 1 8×24 329 21.6
3000 YH03 1 10×30 410 30.6

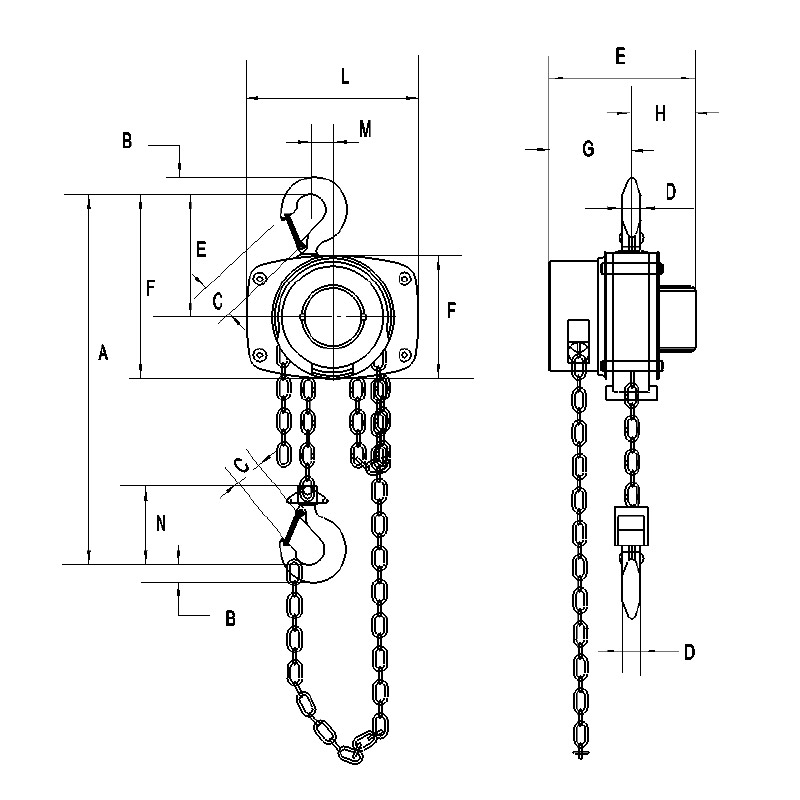

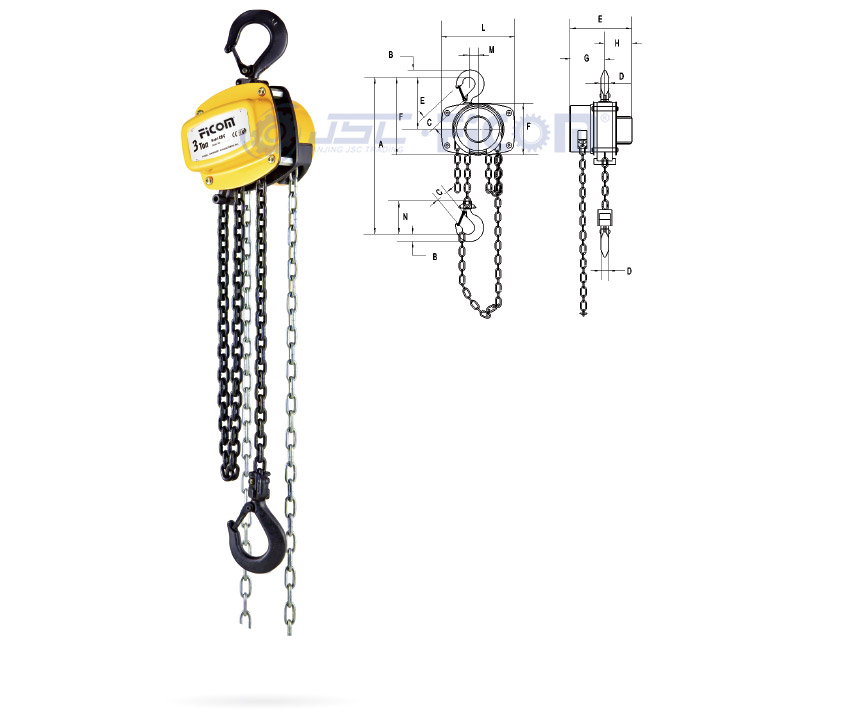

Size Specification (mm)

42-4

Model Hmin B C D E F

YH01

355.6 22.2 28.6 14.3 176 155.6
YH02 395 30 35 20.6 203 182.5

YH03

520 38 39.7 25.4 224 220
