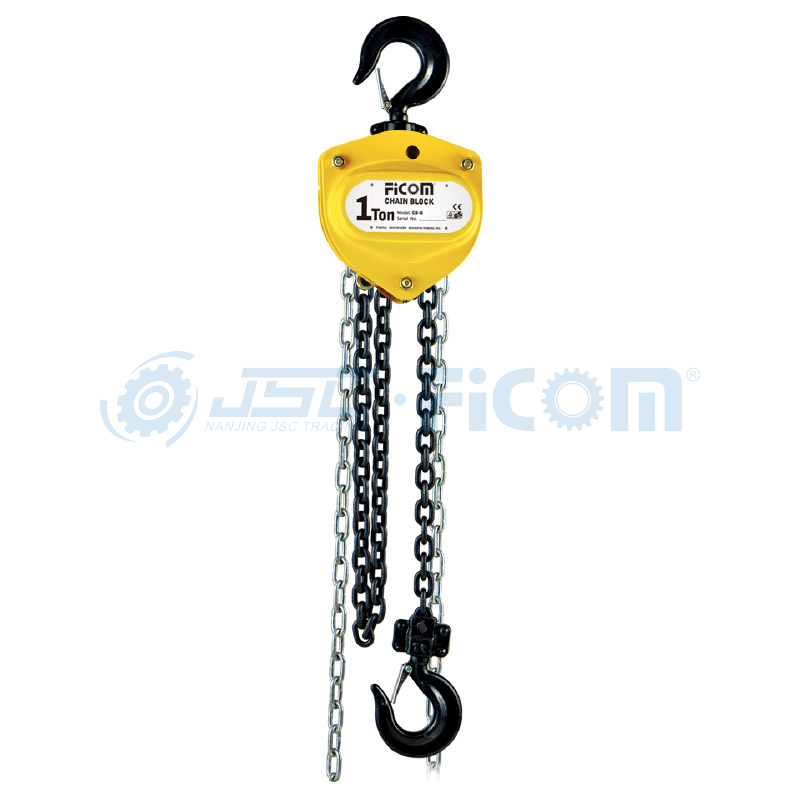

Manual Chain Hoist Model: MH (Capacity: 500-30000kg)

The MH model hand chain hoist results from the application of high technology with emphasis on overall performance required in a quality chain hoist.
Lighter weight,higher effciency and more compact size ,these hoists are valuable in lifting application
The enclosed robust stamped steel housing protects all internal components even in the toughest conditions.
Chain guide and gearbox are almost totally enclosed.Even under the toughest conditions the internal gearbox remains protected.
The hardened load sheave with four precision machined pockets ensure accurate movement of the load chain.
Drop forged load and suspension hooks that yield under overload instead of breaking,are made of high tensile steel.
The hooks are fitted with robust safety latches and rotate 360°

Quantity:
  • MH
  • FICOM
Overview

Capacity: 500-30000kg

43


Technical Parameters

Capacity

(kg)

Model

No.

of chain

ChainSize

(mm)

Pull on Hand Chain at Wll

N

Net Weight at Standard 3m Lift

(kg)

500 MH0.5 1 5×15 240 9.3
1000 MH01 1 6×18 250 12.2
1500 MH1.5 1 7×21 265 16.5
2000 MH02 1 8×24 335 19.5
3000 MH03 1 10×30 372 32
5000 MH05 2 10×30 380 43
7500 MH7.5 3 10×30 380 71.6
10000 MH10 4 10×30 380 80.7
15000 MH15 6 10×30 385 140
20000 MH20 8 10×30 400×2 180
30000 MH30 12 10×30 420×3 350

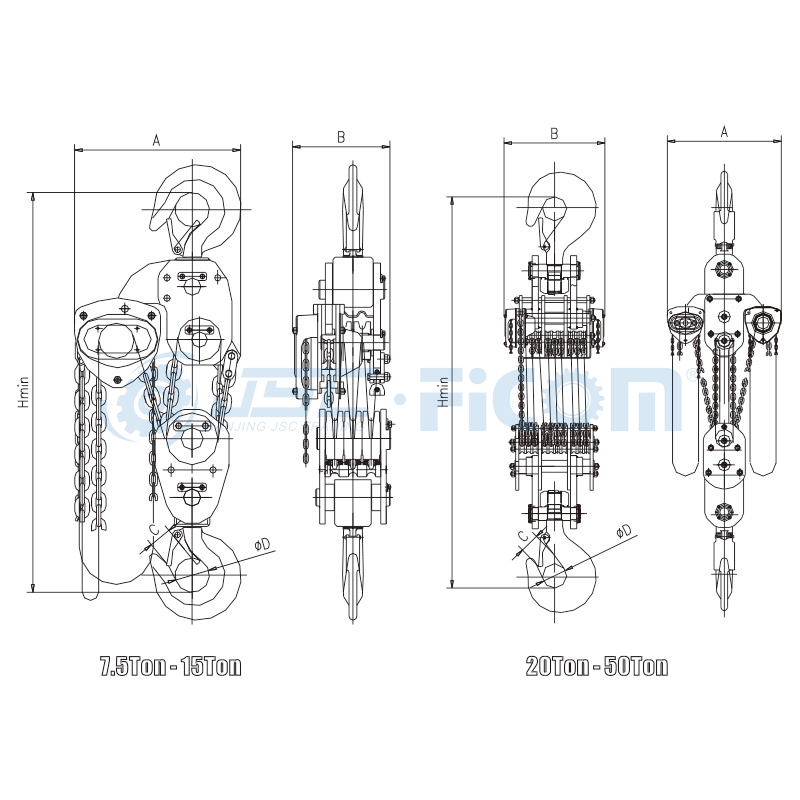

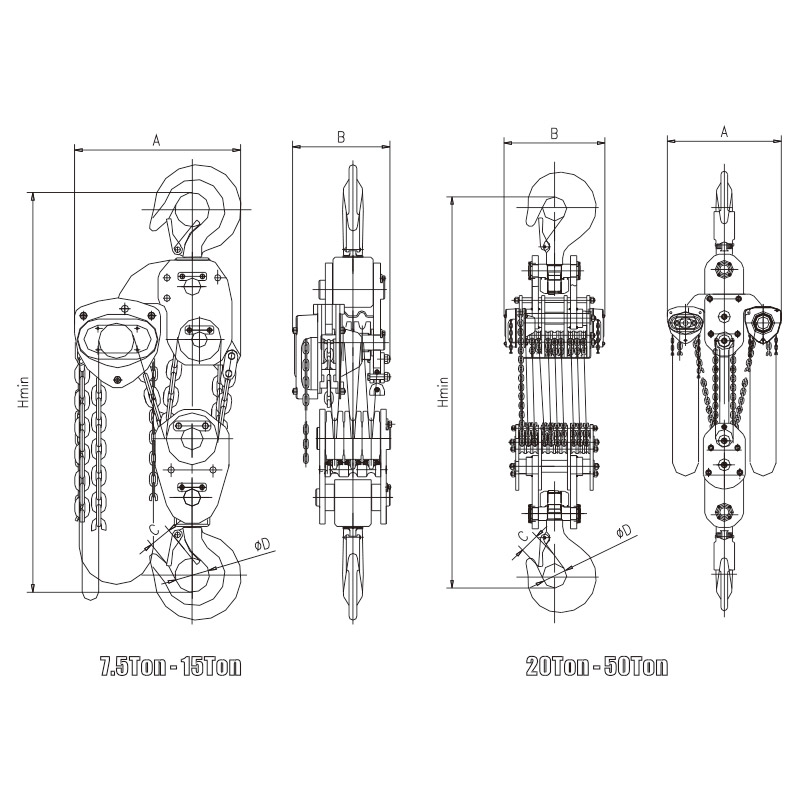

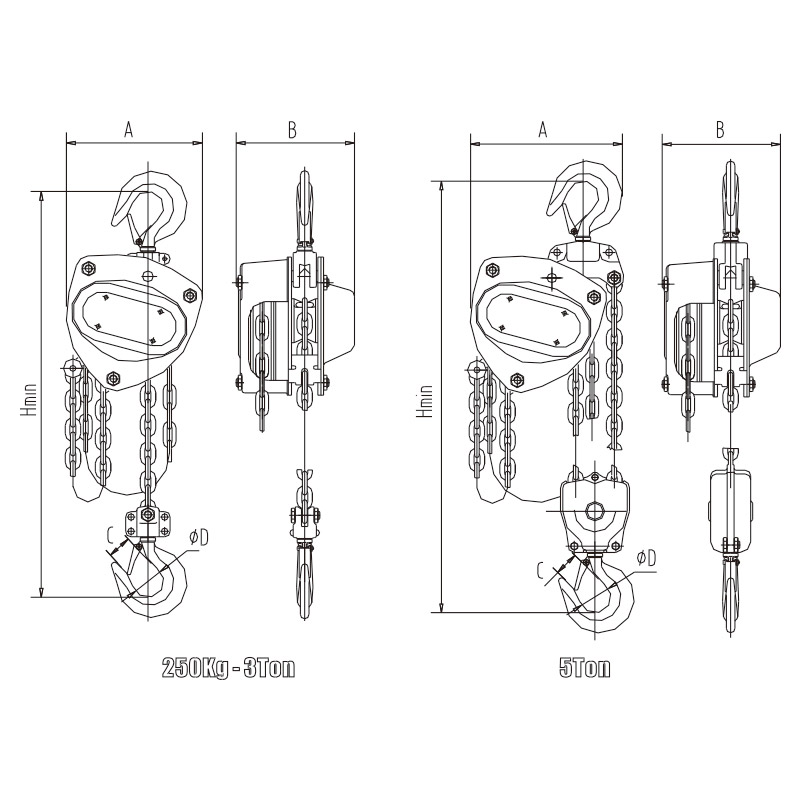

Size Specification (mm)

43-443-5

Model Hmin A B C D

MH0.5

345 148 132 23 35
MH01 376 172 151 26 40

MH1.5

442 196 173 29.5 45

MH02

470 210 175 34 50
MH03 580 255 205 37.5 55

MH05

690 280 189 41 65

MH7.5

800 433 189 50 85
MH10 830 463 189 50 85

MH15

980 540 220 80 110

MH20

1000 630 200 80 110
MH30 1400 705 510 80 110
