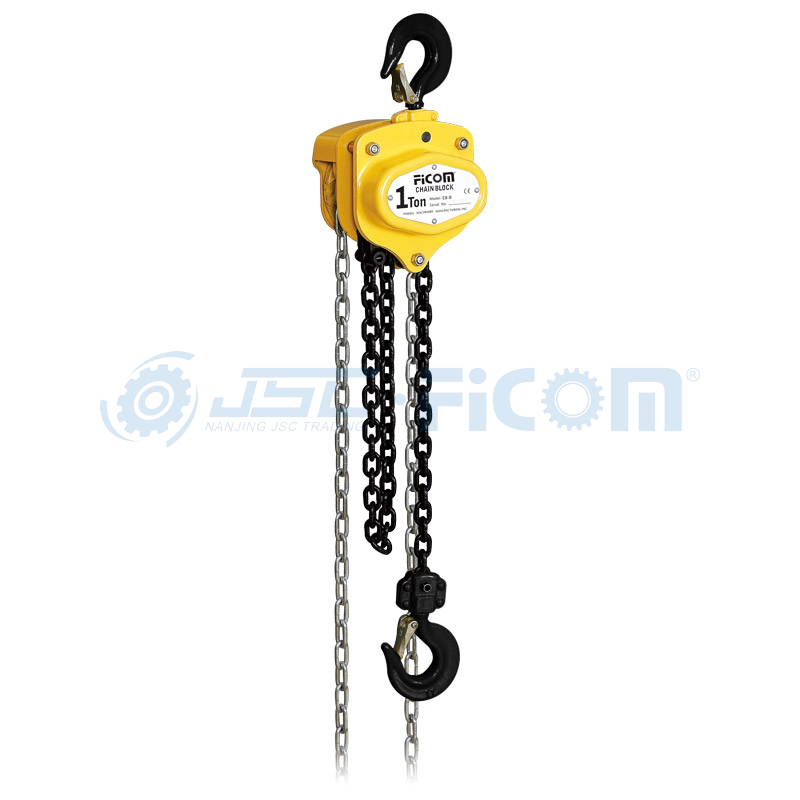

Manual Chain Hoist Model: MC (Capacity: 500-20000kg)

The MC model hand chain hoist results from the application of high technology with emphasis on overall performance required in a quality chain hoist.
Lighter weight,higher effciency and more compact size ,these hoists are valuable in lifting application
The enclosed robust stamped steel housing protects all internal components even in the toughest conditions.
Chain guide and gearbox are almost totally enclosed.Even under the toughest conditions the internal gearbox remains protected.
The hardened load sheave with four precision machined pockets ensure accurate movement of the load chain.
Drop forged load and suspension hooks that yield under overload instead of breaking,are made of high tensile steel.
The hooks are fitted with robust safety latches and rotate 360°

Quantity:
  • MC
  • FICOM
Overview

Capacity: 500-20000kg

44


Technical Parameters

Capacity

(kg)

Model

No.

of chain

ChainSize

(mm)

Pull on Hand Chain at Wll

N

Net Weight at Standard 3m Lift

(kg)

500 MC0.5 1 5×15 231 7
1000 MC01 1 6×18 309 10.5
1500 MC1.5 1 7.1×21 320 17
2000 MC02 1 8×24 320 18
3000 MC03 2 7.1×21 360 22
5000 MC05 2 9×27 414 40
10000 MC10 4 10×30 420 70
20000 MC20 8 10×30 420×2 162

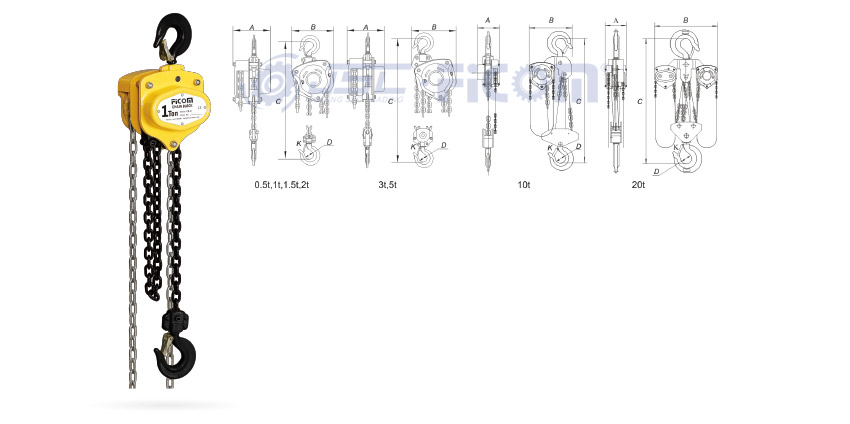

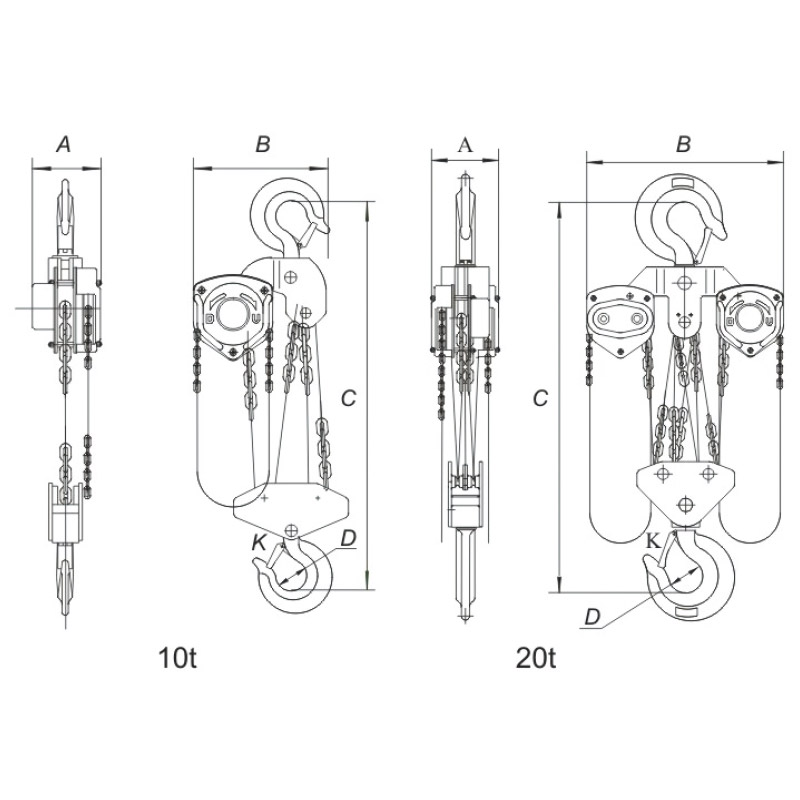

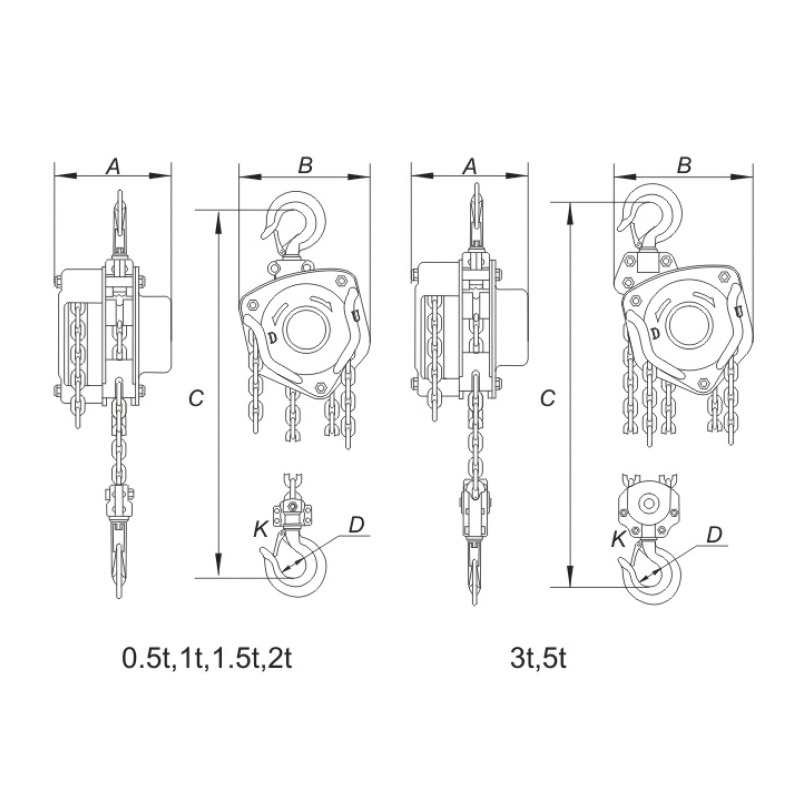

Size Specification (mm)

44-444-5

Model Hmin A B C D

MC0.5

115 136 270 35 25
MC01 143 156 317 36 27

MC1.5

148 182 399 44 34

MC02

152 198 414 46 36
MC03 148 182 465 48 38

MC05

181 266 636 62 48
MH10 181 365 798 85 57

MH20

192 630 890 106 84
