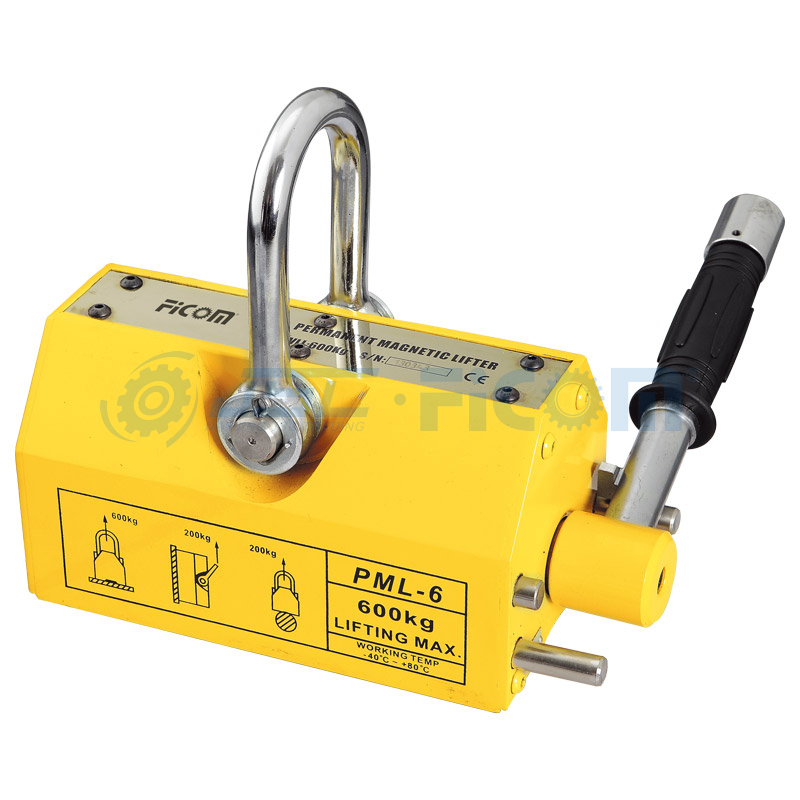

Magnetic Lifter Model: ML (Capacity: 100-6000kg)

ML load lifting magnets are ideal tools for easy,quick and thus economical transport of heavy objects made of ferro-magnetic material.Typical operating areas are workshops and wearhouses,loading and unloading of machines as well as construction of jigs and fixtures.
Compact design of the units for a large number of applications.
The load is not affected mechanically which allows lifting of flats as well as round material.T he efficient magnet body provides strong lifting capacity at low dead weight.The permanent magnets do not require electric energy and will leave only minor residual magnetism on the material after use.
The magnets are activated/deactivated easily byturning a locking lever.In activated condition the hand lever will be safety locked and thus prevent unintended demagnetising
The selection of the appropriate magnet model should be made under consideration of the varying conditions of the contact surface,kind of material alloy.

Quantity:
  • ML
  • FICOM
Overview

Capacity: 100-6000kg

52

Safety Factor 350% WLL

Model


Rated

Lifting

Strength

(Kgf)

Cylindrical

Lifting

Strength

(Kgf)

Max

Pull-off

Strength

(Kgf)

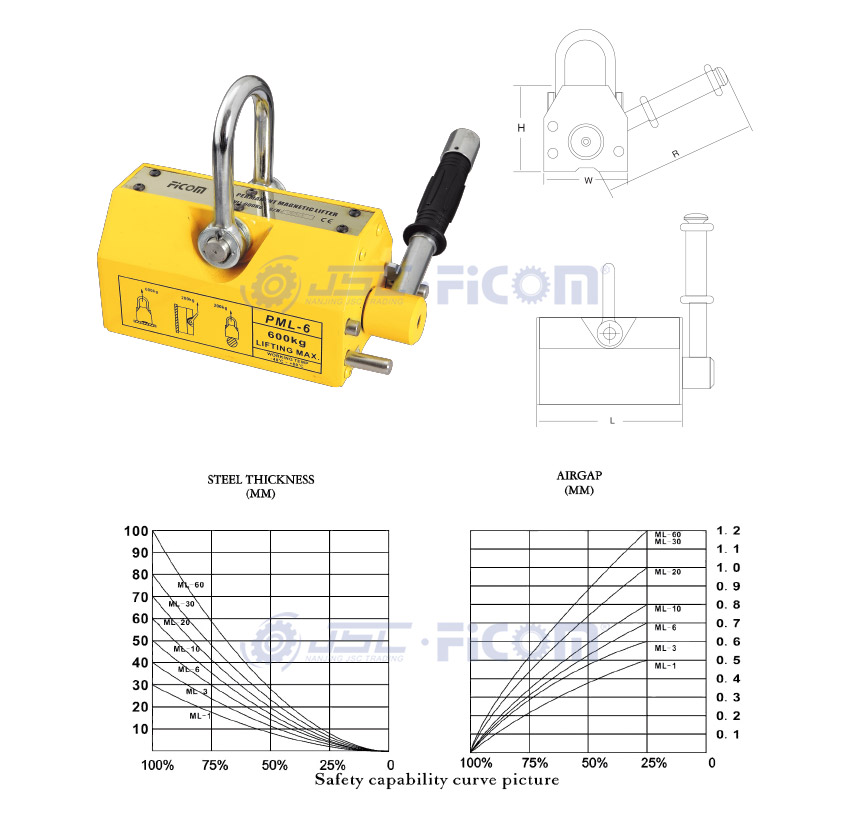

W




L




H




R




Operation

Temperature

(℃)


Dead

Weight

(Kg)


ML1 100 30 350 62 92 70 145 <80 3
ML3 300 100 1050 91 162 96 180 <80 10
ML5 500 150 1750 120 216 118 220 <80 20
ML6 600 200 2100 122 232 120 220 <80 24
ML10 1000 300 3500 176 258 163 285 <80 50
ML20 2000 600 7000 234 378 212 465 <80 125
ML30 3000 1000 10500 286 458 261 565 <80 220
ML60 6000 2000 19200 296 720 266 710 <80 398

Note:Safety factor 300% WLL magnetic lifter is also available,please contact with us if request.
