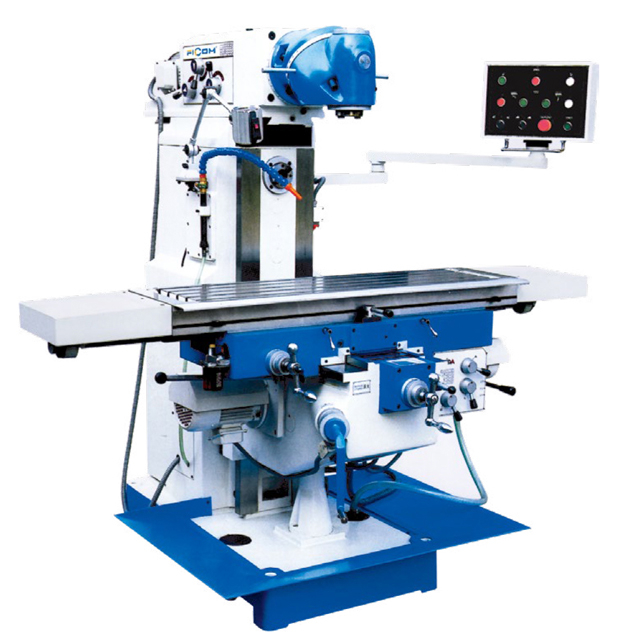

MVH6432
FICOM
· Rectangular table guidways with high stability.
· Automatic spindle feed.
· Motorized lifting and lower of headstock.
· Headstock lifting and lower of headstock.
· Headstock swivels ±45°.
· Hardened and ground table surface.
| Model No. | MVH6432 |
| work table size | 320×1320mm(12.60"×51.97") |
| T-slot size | 3×16mm(0.12"×0.63") |
| max. drilling dia. | 25mm(0.98") |
| max. end milling dia. | 200-650mm(7.87"-25.59") |
| max. vertical milling dia. | 200-760mm(7.87"-29.92") |
| distance from spindle nose to table surface | 20-470mm(0.79"-18.50") |
| range of spindle speed | 45-1660(V)/38-1310(H)r/min |
| spindle stroke | 1320×320mm(51.97"×12.60") |
| swivel angle of swivel head | 360°(14.17") |
| overall dimensions | 2020×1710×1994mm |
| motor | 3Kw |
| G.W. | 2400Kg |
| drill chuck | mill chuck | vice | wrech |
| reduction sleeve | wedge shifter | rertical draw bar | horizontal draw bar |
| milling bar | horizontal milling bar | spindle arbor | operation manual |
| DRO | vise | milling collet chuck | rotary table |
| dividing head | 58 pcs clamping kits | keyless drill chuck |
