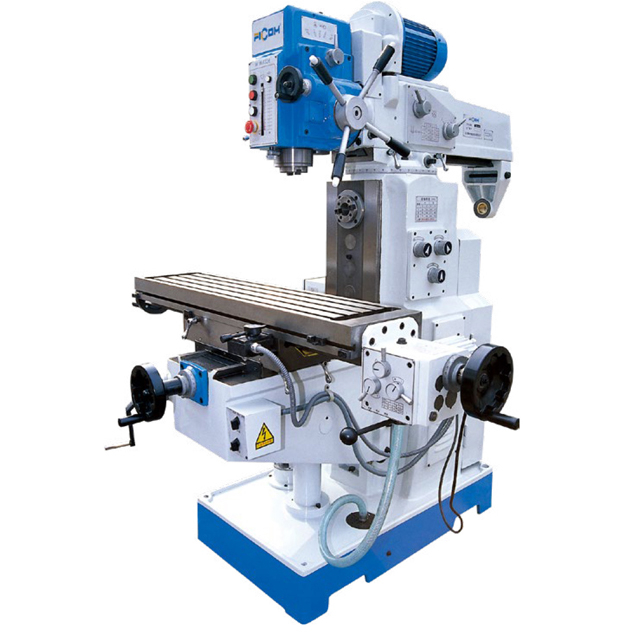

MVH6326
FICOM
· Rectangular table guidways with high stability.
· Automatic spindle feed.
· Headstock lifting and lower of headstock.
· Headstock swivels ±45°.
· Hardened and ground table surface.
| Model No. | MVH6326 |
| work table size | 260×1120(10.24"×44.09")mm |
| T-slot size | 3×16(0.12"×0.63")mm |
| max. drilling dia. | 40(1.54")mm |
| max. end milling dia. | 125(4.92")mm |
| max. vertical milling dia. | 25(0.98")mm |
| distance from spindle nose to table surface | 80-460(3.15"-18.11")mm |
| range of spindle speed | 67-2010(V)/38-1310(H)r/min |
| spindle stroke | 120(4.72")mm |
| automatic spindle feed | 0.1/0.15/0.3mm |
| overall dimensions | 1580×1450×2150mm |
| motor | 1.5/2.2Kw |
| G.W. | 1450Kg |
| drill chuck | mill chuck | vice | wrech |
| reduction sleeve | wedge shifter | rertical draw bar | horizontal draw bar |
| milling bar | horizontal milling bar | spindle arbor | operation manual |
| DRO | vise | milling collet chuck | rotary table |
| dividing head | 58 pcs clamping kits | keyless drill chuck |
