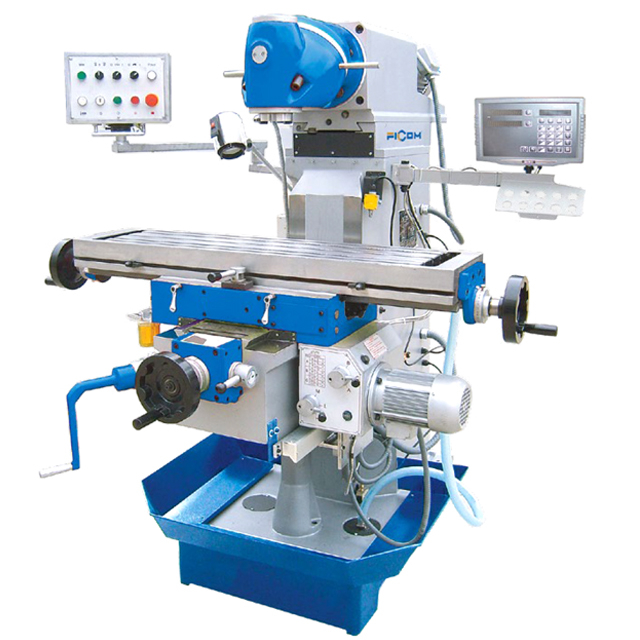

MUV100
FICOM
· Excellent price and performance ratio.
· Wide range of applications.
· Solid,heavy-duty model made from high-grade cast iron.
· Solid,precise cross table,precision-ground.
· All guideways hardened adjustable due to tapered gibs.
· One shot lubrication
· Dove tail slideways.
· Main switch with protective motor switch,right-left-hand rotation switch,emergency stop switch.
· Heavy duty handwheel with scale.
· Equipped with work lamp,cooling system,oil tray
· Bay table get more capacity.
| Model No. | MUV100 |
| max. end milling capacity | 25mm |
| max. face milling capacity | 125mm(4.92") |
| work table size | 1120×260mm |
| swivel angle of swivel head | 360° |
| cross travel | 270mm |
| longitudinal travel | 600mm |
| vertical travel | 420mm |
| taper of apindle bore | ISO40 |
| spindle nose to table | 100-480mm |
| step of spindle speed | 11 |
| range of spindle speed | 45-1660rpm |
| table feed | 18-310mm/min |
| motor | 2.2Kw |
| packing size | 1655×1325×1730mm |
| G.W. | 1350Kg |
| drill chuck | drawbar | work lamp | milling vice |
| coolant system | chip tray | X-axis mechanical power feed | toolbox&tools |
| operation manual | quality certificate | packinglist |
| DRO | vise | milling collet chuck | rotary table |
| dividing head | 58 pcs clamping kits | Z-axis automatic feed | keyless drill chuck |
