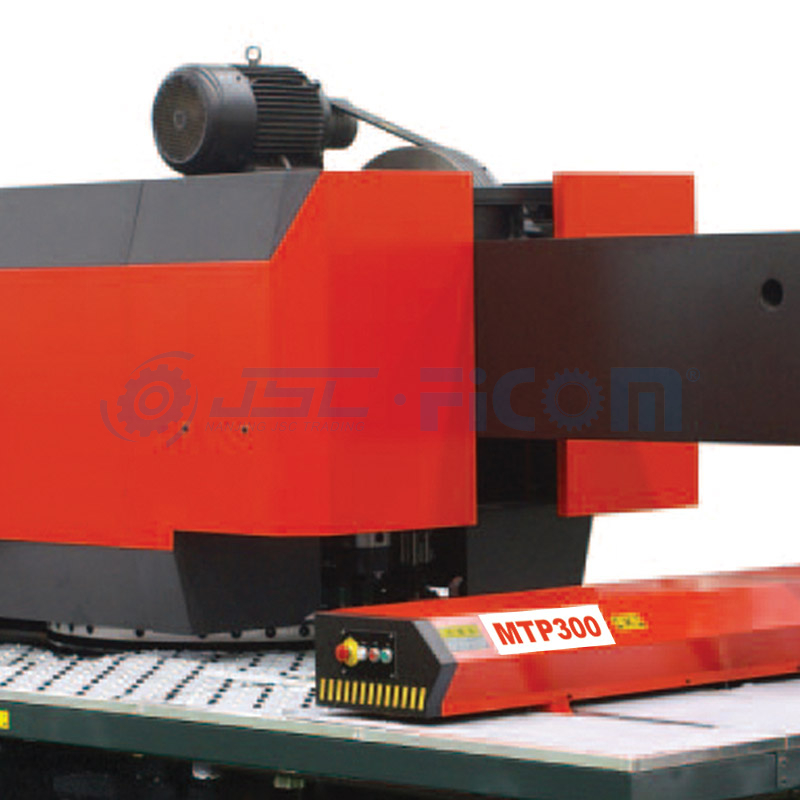

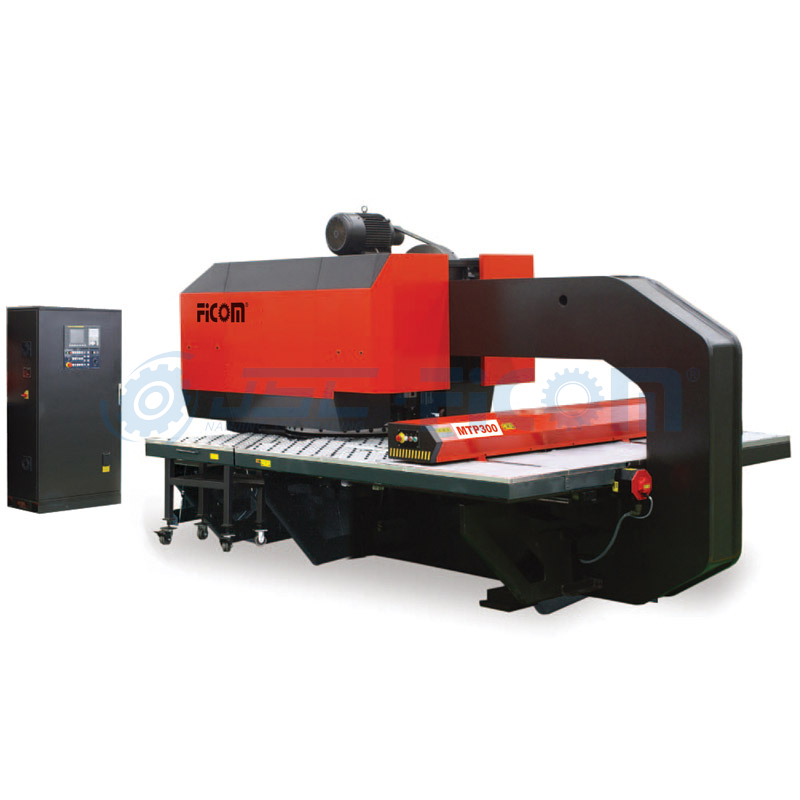

MTP300
FICOM
Model No. | Unit | MTP300 | ||||
press capacity | Kn | 300 | 300 | 300 | 300 | 300 |
max. sheet size | mm | 1250×2500 (with one reposition) | 1250×4000 (with one reposition) | 1250×5000 (with one reposition) | 1500×2500 (with one reposition) | 1500× 4000/5000 (with one reposition) |
max. sheet thickness | mm | 6.35 | 6.35 | 6.35 | 6.35 | 6.35 |
max. hole diameter | mm | φ88.9 | φ88.9 | φ88.9 | φ88.9 | φ88.9 |
turret capacity | 24/32 | 24/32 | 24/32 | 24/32 | 24/32 | |
punching accuracy | mm | ±0.10 | ±0.10 | ±0.10 | ±0.10 | ±0.10 |
max. feeding speed | m/min | 68 | 68 | 68 | 68 | 68 |
turret rotation speed | rpm | 30 | 30 | 30 | 30 | 30 |
strokes per minute | times/min | 300 | 300 | 300 | 300 | 300 |
control axis | 4 | 4 | 4 | 4 | 4 | |
rotation station speed | rpm | 60 | 60 | 60 | 60 | 60 |
cnc system | fanuc | fanuc | fanuc | fanuc | fanuc | |
air pressure | Mpa | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
main motor power | Kw | 11 | 11 | 11 | 11 | 11 |
outline dimensions | mm | 5020×2680 ×2600 | 5020×4000 ×2600 | 5020×5000 ×2600 | 5520×4000 ×2600 | 5520 ×4000/5000 ×2600 |
frame construction | o-type (closed-type) | o-type (closed-type) | o-type (closed-type) | o-type (closed-type) | o-type (closed-type) |
