| Quantity: | |
|---|---|

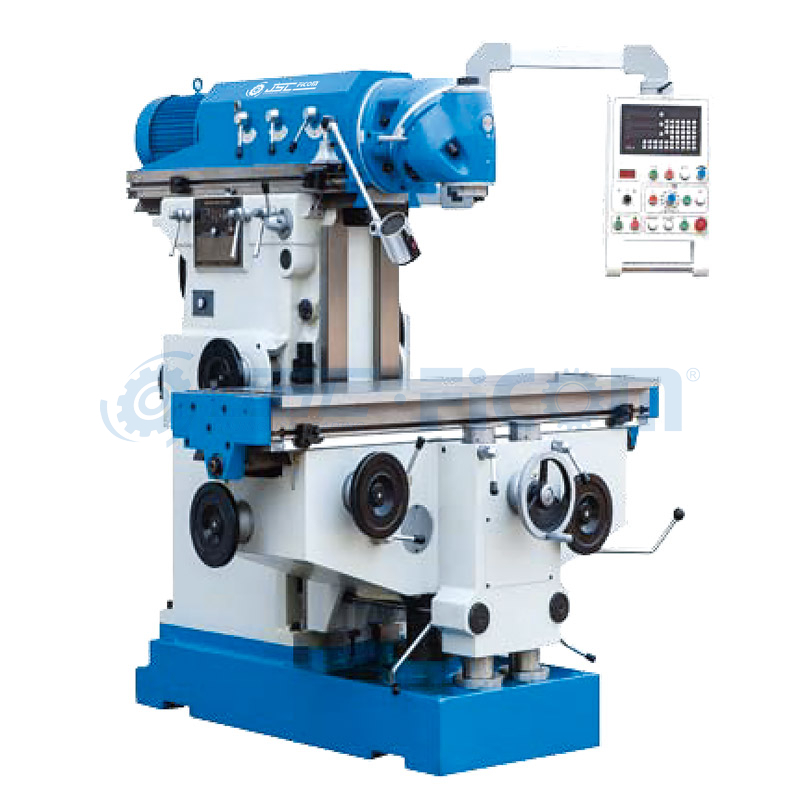

| Model No. | Unit | MT 220 | MT 220/1 |
table size | mm | 1635×460 (64.37"×18.19") | 1635×460 (64.37"×18.19") |
table travel | mm | 1300/470 (51.18"×18.50") | 1500/470 (59.06"×18.50") |
number/width/distance of T-slot | mm | 5/18/80 | 5/18/80 |
spindle taper | ISO50 | ISO50 | |
distance from spindle nose to table surface | mm | 40~510(1.57"~20.08") | 40~510(1.57"~20.08") |
distance from spindle axis to column surface | mm | 68~718(2.68"×28.27") | 68~718(2.68"×28.27") |
ram travel manual/auto | mm | 700/650(27.56"/25.59") | 700/650(27.56"/25.59") |
spindle speed | rpm | 30-20500/27steps | 30-20500/27steps |
table/ram feed nos | Stepless | Stepless | |
table feed speed | mm/min | longitudinal: 10-1000 vertical: 6-64 | longitudinal: 10-1000 vertical: 6-640 |
ram feed speed | mm/min | 10-1000 | 10-1000 |
table feed speed | mm/min | longitudinal: 2200 vertical: 1460 | longitudinal: 2200 vertical: 1460 |
ram rapid | mm/min | 2200 | 2200 |
main motor | kW | 7.5 | 7.5 |
feed servo motor | kW | 4.4 28.4N/m | 4.4 28.4N/m |
overall dimension | mm | 2100×2621×1965 | 2100×2986×1965 |
N.W. | kg | 3500 | 3700 |
| Model No. | Unit | MT 220 | MT 220/1 |
table size | mm | 1635×460 (64.37"×18.19") | 1635×460 (64.37"×18.19") |
table travel | mm | 1300/470 (51.18"×18.50") | 1500/470 (59.06"×18.50") |
number/width/distance of T-slot | mm | 5/18/80 | 5/18/80 |
spindle taper | ISO50 | ISO50 | |
distance from spindle nose to table surface | mm | 40~510(1.57"~20.08") | 40~510(1.57"~20.08") |
distance from spindle axis to column surface | mm | 68~718(2.68"×28.27") | 68~718(2.68"×28.27") |
ram travel manual/auto | mm | 700/650(27.56"/25.59") | 700/650(27.56"/25.59") |
spindle speed | rpm | 30-20500/27steps | 30-20500/27steps |
table/ram feed nos | Stepless | Stepless | |
table feed speed | mm/min | longitudinal: 10-1000 vertical: 6-64 | longitudinal: 10-1000 vertical: 6-640 |
ram feed speed | mm/min | 10-1000 | 10-1000 |
table feed speed | mm/min | longitudinal: 2200 vertical: 1460 | longitudinal: 2200 vertical: 1460 |
ram rapid | mm/min | 2200 | 2200 |
main motor | kW | 7.5 | 7.5 |
feed servo motor | kW | 4.4 28.4N/m | 4.4 28.4N/m |
overall dimension | mm | 2100×2621×1965 | 2100×2986×1965 |
N.W. | kg | 3500 | 3700 |
