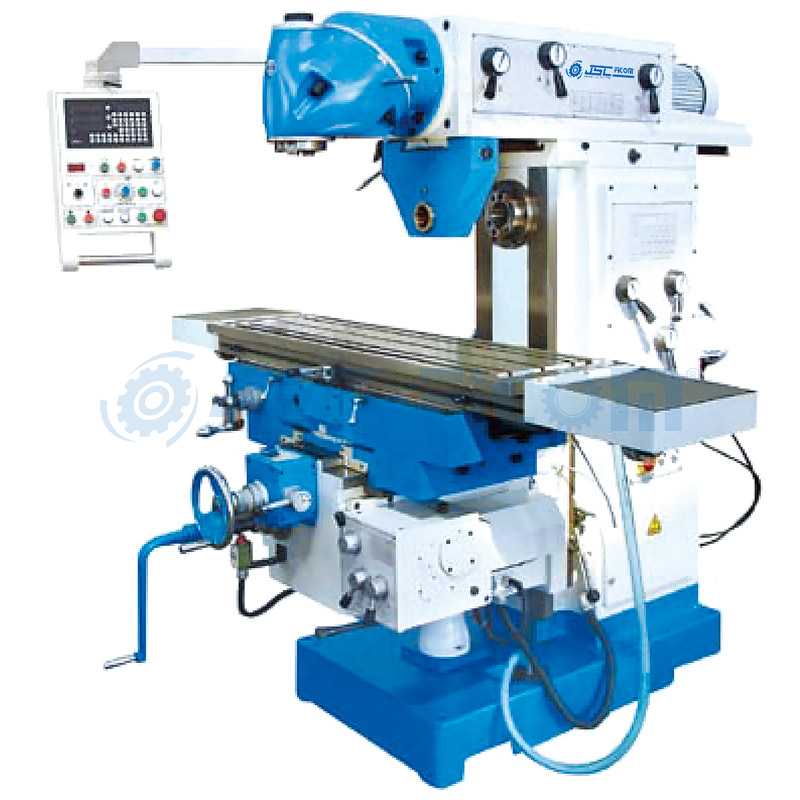

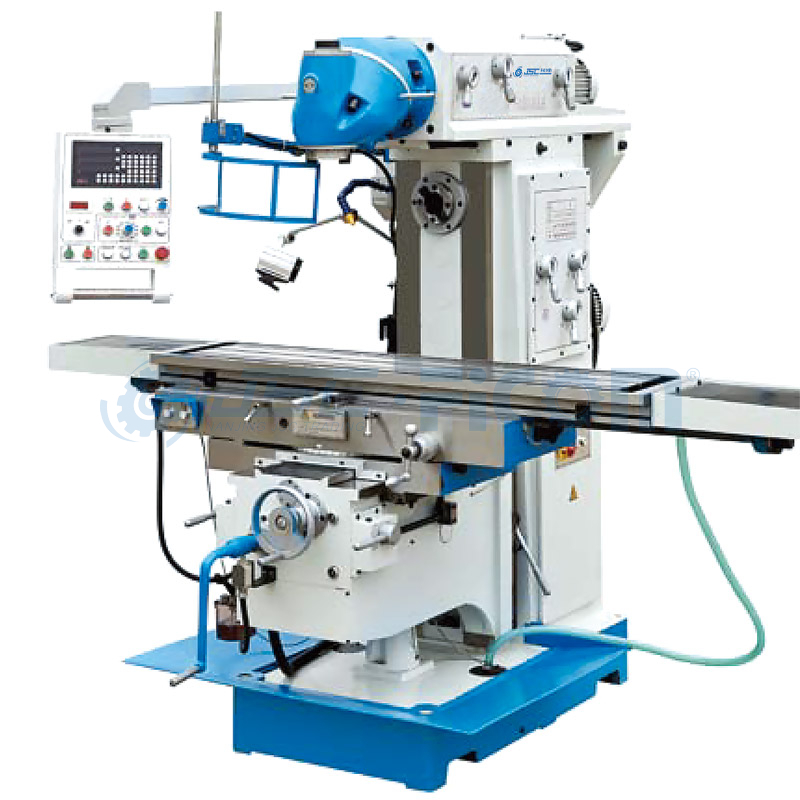

| Model No. | Unit | MT 200 | MT 200A | MT 200A/1 |
table size | mm | 1650×360 (64.96"×14.17") | 1320×360 (51.97"×14.17") | 1650×360 (64.96"×14.17") |
longitudinal/traverse/vertical travel | mm | 1300/320/420 (51.18"/12.60"/16.54") | 1000/300/400 (39.37"/11.81"/15.75") | 1300/300/400 (51.18"/11.81"/15.75") |
T-slot | mm | 3/14/95 | 3/14/95 | 3/14/95 |
spindle taper | 7:24 ISO50 | 7:24 ISO50 | 7:24 ISO50 | |
spindle speed | rpm | H: 12 steps 58~1800 V: 12 steps 60~1750 | H: 12 steps 58~1800 V: 12 steps 60~1750 | H: 12 steps 58~1800 V: 12 steps 60~1750 |
distance from horizontal axis to table surface | kW | 0-420 | 0-400 | 0-400 |
distance from spindle nose to table surface | mm | 170--590(6.69"-23.23") | - | - |
distance from table center to column surface | mm | 230--550(9.06"-21.65") | - | - |
distance from spindle axis to ram surface | mm | - | 175-590(6.89"-23.23") | 175-590(6.89"-23.23") |
table swivel degree | ° | ±35 | ±35 | ±35 |
arm travel | mm | 500(19.69") | 500(19.69") | 500(19.69") |
table feed speed | Longitudinal/cross: 25~800 Vertical: 8-267 Rapid: Longitudinal/traverse: 1200 Vertical: 400 | |||
horizontal | kW | 5.5(H), 4(V) | 4(H/V) | 4(H/V) |
feed servo motor | kW | 1.8, 11.5N·M | - | - |
overall size(L×W×H) | mm | 2550×2161×2102 | 2070×2025×2020 | 2550×2025×2020 |
N.W. | kg | 2850 | 2480 | 2580 |
