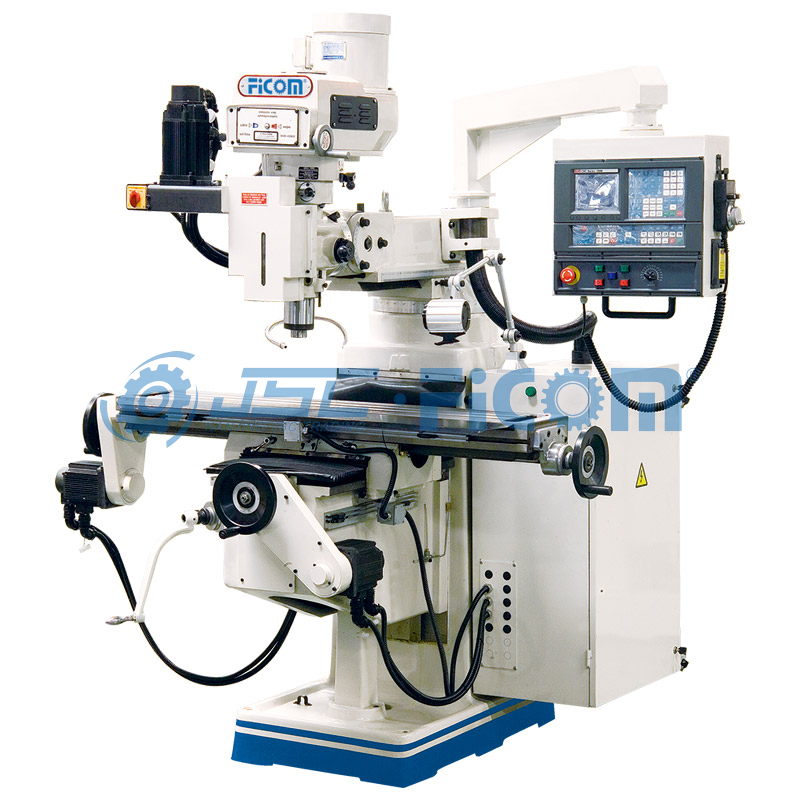

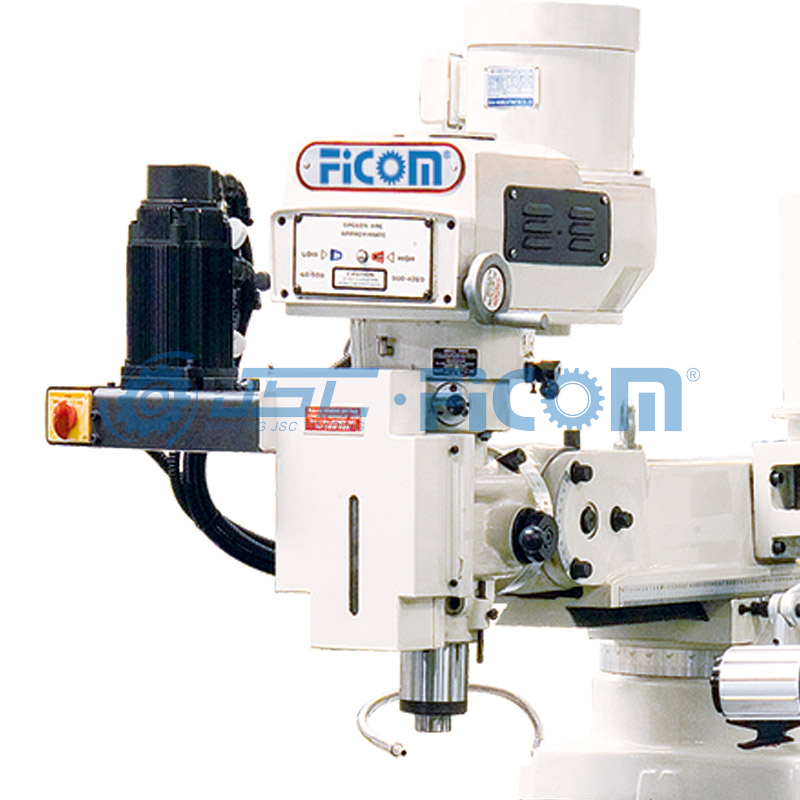

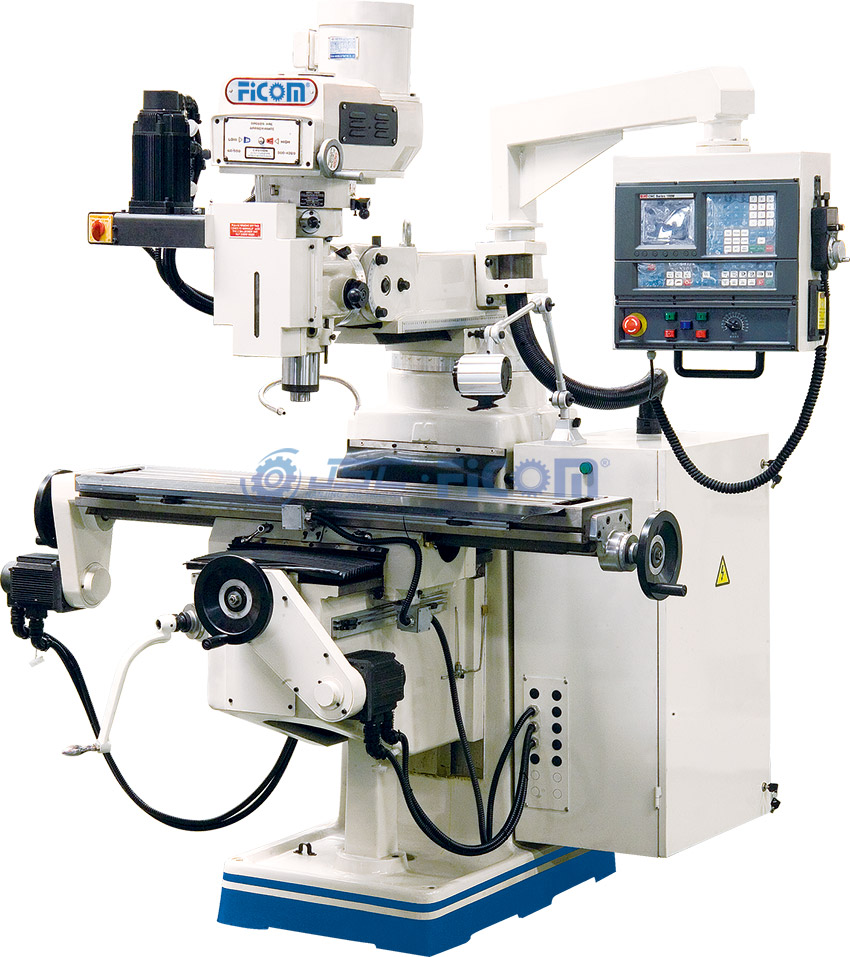

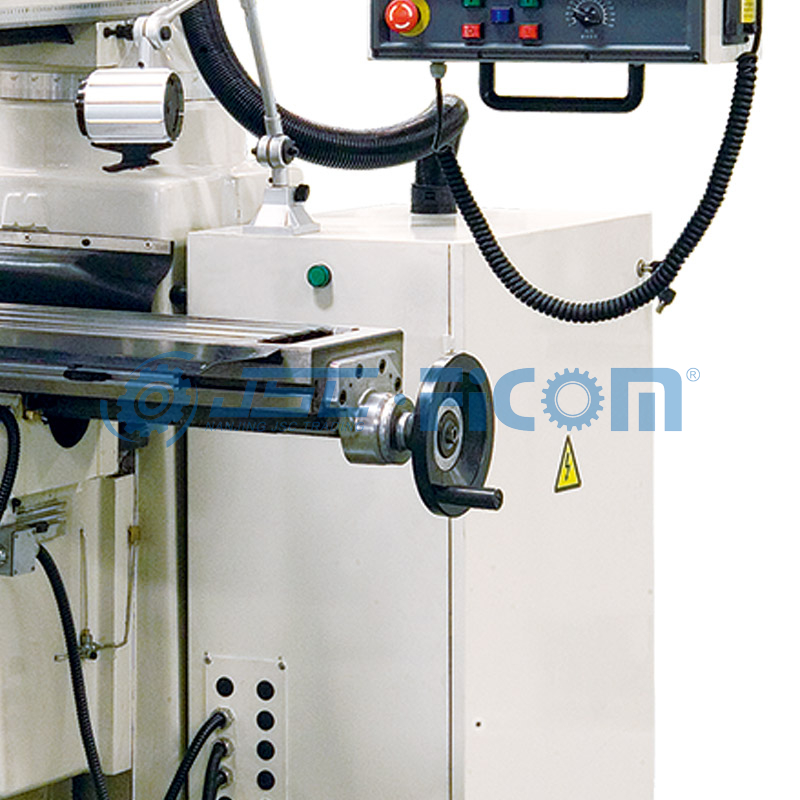

MK Series Universal Turret NC Milling Machine

Overview

Technical Parameters

Model No.			Unit	MK6323A	MK6323B	MK6325	MK6325A	MK6325B	MK6325C	MK6325D	MK6330	MK6330A
work table size			mm	230×1067		254×1270					305×1370
				230×1246		254×1370					305×1500
T-slots				3×16mm
table loading			Kg	200		280					350
X axis(table longitudinal move) travel			mm	550		750					800
				740		850					900
Y axis(table cross move) travel			mm	300		400	380	380	400	400	360	360
Z axis(quill move) travel			mm	127
X/Y/Z axis rapid feed			mm/min	5000
X/Y/Z axis servo motor			Kw	1
knee vertical travel			mm	380		400					410
ram travel			mm	315		465					500
distance from spindle to table			mm	0-380		0-400					0-410
milling head	spindle speed	standard:16 steps	rpm	50Hz:60-4500/60Hz:80-5440
		optional:variable		65-4200							60-3750
	spindle taper			standard:R8 / optional:ISO40							ISO40
	motor power		HP	3HP					5HP
	head rotating	swiveling	°	90	90	90	90	90	90	90	90	90
		tilting	°	45	45	45	45	45	45	45	45	-
CNC				KND/HD500/GSK
package size			cm	165×190×246		190×200×246					200×200×246
G.W.			Kg	1200		1500			1700		1900
