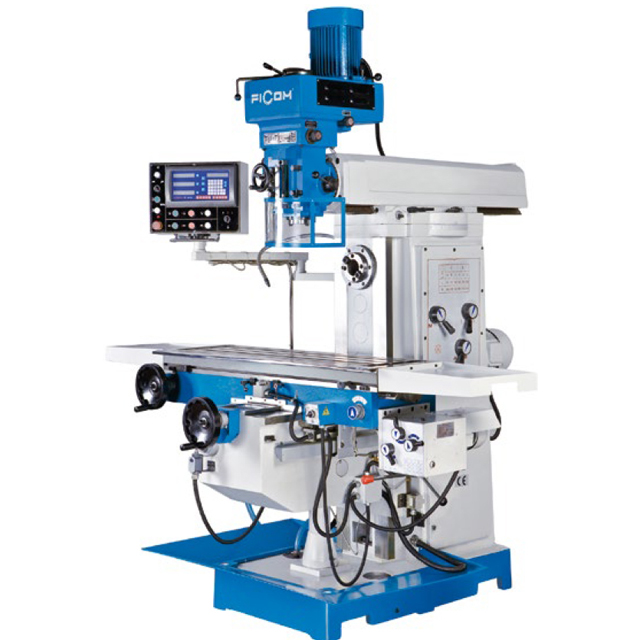

MH6336
FICOM
| Model No. | MH6336 |
| work table size | 1320×360mm |
| number/width/distance of T-slot | 3-18-80mm |
| table travel | 900×300×450mm |
| taper of spindle bore | ISO40(V)/ISO50(H) |
| range of spindle speed | 70-3620rpm/10steps(V)/58-1800rpm/12STEPS(H) |
| max.drilling dia | 30mm |
| max. end milling capacity | 125mm |
| max. vertical milling dia. | 25mm |
| max. tapping dia | M16 |
| quill travel | 140mm |
| max.swivel angle of headstock | ±45° |
| vertical spindle axis to column surface | 150-550mm |
| vertical spindle nose to table surface | 200-650mm |
| horizontal spindle axis to table surface | 0-450mm |
| longitudinal/transverse feed | 15-370/15-370/575mm/min |
| spindle motor power | 3.7Kw(V)4.0Kw(H) |
| packing size | 2070×2020×2330mm |
| G.W. | 2200Kg |
| drill chuck | drawbar | work lamp | milling vice |
| coolant system | chip tray | X-axis mechanical power feed | Y-axis mechanical power feed |
| toolbox&tools | operation manual | quality certificate | packinglist |
| DRO | vise | milling collet chuck | rotary table |
| dividing head | 58 pcs clamping kits | keyless drill chuck |
