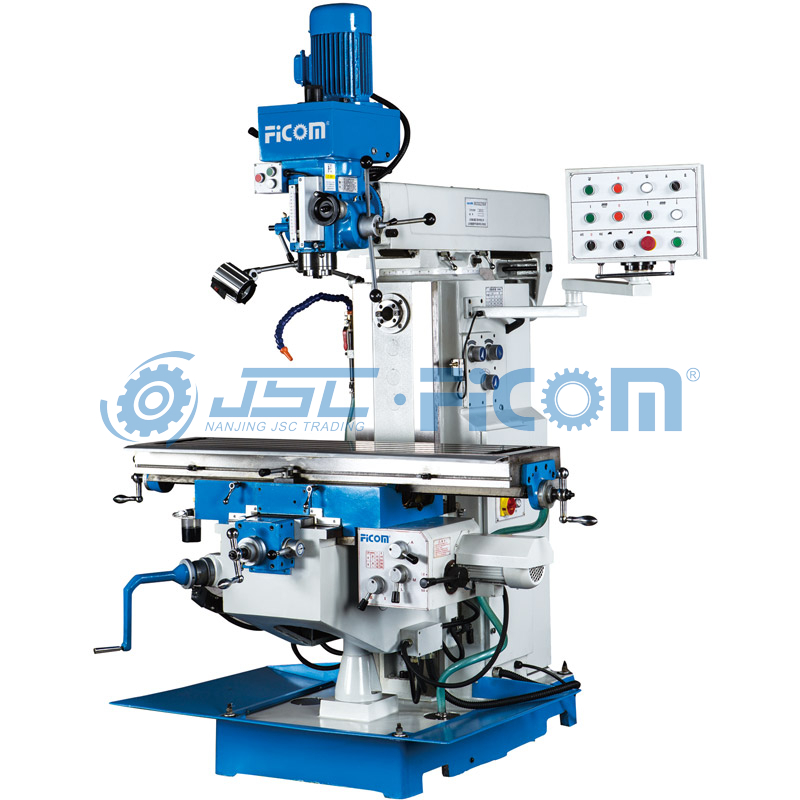

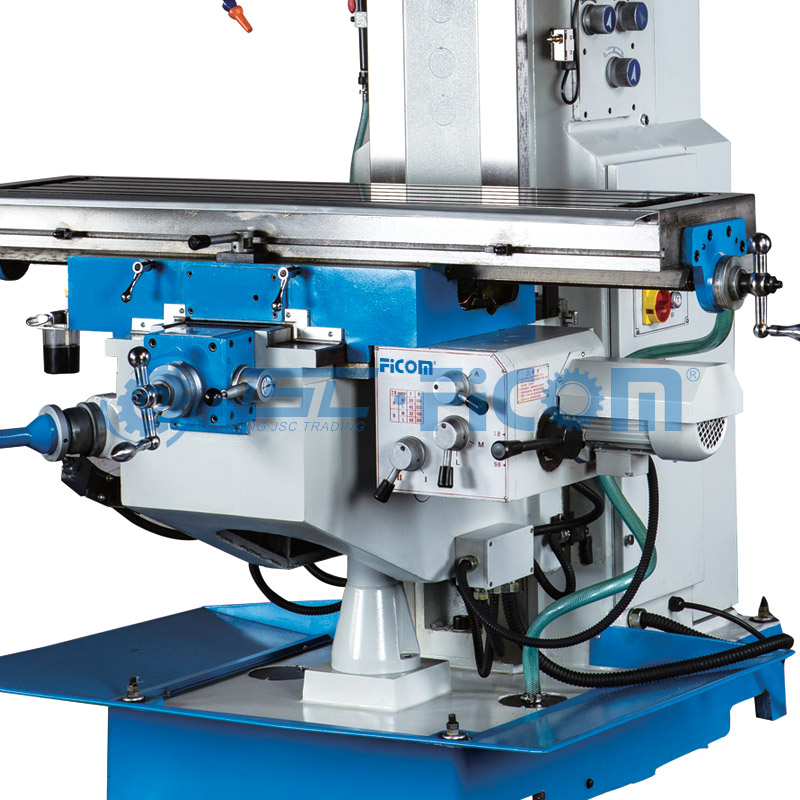

MH6332 Milling Machine

Availability:

  • MH6332

  • FICOM

Overview



MH6332


Technical Parameters
Model No. MH6328B MH6332C MH6332Z
table size 1120×260mm 1270×320mm 1320×320mm
table travel 600×270×300mm 780×300×380mm 800(750)×300mm
number/width/distance of T-slot 3-14-63mm 5-14-70mm 5-14-70mm
spindle taper ISO40 ISO40 ISO40
distance between spindle nose and table surface 100-400mm 150-500mm 150-550mm
distance between spindle axis and column surface 100-650mm 150-550mm 200-780mm
spindle travel 127mm 127mm 120mm
spindle speed range

65-4500rpm(V)

40-1300rpm(H)

70-3620rpm(V)

60-1350rpm(H)

90-2000mm(V)

40-1300mm(H)
spindle motor power 2.2Kw 3.7Kw(V)2.2Kw(H) 2.2(V/H)
overall dimension 1710×1480×100mm 1720×1520×2225mm 1710×1720×2330mm
G.W. 1350Kg 1650Kg 2000Kg


Standard Accessories
drill chuck drawbar work lamp milling vice
coolant system chip tray X-axis mechanical power feed Y-axis mechanical power feed
toolbox&tools operation manual quality certificate packinglist


Optional Accessories
DRO vise milling collet chuck rotary table
dividing head 58 pcs clamping kits keyless drill chuck
