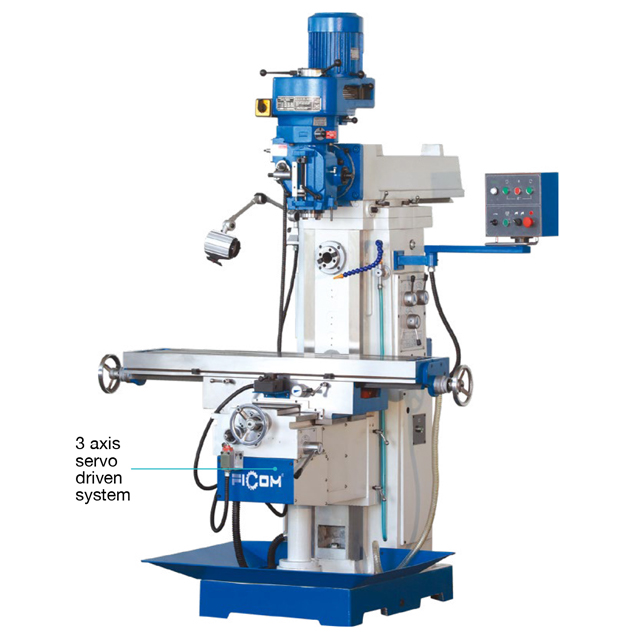

MH6330/MH6330A Milling Machine

Availability:
Quantity:
Inquire Add to Basket

  • MH6330/MH6330A

  • FICOM

Overview



-1


Technical Parameters
Model No. MH6330 MH6330A
table size 1270×300mm 1370×300mm
table travel (X, Y, Z) 720/300/400mm 820/300/400mm
spindle taper(vertical) 3HP: R8 or ISO30; 5HP: ISO40 3HP: R8 or ISO30; 5HP: ISO40
spindle taper(horizontal) IS040  IS040
table feed (X,Y,Z) variable variable

distance between spindle nose and table surface

 75-475mm 75-475mm
distance between spindle axis and ram surface 200mm 200mm
spindle speed range

43-3225r/min

65-4660 (16 steps)

12 steps 35-1500

43-3225r/min

65-4660 (16 steps)

12 steps 35-1500
number/width/distance of T-slot 3/14/80mm 3/14/80mm
arm travel 450mm 450mm
main motor power 3HP or 5HP 3HP or 5HP
overall size 1720×1680×2350mm 1820×1680×2350mm
G.W. 1650Kg 1700Kg


Standard Accessories
drill chuck drawbar work lamp milling vice
coolant system chip tray toolbox&tools operation manual
quality certificate packinglist


Optional Accessories
DRO vise milling collet chuck rotary table
dividing head 58 pcs clamping kits keyless drill chuck
