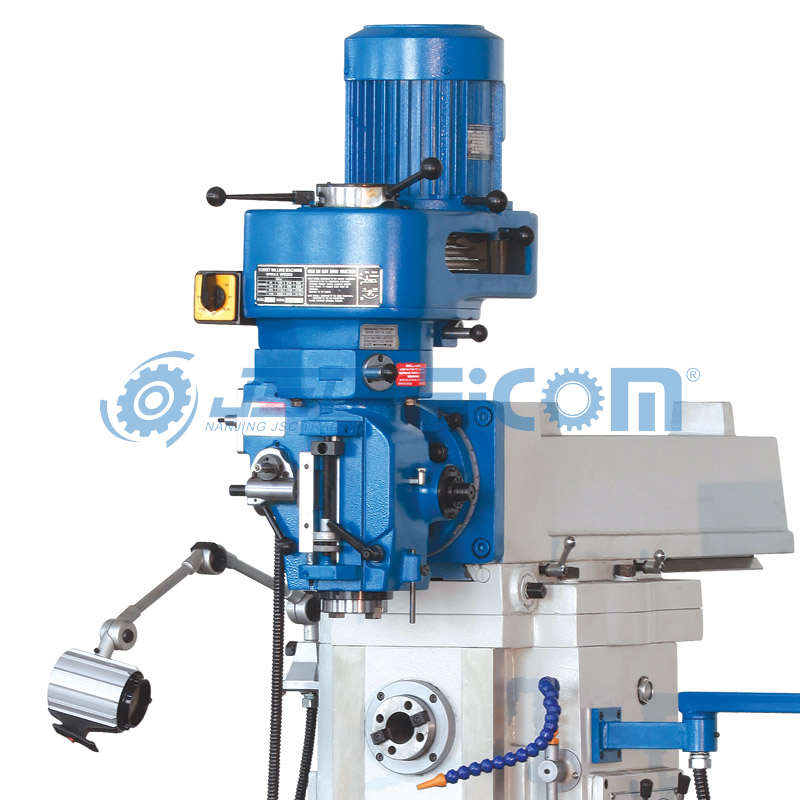

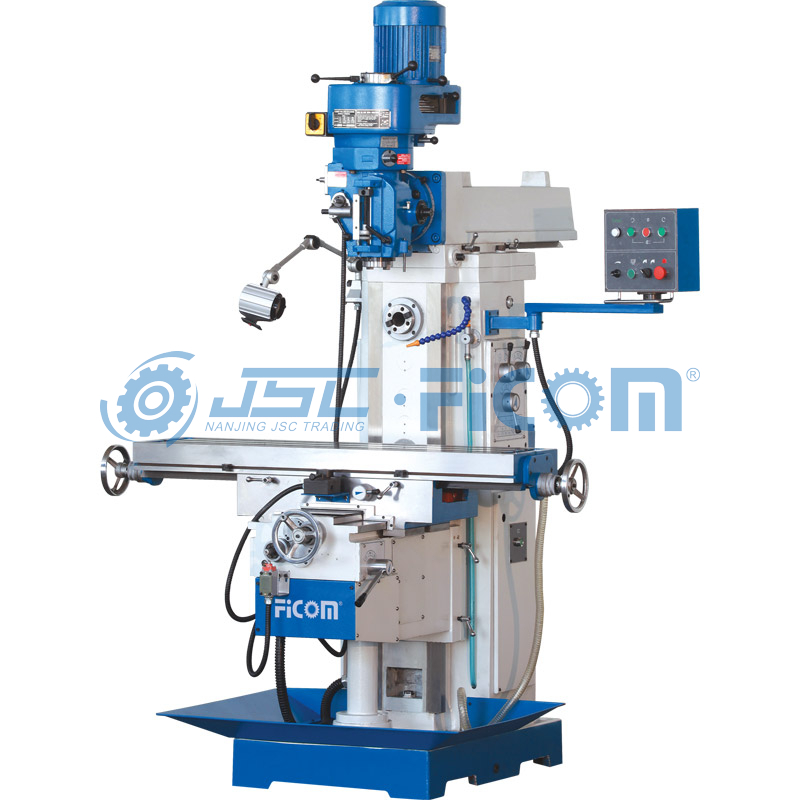

MH6330/MH6330A
FICOM
| Model No. | MH6330 | MH6330A |
| table size | 1270×300mm | 1370×300mm |
| table travel (X, Y, Z) | 720/300/400mm | 820/300/400mm |
| rapid speed of table (X,Y,Z) | 1000/1000/750mm/min | 1000/1000/750mm/min |
| spindle taper(vertical) | 3HP: R8 or ISO30; 5HP: ISO40 | 3HP: R8 or ISO30; 5HP: ISO40 |
| spindle taper(horizontal) | IS040 | IS040 |
| table feed (X,Y,Z) | variable | variable |
distance between horizontal nose and table surface | 75-475mm | 75-475mm |
| distance between spindle axis and ram surface | 200mm | 200mm |
| spindle speed range | 43-3225r/min 65-4660 (16 steps) 12 steps 35-1500 | 43-3225r/min 65-4660 (16 steps) 12 steps 35-1500 |
| T-slots(No./width/pitch) | 3/14/80mm | 3/14/80mm |
| arm travel | 450mm | 450mm |
| main motor power | 3HP or 5HP | 3HP or 5HP |
| overall size | 1720×1680×2350mm | 1820×1680×2350mm |
| N.W. | 1650Kg | 1700Kg |
| drill chuck | drawbar | work lamp | milling vice |
| coolant system | chip tray | toolbox&tools | operation manual |
| quality certificate | packinglist |
| DRO | vise | milling collet chuck | rotary table |
| dividing head | 58 pcs clamping kits | keyless drill chuck |
