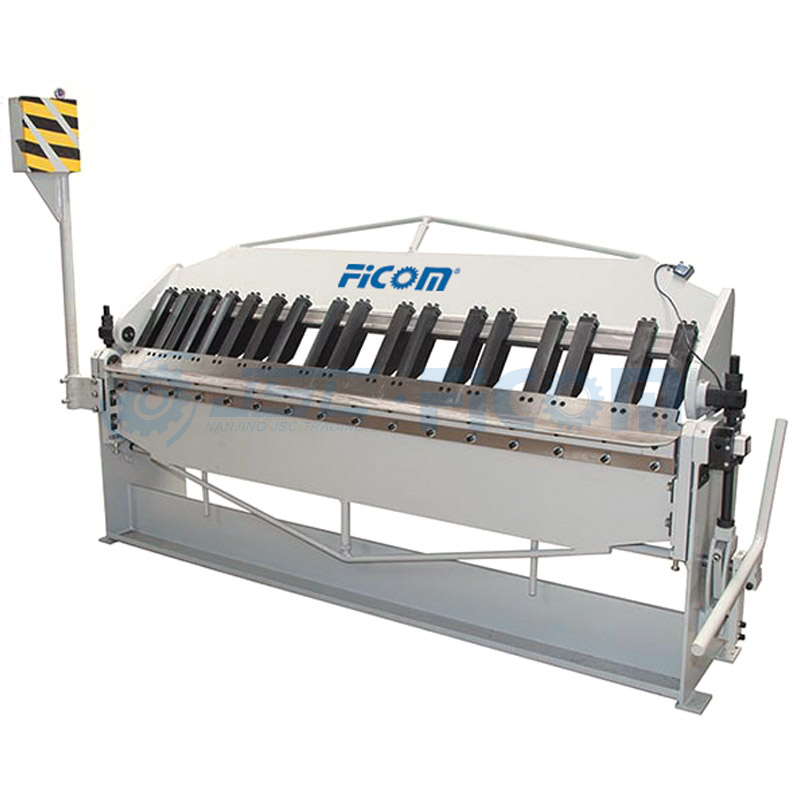

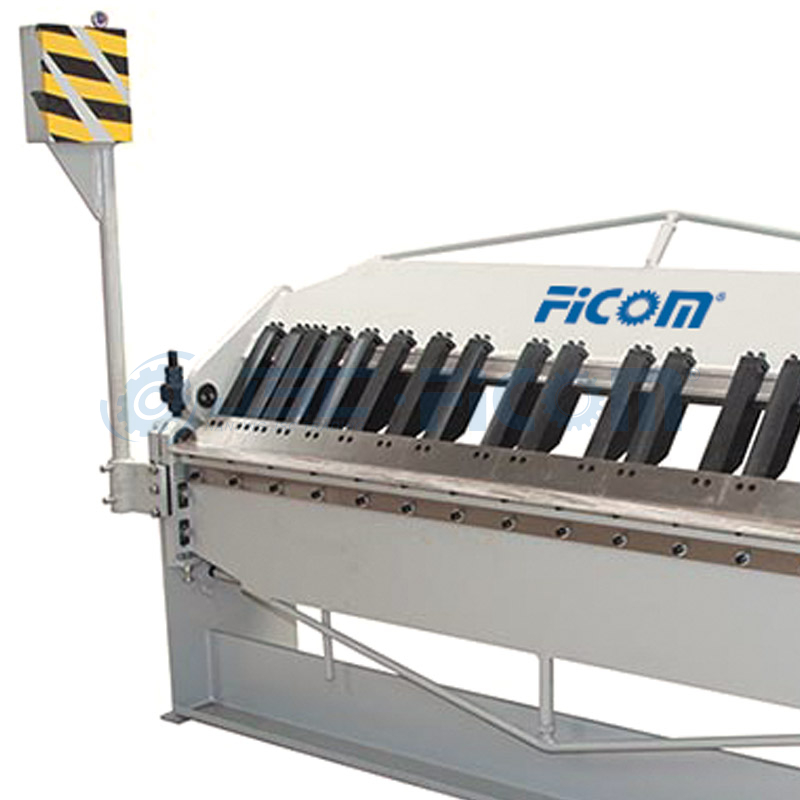

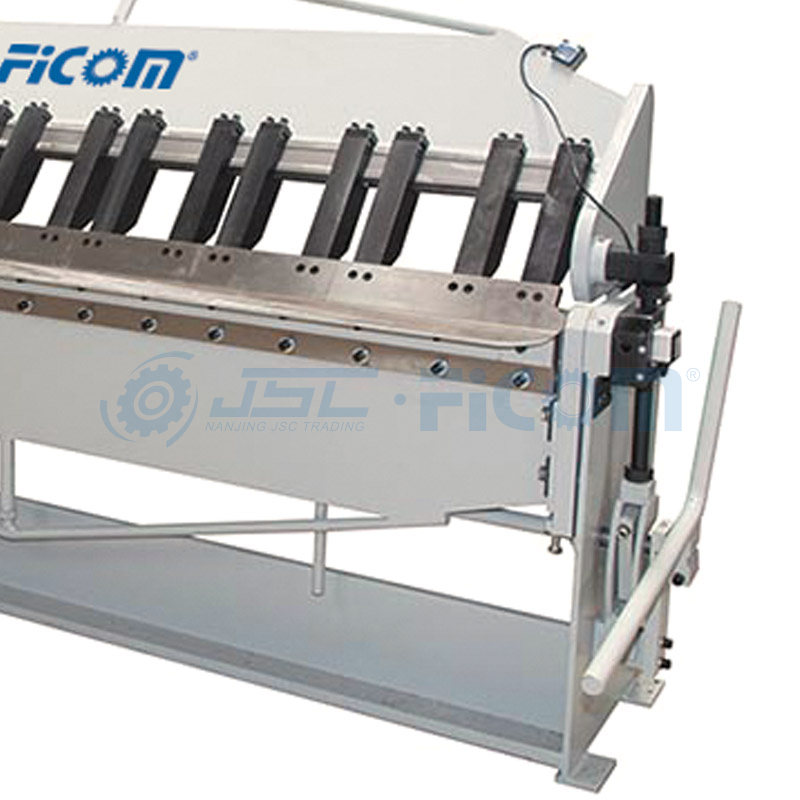

MH Manual Pan Folder

· Heavy duty steel fabricated frame provides accurate bends.
· Extended fingers allows bending of pans or boxes to a depth of 200mm.
· Ground segmented fingers can be repostioned to suit many applications.
· Safety top beam support stop lever located on right side of machine.
· Quick action beam adjustment for varying material thickness.
· Includes rear manual back gauge.
Availability:
  • MH

  • FICOM

Overview

MH-Manual-Pan-Folder

Technical Parameters
Model No. MH-2×1250 MH-2×2440
folder length 1250mm 2440mm
folder thickness 0.5~2.0mm 0.5~2.0mm
max. lift of the upper beam 220mm 220mm
angle of the bending beam 0~130° 0~130°
size(L×W×H) 1820×560×1290mm 2940×570×1470mm
G.W. 730Kg 1430Kg
