MF Hand Folder

Availability:
Quantity:
  • MF

  • FICOM

Overview


16


Technical Parameters

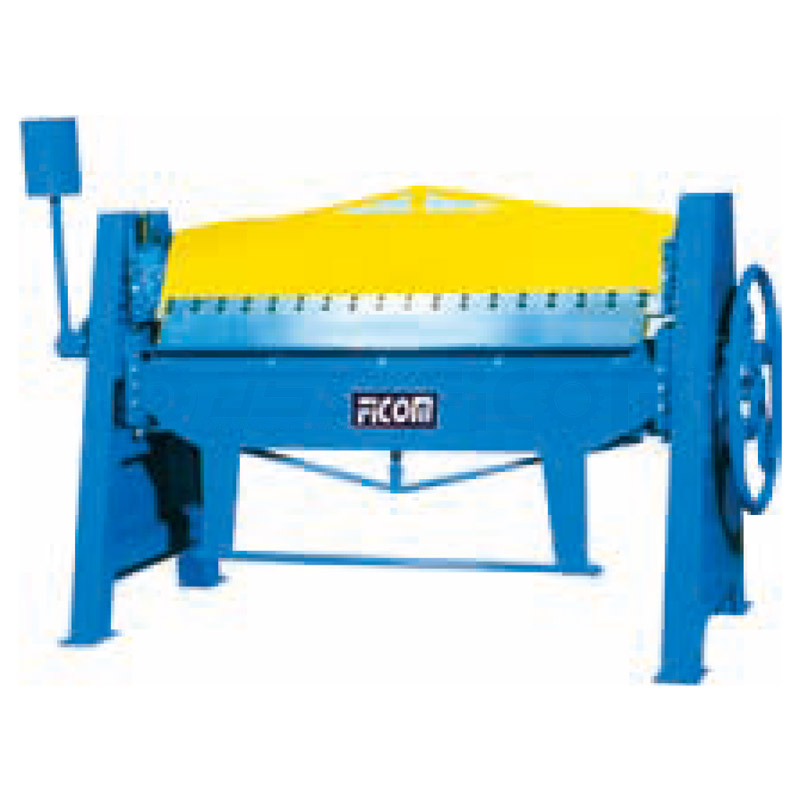

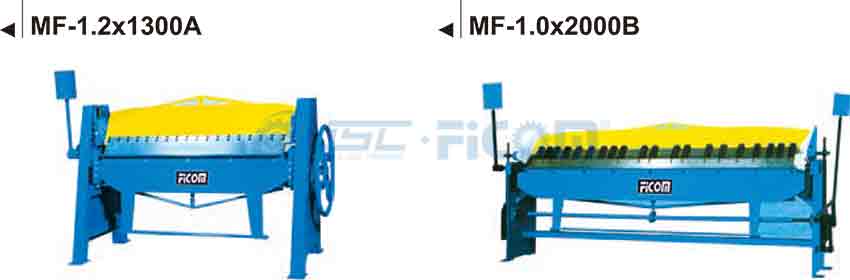

Sam Lock Series Hand Bender (Light Size, Group Tools)
Model

Bend Length

(mm)

Sheet Thickness

(mm)

Min Bend Degree

(Kw)

Weight

(Kg)

Dimension

L×W×L

MF-1.5×1300A 1300 1.5 60 430 1960×810×1360
MF-1.5×1500A 1500 1.5 60 525 2120×810×1360
MF-1.5×2050A 2050 1.5 60 635 2650×850×1360
MF-1.5×2500A 2500 1.5 60 700 3100×850×1520
MF-2×1300A 1300 2 60 510 1950×850×1350
MF-2×1500A 1500 2 60 630 2300×850×1250
MF-2×2050A 2050 2 60 1145 2850×950×1600
MF-2×2500A 2500 2 60 1300 3250×950×1600
MF-2×3100A 3100 2 60 1750 3850×950×1700

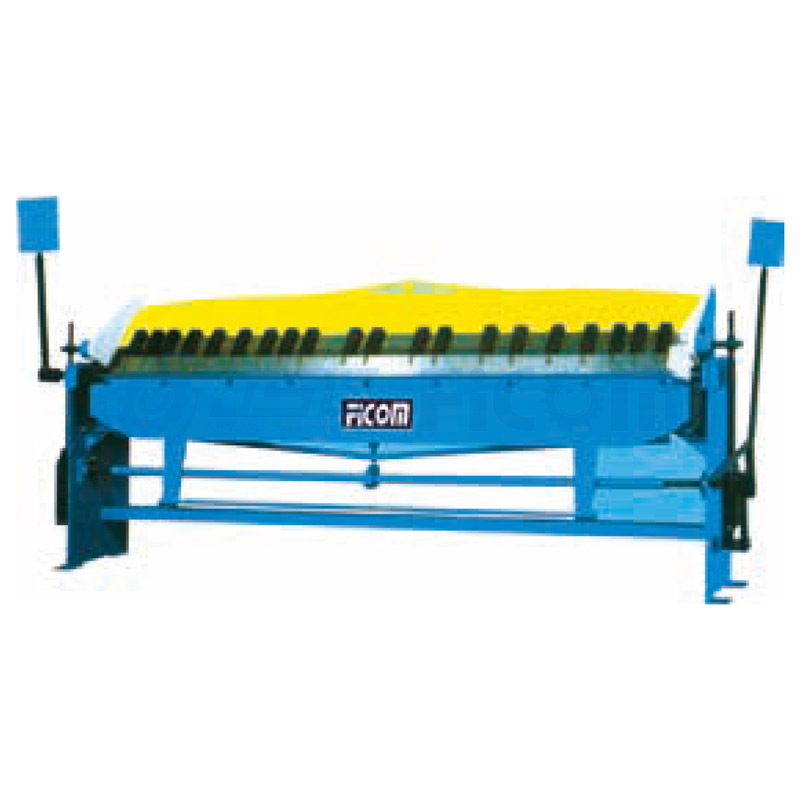

Gearing Lock Series (Light Size, Group Tools)
Model

Bend Length

(mm)

Sheet Thickness

(mm)

Min Bend Degree

(Kw)

Weight

(Kg)

Dimension

L×W×L

MF-1.2×1000B 1000 1.2 60 240 1510×810×1110
MF-1.2×1300B 1300 1.2 60 300 1810×810×1110
MF-1.2×1500B 1500 1.2 60 360 2110×810×1110
MF-1.0×2050B 2050 1.0 60 620 2610×810×1110


TDF / TDC Flange Duct Hand Folder
Model

Bend Length

(mm)

Sheet Thickness

(mm)

Min Bend Degree

(Kw)

Weight

(Kg)

Dimension

L×W×L

MF-1.5×1380T 1380 1.5 60 350 1800×800×1360
MF-1.5×1500T 1500 1.5 60 400 2000×800×1360
MF-1.5×2050T 2050 1.5 60 650 2860×850×1360
MF-1.5×2500T 2500 1.5 60 1200 3150×850×1360

Can Desigh to Air Drive
