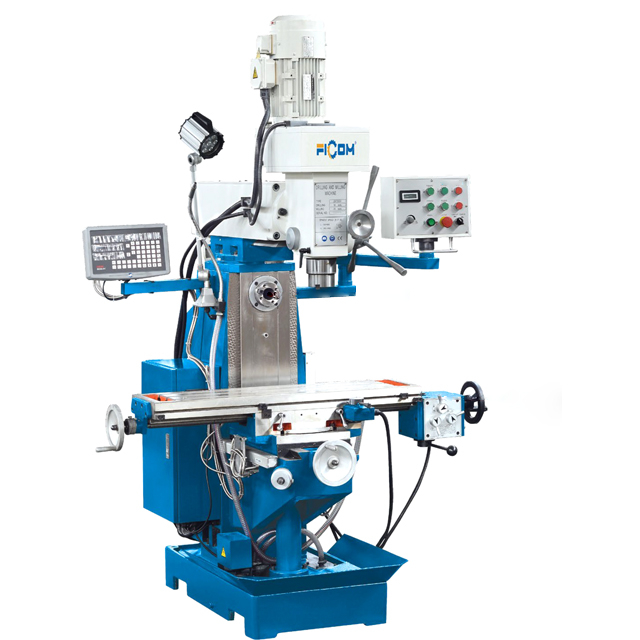

MDH60
FICOM
· Z: X Axis auto feed, with tapping
· ZA: X/Y Axis auto feed, with tapping
· ZB: X/Y Axis auto feed, Up/Down by motor on Z Axis, with tapping
· ZS: 3 Axis auto feed, speed adjustable on Z Axis, work table can be rotary to 45, with tapping
Model No. | MDH60Z/MDH60ZA/MDH60ZB/MDH60ZS |
max. tapping dia | M16 |
max. drilling capacity | 50mm |
max. end milling capacity | 25mm |
max. face milling capacity | 100mm |
work table size | 1120×260mm |
T-slot size | 14mm |
cross travel | 230mm |
longitudinal travel | 350mm |
taper of spindle bore | ISO40 |
spindle stroke | 120mm |
distance between spindle to table | 90-400mm |
range of spindle speed(vertical) | 110-1760rpm |
range of spindle speed(horizontal) | 38-1310rpm |
motor(vertical) | 0.85/1.5Kw |
motor(horizontal) | 2.2Kw |
packing size | 1500×1280×2200mm |
N.W. | 1350Kg |
drill chuck | drawbar | tapping assembly | toolbox & tools |
halogen work lamp | milling vise | coolant system | chip tray |
X axis mechanical automatic feed |
keyless drill chuck | 58pcs clamping kits | digital readout | Y,Z-axis automatic feed |
automatic spindle feed |
