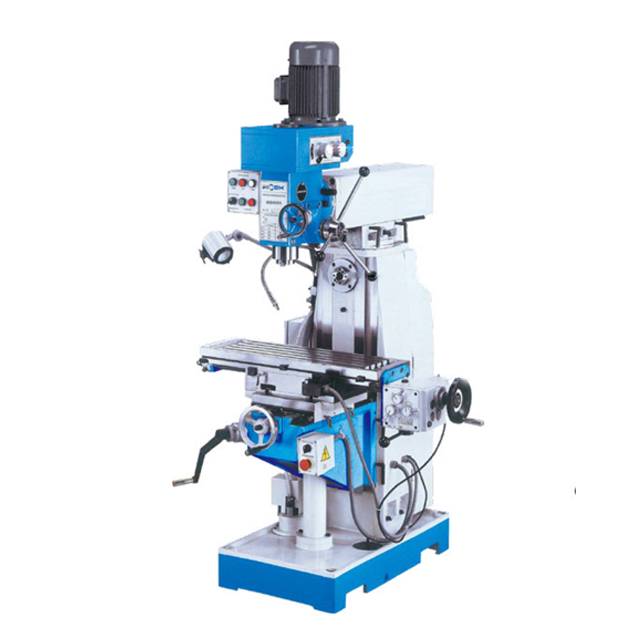

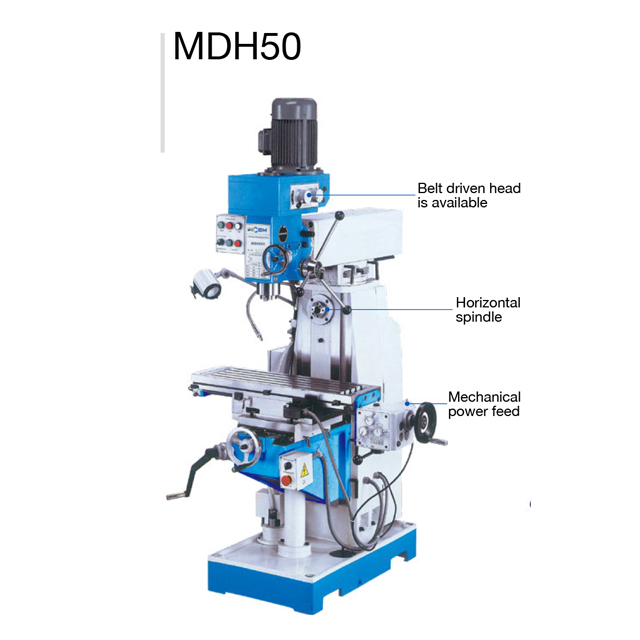

MDH50
FICOM
| Model No. | Unit | MDH50 |
| max.drilling capacity | mm | 30 |
| max.end milling capacity | mm | 25 |
| max.face milling capacity | mm | 100 |
| work table size | mm | 800×240/1000×240 |
| T-slot size | mm | 14 |
| crosstravel | mm | 230 |
| longitudinal travel | mm | 400 |
| max.tapping milling dia | M16 | |
| spindle travel | mm | 120 |
| max.distance spindle to table | mm | 70-420 |
| taper ofspindle bore | ISO40 | |
| step of spindle speed | 8 | |
| range of spindle speed(vertical) | rpm | 110-1760 |
| range of spindle speed(horizontal) | rpm | 58-1355 |
| headstock tilted left &right | 90 | |
| motor(vertical) | kW | 0.85/1.5 |
| motor(horizontal) | kW | 1.5 |
| packing size | mm | 1320×1280×2200 |
| N.W | kg | 970 |
| drill chuck | drawbar | tapping assembly | toolbox & tools |
| halogen work lamp | milling vise | coolant system | chip tray |
| X axis mechanical automatic feed | |||
| keyless drill chuck | 58pcs clamping kits | digital readout | X,Y-axis electronic power feed |
| X axis mechanical automatic feed | Automatic spindle feed |
