| Quantity: | |
|---|---|

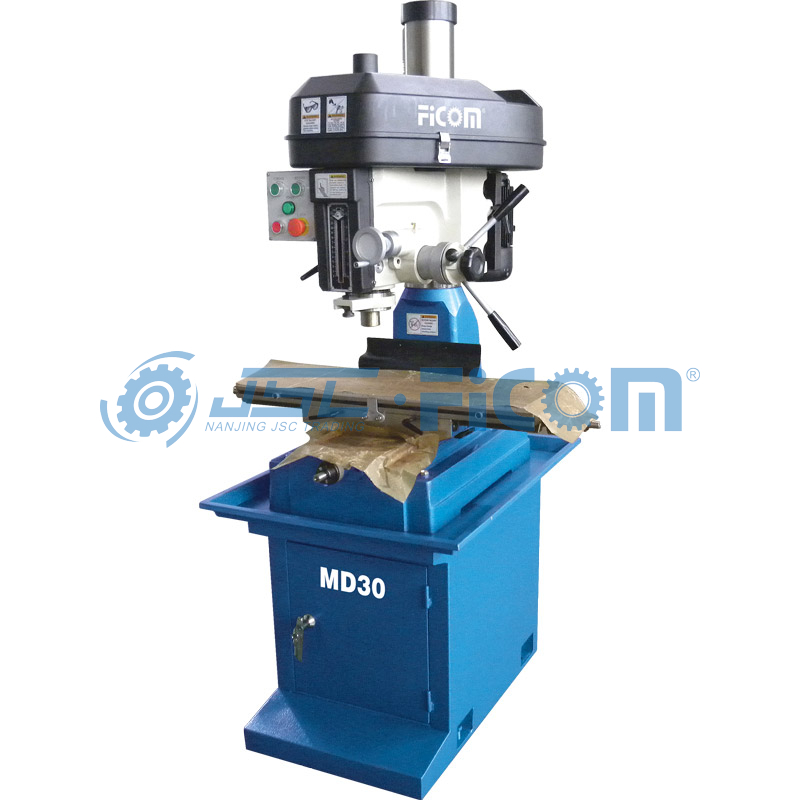

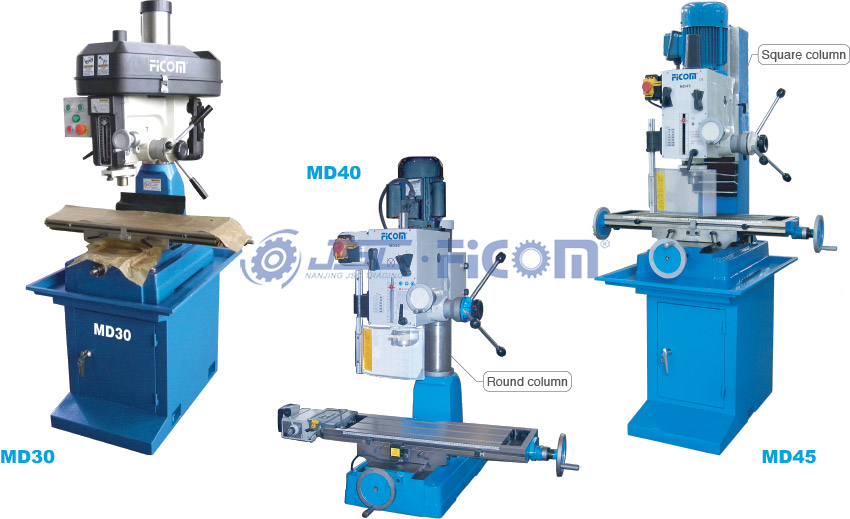

| Model No. | MD30 | MD40 | MD45 |
| max. drilling capacity | iron: 31.5 steel: 25mm | 40mm | 40mm |
| max. end milling capacity | 20mm | 32mm | 32mm |
| max. face milling capacity | 76mm | 80mm | 80mm |
| work table size | 730×210mm | 800×240mm | 800×240mm |
| T-slot size | 14mm | 12mm | 14mm |
| cross travel | 210mm | 175mm | 230mm |
| longitudinal travel | 500mm | 500mm | 560mm |
| head stroke | 300mm | 300mm | 300mm |
| taper of spindle bore | MT3 or R8 | MT4 | MT4 or R8 or ISO30 |
| spindle stroke | 120mm | 120mm | 120mm |
| max. distance spindle to table | 440mm | 470mm | 460mm |
| distance between spindle to column | 198mm | 270mm | - |
| step of spindle speeds | 12 | 6 | 6 |
| range of spindle speeds | 75-1600rpm | 75-1600rpm | 75-1600rpm |
| headstock tilted left & right | ±45° | ±90° | ±90° |
| spindle box swivel degree | 360° | 360° | - |
| motor | 1.5Kw 1450rpm | 1.1Kw | 1.1Kw |
| packing size | 950×760×1150mm | 820×770×1140mm | 820×760×1150mm |
| N.W. | 300Kg | 310Kg | 320Kg |
| drill chuck | drawbar | arbor | toolbox & tools |
| keyless drill chuck | MBV100 milling vise | doulbe speed motor | tapping assembly |
| power feed | 58pc clamping kits | coolant system | halogen work lamp |
| digital readout | collet chuck | stand & tray |
