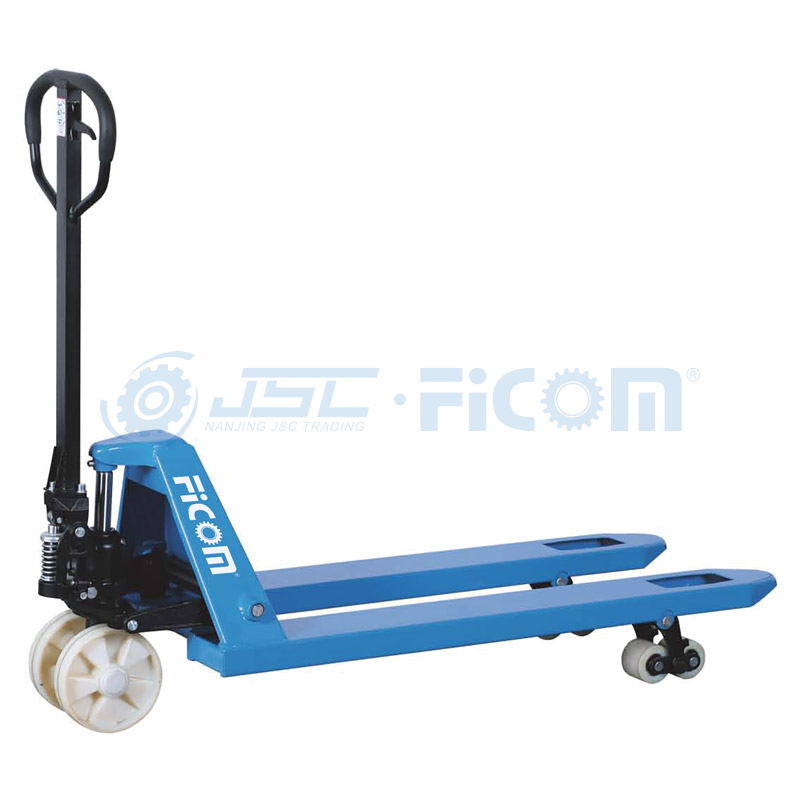

M20D / M25D / M30D Hand Pallet Truck

·The simple and compact pump body, easy to repair. Advanced and proven hydraulic technique, high quality and good performance.

·Turning point of the key institutions are equipped with oil-free selt lubricating bearings and injection nozzles, it can reduce operationg power, reduce noise and prolong the truck’s life.

·Standare Ficom handle with more scientific ergonomic design, improves the comfortableness and reduces the fatigue.

·Conforms to EN ISO3691-5:2009
Availability:
Quantity:
  • M20D / M25D / M30D

  • FICOM

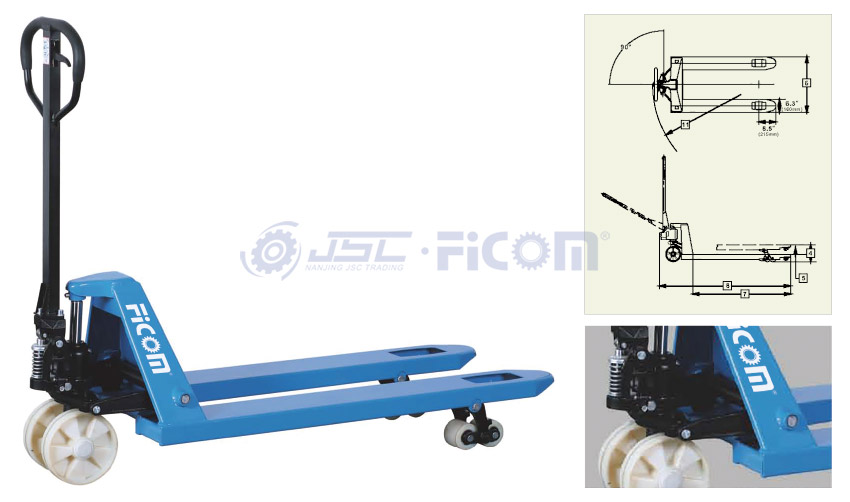

Overview


99

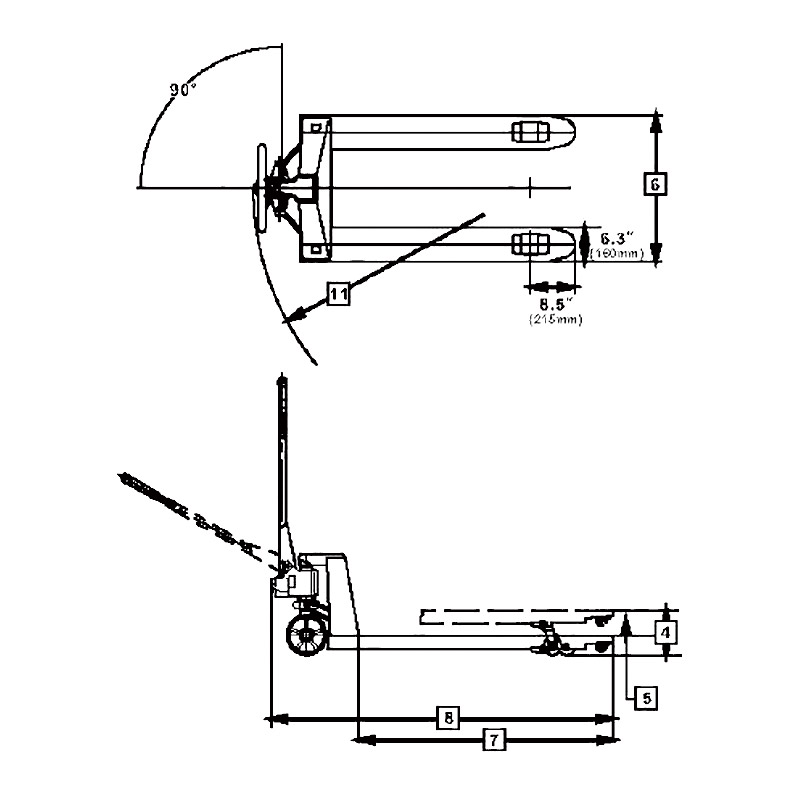

Technical Parameters

99-2

Model

Unit

M20D / M25D / M30D

Load Capacity (kg) 2000/2500/3000
Lifting Height (mm)(4) 190/200
Min. Fork Height (mm)(5) 75/85
Outside Fork Spread (mm)(6) 450/520/540/685
Fork Length (mm)(7) 800/900/1000/1100/1150/1220
Overrall Length (mm)(8) 1230/1330/1430/1530/1580/1650
Steering Wheel (mm) φ180×50/φ200×50
Load Roller (mm) φ80×70/φ74×70/φ74×93
Turning Radius (mm)(11) 1250
