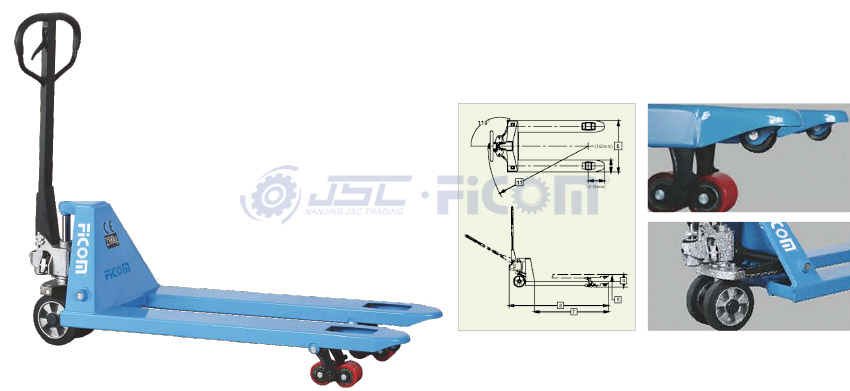

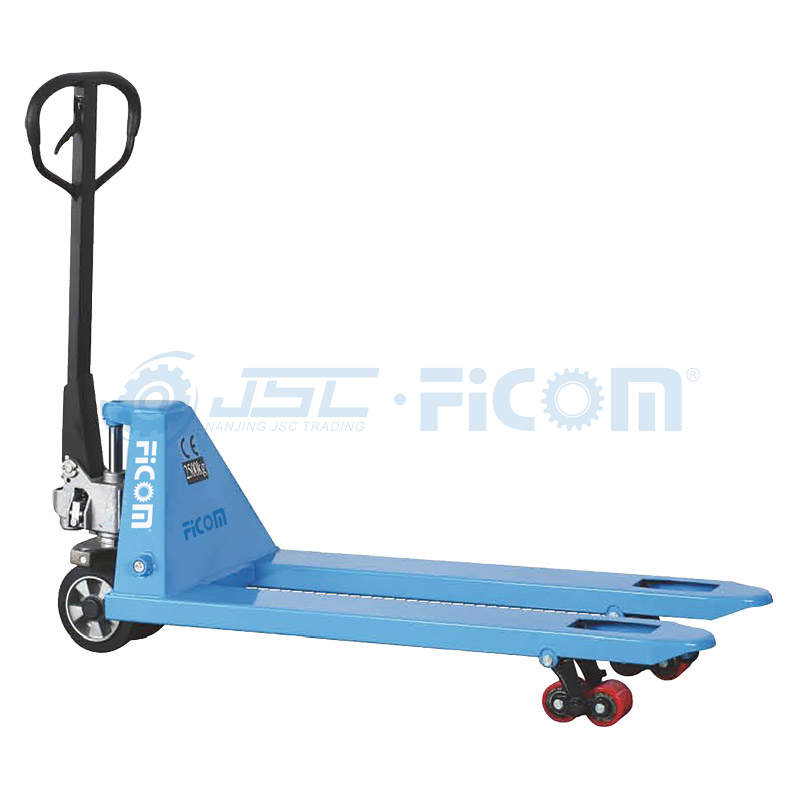

M20 / M25 / M30 Hand Pallet Truck

·The integral-type pump body contains hydralic circuit and hydraulic oil tank, which ensures the entire hydraulic system completely sealed and solves the common problem of oil leaking.

·Turning point of the key institutions are equipped with oil-free self lubricating bearings and injection nozzles, it can reduce operating power, reduce noise and prolong the truck's life.

·Standard Ficom Handle with more scientific ergonomic design, improves the comfortableness and reduces the fatigue.

Quantity:
  • M20 / M25 / M30
  • FICOM
Overview

·Nylong guide wheel can save the operator's strength and protect the loading wheels.

·All back of the forks have strengthening units, which ensures the intersity and durability of the truck.

·Single and Tandem wheels can be opted for different market.

·PU/NYLON/RUBBER wheels can be opted for different working circumstance.

·Original German seal ring can guarantee the service lift up to 3 years.

·Each hydraulic unit shall pass the 3 times of the rated capacity load static pressure test after assembling, ensuring that each hydraulic unit is 100% sealed and without any oil leakage before shipment.

·Conforms to EN ISO3691-5:2009


98

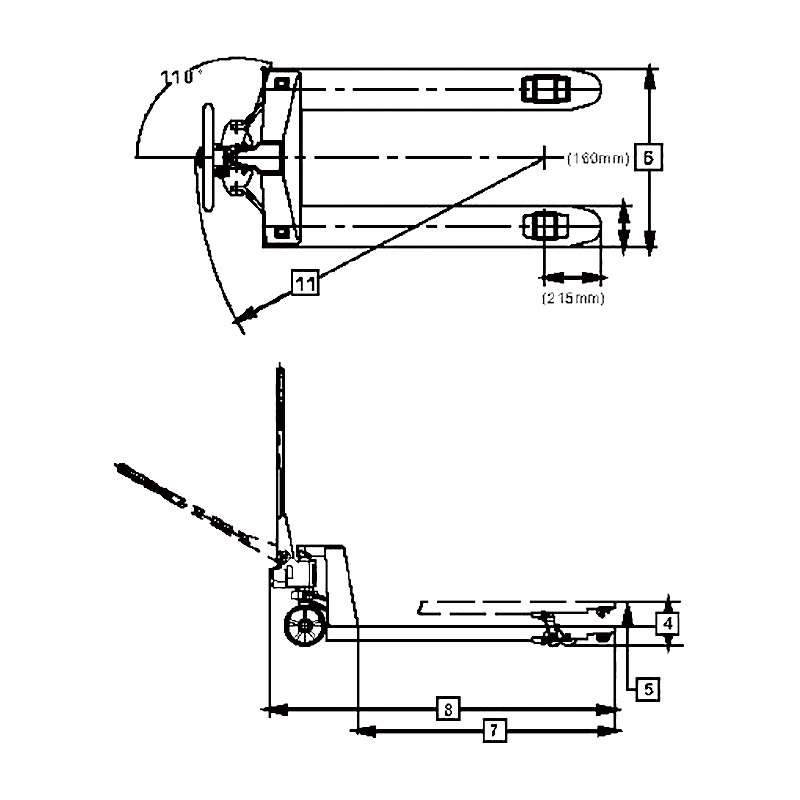

Technical Parameters

98-2

Model

Unit

M20 / M25 / M30

Load Capacity (kg) 2000/2500/3000
Lifting Height (mm)(4) 190/200
Min. Fork Height (mm)(5) 75/85
Outside Fork Spread (mm)(6) 450/520/540/685
Fork Length (mm)(7) 800/900/1000/1100/1150/1220
Lifting Height (mm)(8) 1230/1330/1430/1530/1580/1650
Steering Wheel (mm) φ180×50/φ200×50
Load Roller (mm) φ80×70/φ74×70/φ74×93
Turning Radius (mm)(11) 1250
