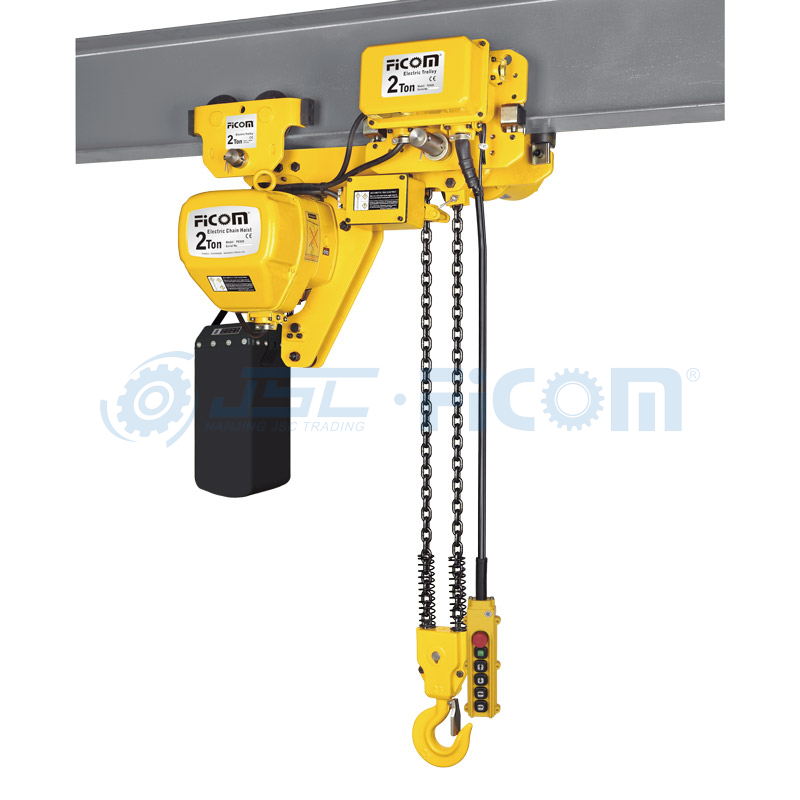

Low Headroom Electric Chain Hoist Model: STD-L (Capacity : 0.5 to 10Ton, Single Speed (without trolley))

Ultra Low Headroom electric chain Headroom Comparison hoist is uniquely designed to have a shorter headroom than that of standard configurations.This product is the most suitable for installation which requires a low ceiling of buildings or maximizes effective lift.

Quantity:
  • STD-L
  • FICOM
Overview

Capacity : 0.5 to 10Ton, Single Speed (without trolley)

35

Technical Parameters

Capacity

(t)

Model

STD-L
Trolley

Lifting

Speed

(m/min)

Motor

Power

(Kw)

No. of

Chai


Chain

Size


Travel

Speed

(m/min)

Motor

Power

(Kw)

Beamwideth

(mm)

0.5 STD-L-0.5-01S 7.8 0.8 1 6.3×19 11 or 21 0.4 68-130
1 STD-L-01-01S 6.6 1.5 1 7.1×21 11 or 21 0.4 68-130
2 STD-L-02-01S 6.6 3.0 1 10×30 11 or 21 0.4 82-153
STD-L-02-02L 3.3 1.5 2 7.1×21
3 STD-L-03-01S 5.4 3.0 1 11.2×34 11 or 21 0.75 82-153
STD-L-03-02L 4.4 3.0 2 10×30
5 STD-L-05-02S 2.7 3.0 2 11.2×34 11 or 21 0.75 100-178
7.5 STD-L-7.5-03S 1.8 3.0 3 11.2×34 11 or 21 0.75 150-220
10 STD-L-10-04S 2.7 3.0×2 4 11.2×34 11 or 21 0.75 150-220


Size Specification (mm)

35-6

Model H A B W U

STD-L-0.5-01S

440 460 230 585 445
STD-L-01-01S 480 520 260 630 505

STD-L-02-01S

570 615 295 720 505

STD-L-02-02L

535 520 260 665 445
STD-L-03-01S 640 615 295 775 526

STD-L-03-02L

685 615 295 750 503
STD-L-05-02S 740 615 295 825 541

STD-L-7.5-03S

890 615 295 1020 730
STD-L-10-03S 850 615 295 996 700
