Low Headroom Electric Chain Hoist Model: STD-L (Capacity : 0.5 to 10Ton, Dual Speed)

Quantity:
  • STD-L
  • FICOM
Overview

Capacity : 0.5 to 10Ton, Dual Speed

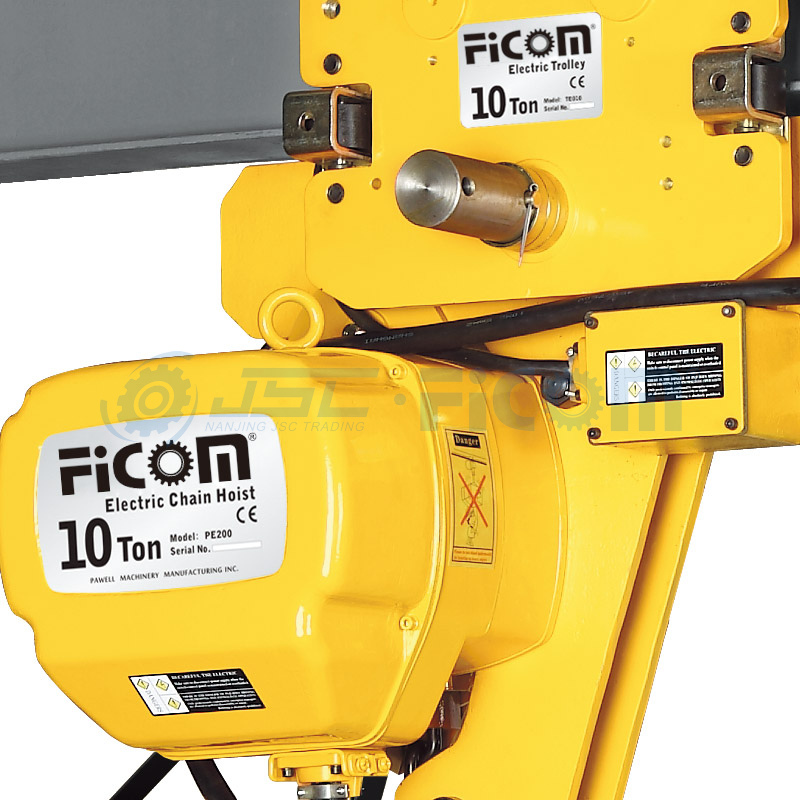

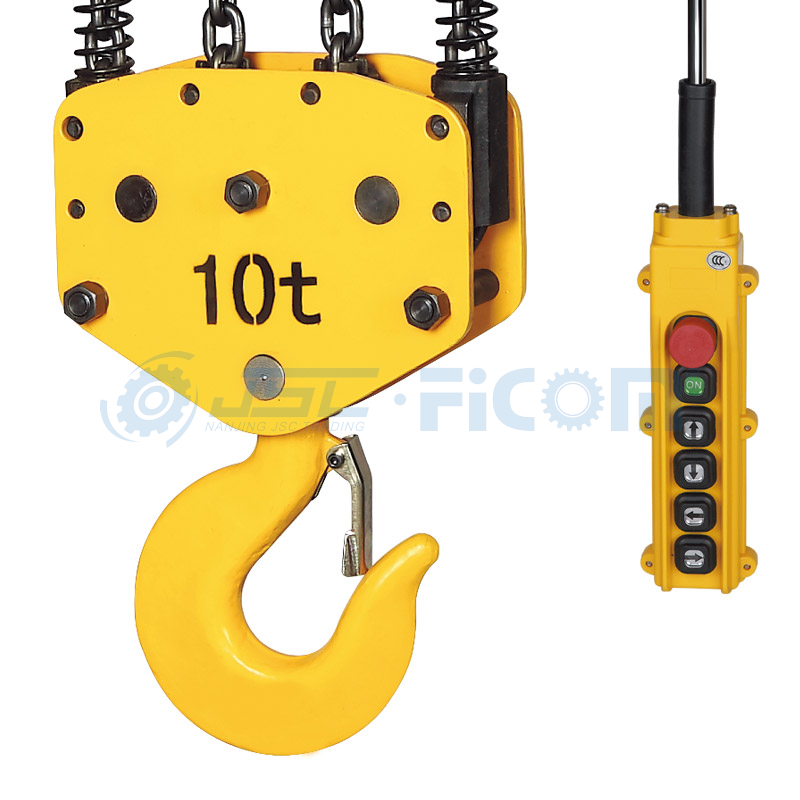

36

Technical Parameters

Capacity

(t)

Model

STD-L
Trolley

Lifting

Speed

(m/min)

Motor

Power

(Kw)

No. of

Chai


Chain

Size


Travel

Speed

(m/min)

Motor

Power

(Kw)

Beamwideth

(mm)

0.5 STD-L-0.5-01D 7.2/2.3 0.8/0.27 1 6.3×19 20/5 0.4/0.1 68-130
1 STD-L-01-01D 6.9/2.3 1.8/0.6 1 7.1×21 20/5 0.4/0.1 68-130
2 STD-L-02-01D 6.6/2.3 3.0/1.0 1 10×30 20/5 0.4/0.1 82-153
STD-L-02-02D 3.3/1.1 1.8/0.6 2 7.1×21
3 STD-L-03-01D 5.4/1.8 3.0/1.0 1 11.2×34 20/5 0.75/0.18 82-153
STD-L-03-02D 4.5/4.5 3.0/1.0 2 10×30
5 STD-L-05-02D 2.7/0.9 3.0/1.0 2 11.2×34 20/5 0.75/0.18 100-178
7.5 STD-L-7.5-03D 1.8/0.6 3.0/1.0 3 11.2×34 20/5 0.75/0.18 150-220
10 STD-L-10-04D 2.7/0.9 3.0×2/1.0×2 4 11.2×34 20/5 0.75/0.18 150-220


Size Specification (mm)

36-6

Model H A B W U

STD-L-0.5-01D

440 545 260 585 400
STD-L-01-01D 480 582 280 630 445

STD-L-02-01D

570 670 313 720 505
STD-L-02-02D 535 582 280 665 445

STD-L-03-01D

640 670 313 775 526
STD-L-03-02D 685 670 313 750 503

STD-L-05-02D

740 670 313 825 541
STD-L-7.5-03D 890 670 313 1020 730
STD-L-10-04D 850 670 313 9896 700
