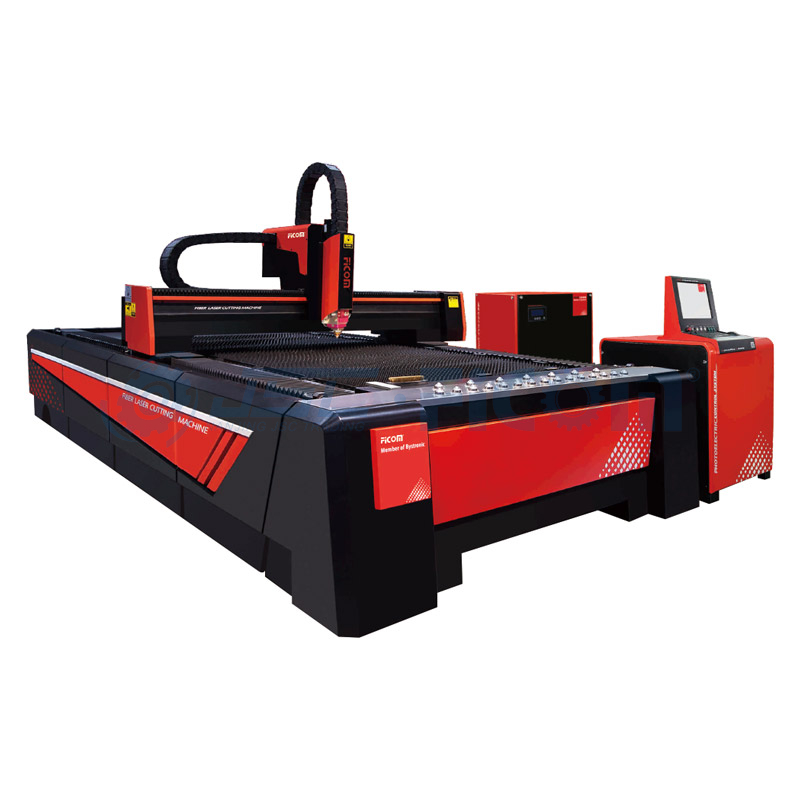

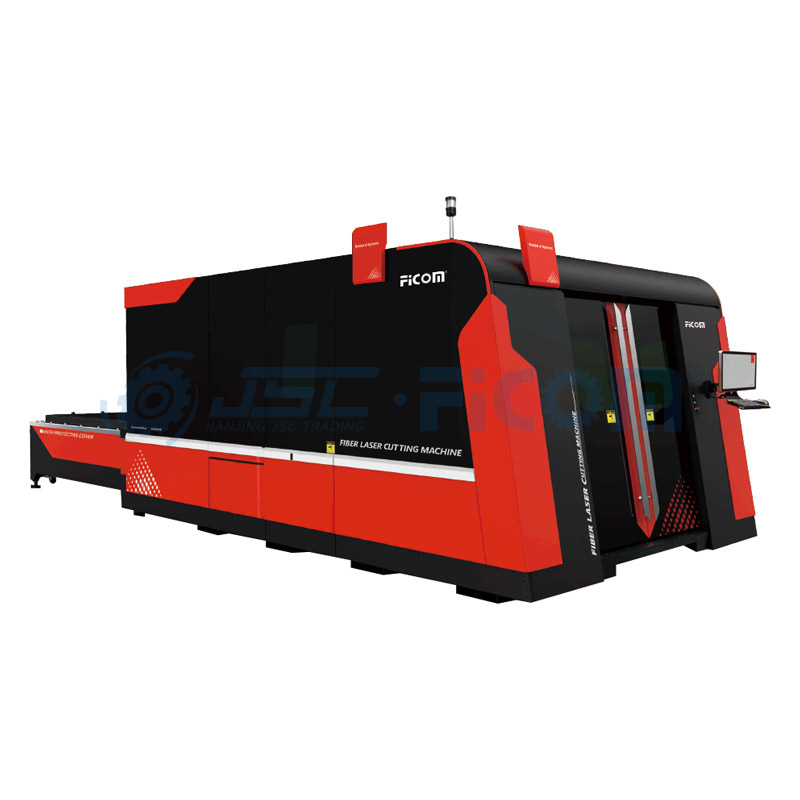

Laser PLUS CNC Laser Cutting Machine

LASER PLUS 1530

1500×3000mm sheet capacity

LASER PLUS 2040

2000×4000mm sheet capacity

LASER PLUS 2060

2000×6000mm sheet capacity

IPG 2000W / 3000W / 4000W / 6000W / 8000W / 10000W with exchange table

* Other sizes available on request

Work Table & Gantry

· 1500×3000mm, or 2000×4000mm sheet capacity (other sizes available)

· Dual rack and pinion drives

· Max position speed 120m/min

· ±0.1mm cutting precision

· 120mm z-axis travel

Power Supply

· IPG only

Main Equipment

· Cutting head and sensors RayTools

· Program software SmartNest

· Electrics Schneider

· Guide way HIWIN

· Rack and gears YYC

· Reducer Shimpo

· Servo motor FUJI

CNC Control

· Beckhoff CNC

· 19” LCD colour display

· USB input

· System memory 2G

· CPU 32

· with remote control

Frame

· Sheet elding

Installation Conditions

· Power stability<2.5%

· Memory 256M, hard disk 80G, DVD CD-ROM

· Oxygen for cutting carbon steel plate purity more than 99.5%

· Nitrogen for cutting stainless steel plate purity more than 99.5%

· Water for water cooling machine (DI water) 60L

· Grounding resistance 4Ω

· Environment temperature 5-45→

· Humidity Less than 90%

· Flat ground
