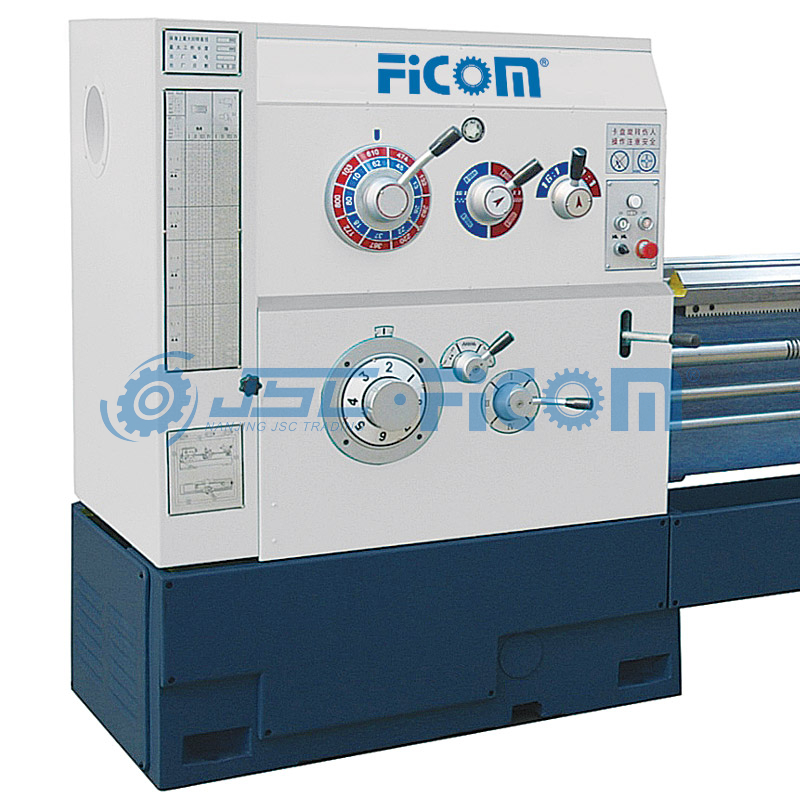

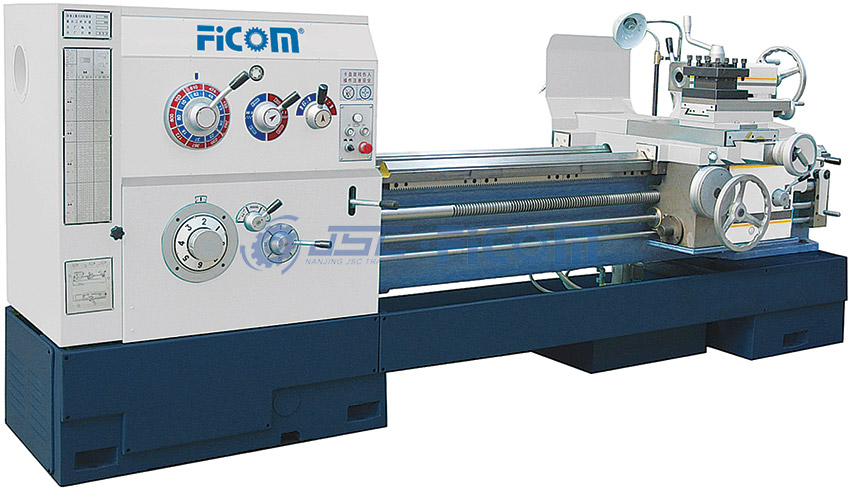

LWQ
FICOM

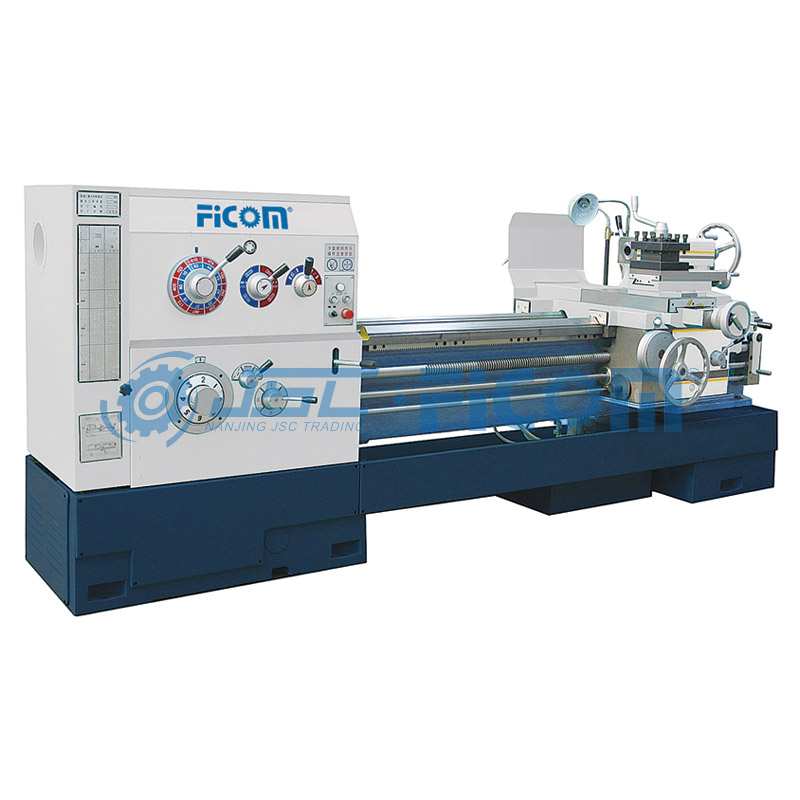

· E: Engine Lathe
· G: Gap Lathe
· Capacity loading: 2T
| Model No. | LWQ24E LWQ24G | LWQ28E LWQ28G | LWQ32E LWQ32G | LWQ36E LWQ36G | |
| swing over bed | 630mm | 730mm | 830mm | 930mm | |
| swing in gap | 800mm | 900mm | 1000mm | 1100mm | |
| swing over cross slide | 350mm | 450mm | 550mm | 650mm | |
| distance between centers | 750mm,1000mm,1500mm,2000mm,3000mm,4500mm,6000mm | ||||
| Length in gap from face plate | 300mm | ||||
| spindle nose | C11orD11 | ||||
| spindle bore | 105mm,130mm | ||||
| spindle speeds | 100-800/18rpm/steps | ||||
| cross slide travel | 480mm | ||||
| top rest travel | 225mm | ||||
| rapid traverse | Axe Z:3200mm/min,Axe X:1900mm/min | ||||
| quill diamenter | 90mm | ||||
| quill travel | 260mm | ||||
| quill taper | MT5 | ||||
| bed width | 550mm | ||||
| metric threads | 1-240mm/53kinds | ||||
| inch threads | 30-2tpi/31kinds | ||||
| module threads | 0.25-60mm/46kinds | ||||
| diametral pitch threads | 60-0.5Lpi/47kinds | ||||
| main motor power | 11Kw | ||||
| packing size | lengh | 3460mm,3390mm,3795mm,4330mm,5310mm,6810mm,8310mm | |||
| width | 1400mm | ||||
| height | 2000mm | ||||
3-jaw Chuck/Φ325&flange | dead Centers | reduction Sleeve | maintenance Kit |
| foundation Bolts/nuts | level Blocks | ||
| machine tool manual.(centers distance is more than 2000mm/(include 2000mm) for(φ200 steady rest φ20-140 follow rest | |||
4-jaw chuck&flange | face plate | drive plate | steady rest(less than 2000mm) |
| follow rest(less than 2000mm) | φ130 spindle bore | electric turret | electric quill |
| taper turning attachment |
