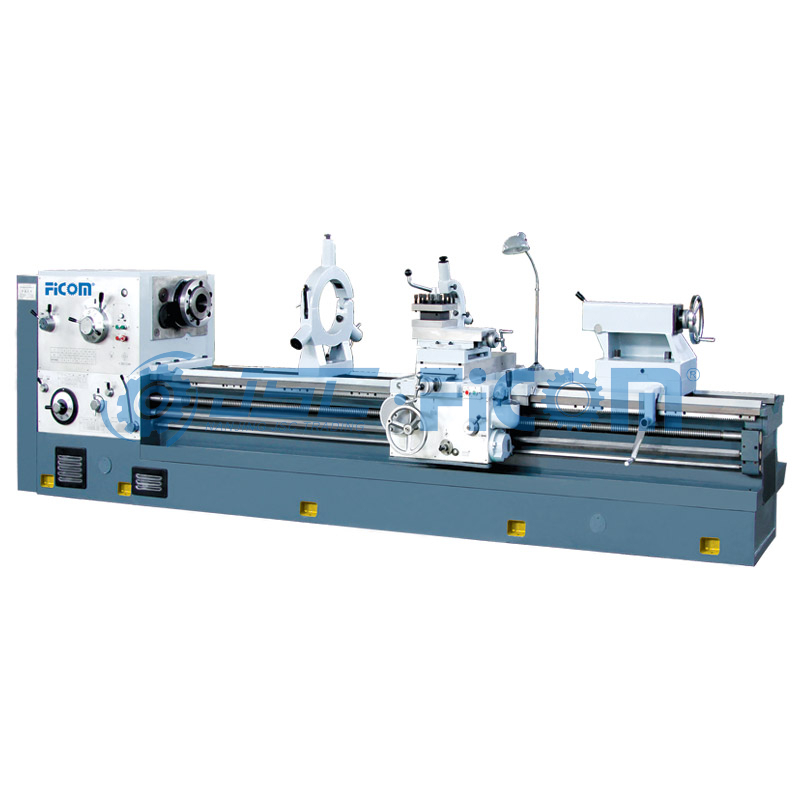

LW
FICOM
· A: Top slide auto feed for taper as special
· B: Φ130mm spindle bore as special
· E: Engine lathe
· G: Gap lathe
· Capacity loading: 4T
| Model No. | LW24E/A/B LW24G/A/B | LW32E/A/B LW32G/A/B | LW40E/A/B LW40G/A/B | LW48E/A/B LW48G/A/B |
| swing over bed | 630mm | 800mm | 1000mm | 1200mm |
| swing in gap | 830mm | 1000mm | 1200mm | 1400mm |
| swing over cross slide | 345mm | 480mm | 680mm | 680mm |
| distance between centers | 850mm,1350mm,1850mm,2850mm,3850mm,4850mm,5850mm,7850mm,9850mm,11850mm | |||
| width of bed | 600mm | |||
| spindle hole | 105mm(130mm) | |||
| spindle taper | 120mm taper1:20 | |||
| spindle speeds | 7.5-1000r/min | |||
| metric threads | 1-240mm (52) | |||
| inch threads | 1-14TPI (26) | |||
| moudle threads | 0.5-120mm (53) | |||
| pitch threads | 1-28mm (24) | |||
| longitudinal feeds range | 0.1-24.3mm/r | |||
| cross feed range | 0.05-12.15mm/r | |||
| rapid feed:longitudinal/cross | 4000mm/min,2000mm/min | |||
| tool section | 32×32mm | |||
| cross slide travel | 370mm | 730mm | ||
| top slide travel | 200mm(170mm for Atype) | |||
| sleeve diameter | 100mm | 120mm | ||
| sleeve taper | MT6 | |||
| sleeve travel | 240mm | |||
| main motor | 11Kw (15Kw) | |||
| rapid feed motor | 1.1Kw | |||
