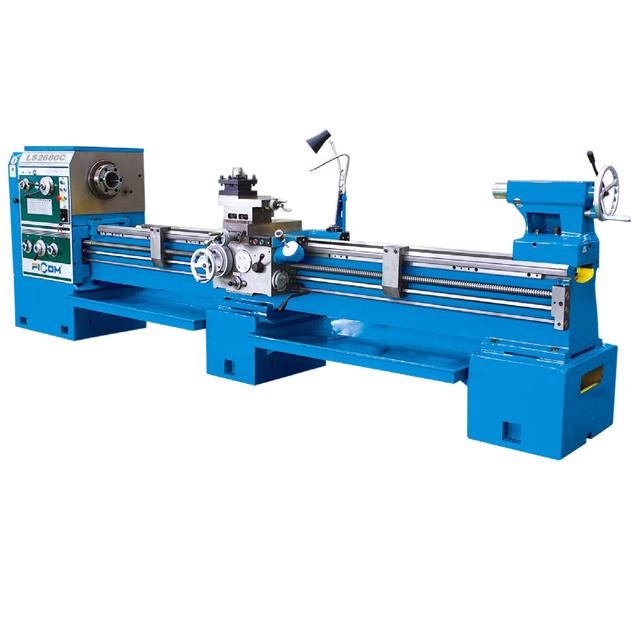

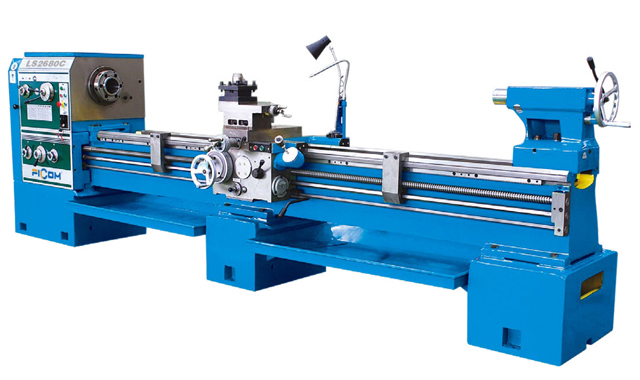

LS Series
FICOM
· Can perform internal and external turning, taper turning, end facing, and other rotary parts turning.
· Threading inch, metric, module and d.P..
· Perform drilling, boring and groove broaching.
· Machine all kinds of flat stocks and those in irregular shapes.
· Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters.
· Both inch and metric system are used on these series lathes, it's easy for people from different measuring systems countries.
· There are hand brake and foot brake for users to choose.
· These series lathes operate on power supply of different voltages (220v/380v/420v) and different frequencies (50hz/60hz).
· B: 82mm Spindle bore
· C: 105mm Spindle bore
| Model No. | Unit | LS20B | LS26B | LS32B | LS20C | LS26C | LS32C | |
| capacity | max. swing dia. over bed | mm | Φ500 | Φ660 | Φ800 | Φ500 | Φ660 | Φ800 |
| max. swing dia. in gap | mm | Φ710 | Φ870 | Φ1000 | Φ710 | Φ870 | Φ1000 | |
| max. swing dia. over slides | mm | Φ300 | Φ420 | Φ560 | Φ300 | Φ420 | Φ560 | |
| max. workpiece length | mm | 1000/1500/2000/3000 | 2000/3000 | 1000/1500/2000/3000 | 2000/3000 | |||
| spindle | spindle bore diameter | mm | Φ82 | Φ105 | ||||
| type of spindle nose | ISO 702/II NO.8 com-lock type | |||||||
| spindle speed | rpm | 24 steps 9-1600 | 24 steps 8-1400 | 12 steps 36-1600 | 12 steps 30-1400 | |||
| spindle motor power | Kw | 7.5 | ||||||
| tailstock | diameter of quill | mm | Φ75 | Φ90 | Φ90 | |||
| max. travel of quill | mm | 150 | ||||||
| taper of quill (morse) | MT | 5 | ||||||
| turret | tool O.D. size | 4; 25×25 | ||||||
| feed | max. X travel | mm | 145 | |||||
| max. Z travel | mm | 320 | 310 | 320 | ||||
| X feed range | mm/r | 93 kinds 0.028-6.43 | 65 kinds 0.063-2.52 | |||||
| Z feed range | mm/r | 93 kinds 0.012-2.73 | 65 kinds 0.027-1.07 | |||||
| metric threads | mm | 48 kinds 0.5-224 | 22 kinds 1-14 | |||||
| inch threads | t.p.i | 48 kinds 72-1/4 | 25 kinds 28-2 | |||||
| module threads | πmm | 42 kinds 0.5-112 | 18 kinds 0.5-7 | |||||
| diametric pitch threads | t.p.i.π | 42 kinds 56-1/4 | 24 kinds 56-4 | |||||
| other | cooling pump motor power | Kw | 0.06 | |||||
| length | mm | 2632/3132/3632/4632 | 3365/4365 | 2632/3132/3632/4632 | 3365/4365 | |||
| width | mm | 975 | 1050 | 1340 | 975 | 1340 | ||
| height | mm | 1230 | 1350 | 1430 | 1270 | 1450 | 1490 | |
| weight | Kg | 2050/2100 2300/2500/2900 | 2400/2600 2800/3000 | 3300/3700 | 2100/2300 2500/2900 | 2200/2400 2600/3000 | 3000/3200 | |
