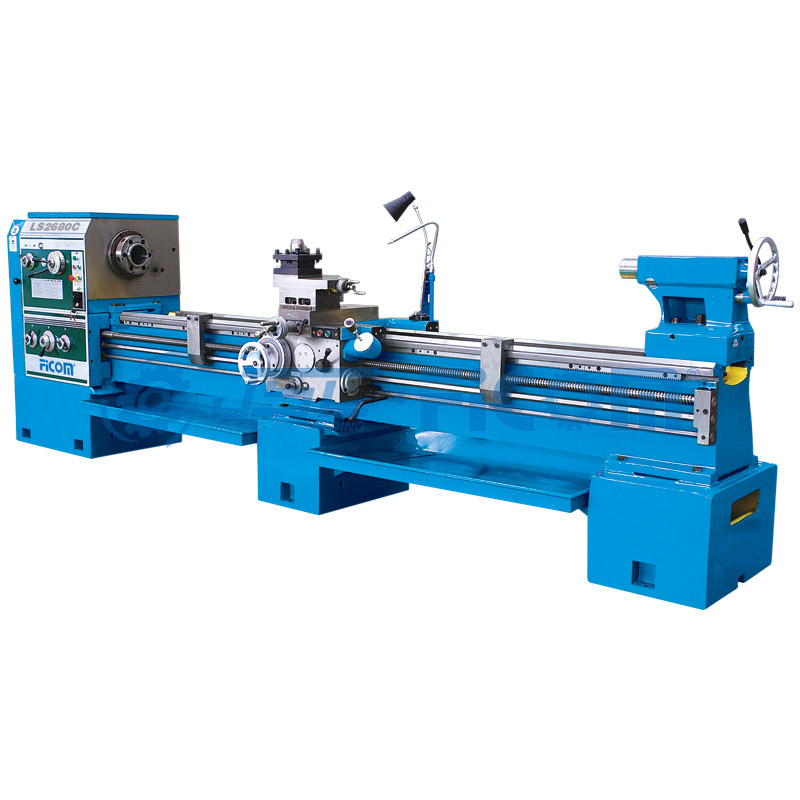

LS Series GAP-BED Lathes

Quantity:
  • LS Series
  • FICOM


Overview

· Can perform internal and external turning, taper turning, end facing, and other rotary parts turning.

· Threading inch, metric, module and d.P..

· Perform drilling, boring and groove broaching.

· Machine all kinds of flat stocks and those in irregular shapes.

· Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters.

· Both inch and metric system are used on these series lathes, it's easy for people from different measuring systems countries.

· There are hand brake and foot brake for users to choose.

· These series lathes operate on power supply of different voltages (220v/380v/420v) and different frequencies (50hz/60hz).



LS

· B: 82mm Spindle bore

· C: 105mm Spindle bore


Technical Parameters
Model No. Unit LS20B LS26B LS32B LS20C LS26C LS32C
capacity max. swing dia. over bed mm Φ500 Φ660 Φ800 Φ500 Φ660 Φ800
max. swing dia. in gap mm Φ710 Φ870 Φ1000 Φ710 Φ870 Φ1000
max. swing dia. over slides mm Φ300 Φ420 Φ560 Φ300 Φ420 Φ560
max. workpiece length mm 1000/1500/2000/3000
2000/3000 1000/1500/2000/3000 2000/3000
spindle spindle bore diameter mm Φ82 Φ105
type of spindle nose
ISO 702/II NO.8 com-lock type
spindle speed rpm 24 steps 9-1600 24 steps 8-1400 12 steps 36-1600 12 steps 30-1400
spindle motor power Kw 7.5
tailstock diameter of quill mm Φ75 Φ90 Φ90
max. travel of quill mm 150
taper of quill (morse) MT 5
turret tool O.D. size
4; 25×25
feed max. X travel mm 145
max. Z travel mm 320 310 320
X feed range mm/r 93 kinds 0.028-6.43 65 kinds 0.063-2.52
Z feed range mm/r 93 kinds 0.012-2.73 65 kinds 0.027-1.07
metric threads mm 48 kinds 0.5-224 22 kinds 1-14
inch threads t.p.i 48 kinds 72-1/4 25 kinds 28-2
module threads πmm 42 kinds 0.5-112 18 kinds 0.5-7
diametric pitch threads t.p.i.π 42 kinds 56-1/4 24 kinds 56-4
other cooling pump motor power Kw 0.06
length mm 2632/3132/3632/4632 3365/4365 2632/3132/3632/4632 3365/4365
width mm 975 1050 1340 975 1340
height mm 1230 1350 1430 1270 1450 1490
weight Kg

2050/2100

2300/2500/2900

2400/2600

2800/3000

3300/3700

2100/2300

2500/2900

2200/2400

2600/3000

3000/3200
