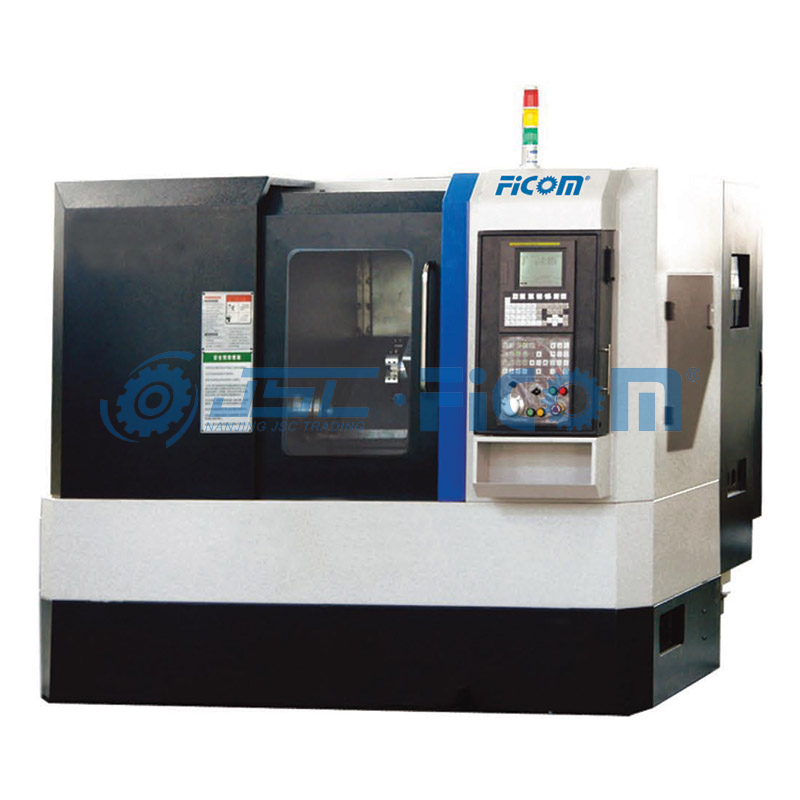

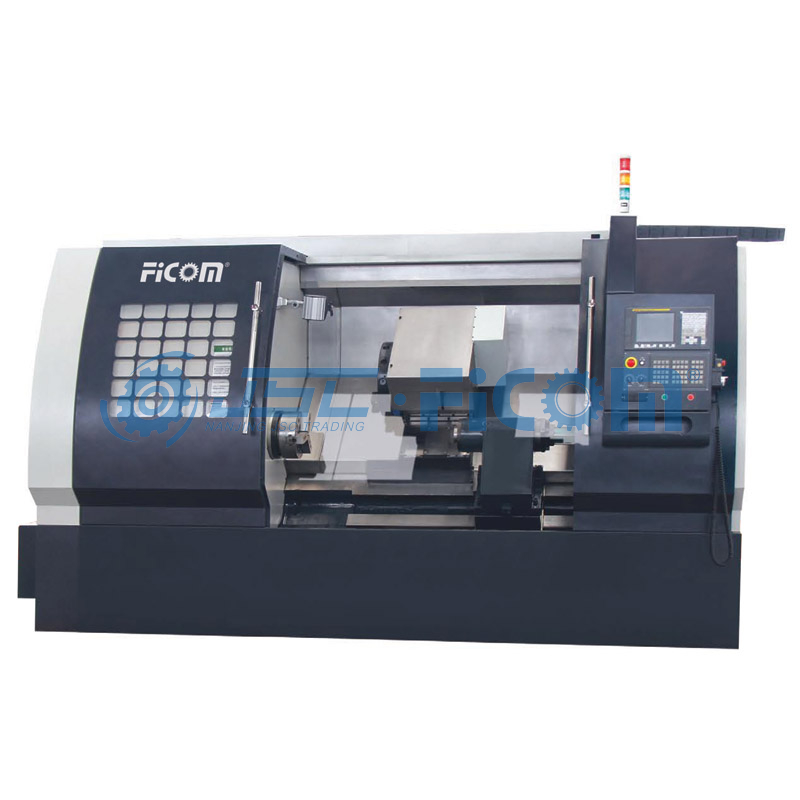

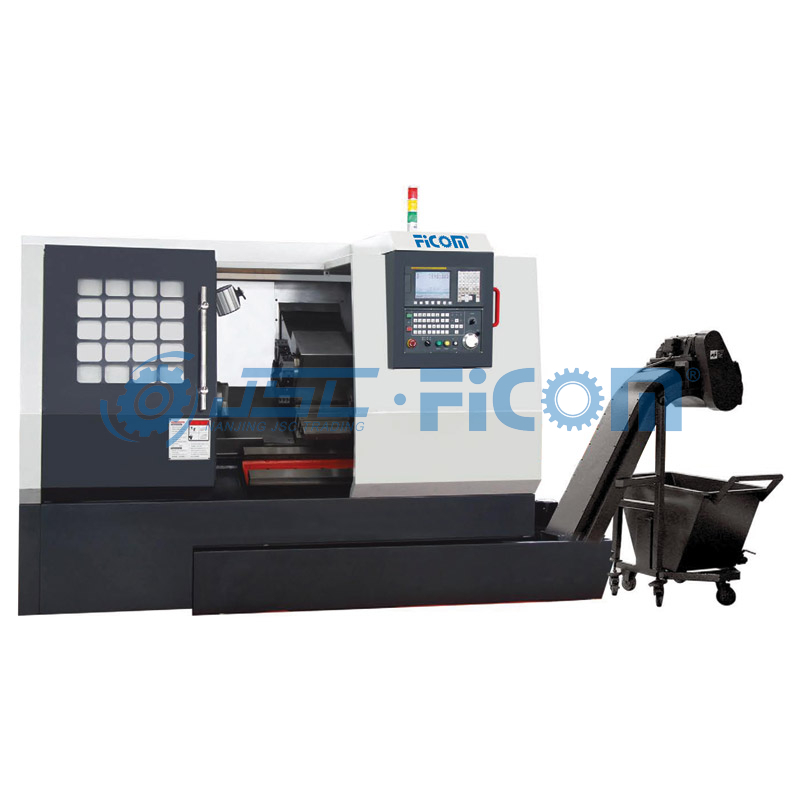

LIB Series Linear Guideway CNC Lathe-inclined Bed Type

Quantity:
  • LIB
  • FICOM


Overview

· Cast-iron, torque-tube construction

· High-quality preloaded ball screws

· Linear guideways

· Hydr. tool turret

· Auto. Central lubrication

· 3-jaws Hydr. Chuck

· Hydr. Tail stock

LIB



Technical Parameters
Model No. LIB30 LIB30H LIB40 LIB45 LIB50 LIB58
max. swing over bed Φ350mm Φ350mm Φ400mm Φ450mm Φ500mm Φ580mm
max. turning diameter Φ350mm Φ280mm Φ300mm Φ360mm Φ500mm Φ580mm
cutting over support Φ80mm Φ150mm Φ250mm Φ300mm Φ320mm Φ360mm
cutting length 250mm 150mm 300mm 400mm 580mm 960mm
center to center - - 440mm 750mm 670mm 1320mm
chuck size(hydr. chuck) A2-4  5" A2-4  5" A2-5  6" A2-5  6" A2-8  10" A2-8  10"
main motor 5.5KW 5.5KW 7.5-11KW 11-15KW 15-22KW 15-30KW
spindle speed 4500rpm 4500rpm 4500rpm 4500rpm 2600rpm 2600rpm
spindle bore Φ41mm Φ41mm Φ49mm Φ49mm Φ87mm Φ87mm
turret positions - 8pcs 8pcs 8pcs 10pcs 12pcs
section of tooling tool 20×20mm 20×20mm 20×20mm 20×20mm 20×20mm 25×25mm
max. diameter of boring bar Φ25mm Φ25mm Φ25mm Φ25mm Φ25mm Φ40mm
tailstock quill - - Φ65mm Φ65mm Φ100mm Φ100mm
tailstock quill travel - - 80mm 80mm 120mm 120mm
tailstock travel - - 300mm 710mm 670mm 1250mm
tailstock taper - - MT4 MT4 MT5 MT5
positioning accuracy 0.01mm 0.01mm 0.01mm 0.01mm 0.01mm 0.01mm
repeatability accuracy 0.008mm 0.008mm 0.008mm 0.008mm 0.008mm 0.008mm
overall dimensions 2800×1500×1900mm 2800×1500×1900mm 3200×1600×2100mm 3520×2000×2100mm 3200×2100×2100mm 3620×2200×2200mm
G.W. 2000kg 2000kg 3000kg 4000kg 5600kg 7000kg
