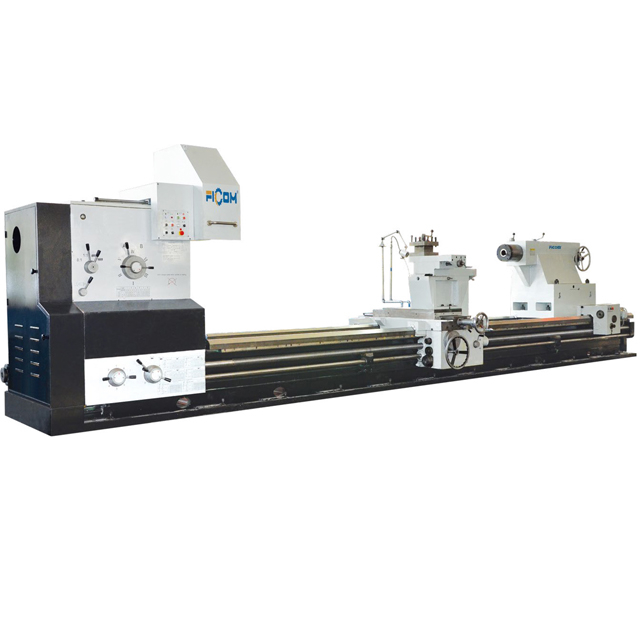

LH
FICOM
· E: Engine lathe
· G: Gap lathe
· Capacity loading: 10T
| Model No. | LH50E LH50G | LH58E LH58G | LH66E LH66G | LH78E LH78G | LH82E LH82G |
| max swing overbed | 1280mm | 1480mm | 1680mm | 1980mm | 2080mm |
| max.swing over cross slide | 800mm | 1000mm | 1200mm | 1500mm | 1600mm |
| max swing over gap | 1580mm | 1780mm | 1980mm | 2280mm | 2380mm |
| center distance | 2m,3m,4m,5m,6m,7m,8m,10m,12m | ||||
| vaild lenght of gap | 600mm | ||||
| bed width | 1100mm | ||||
| spindle bore | 130mm | ||||
| spindle taper | 140mm | ||||
| spindle speeds | 3.15-315r/mm,2-200r/mm,2.5-250r/mm | ||||
| metric threads range | 44 (1-120mm) | ||||
| inch threads range | 31(1/4-24) | ||||
| moudle threads range | 45(0.5-60mm) | ||||
| pitch threads | 38(1/2-56DP) | ||||
| longitudinal leeds range | 56(0.1-12mm) | ||||
| cross feed rang | 56(0.05-6mm) | ||||
| rapid feed:long/cross | 340mm/min,1700mm/min | ||||
| distance between center & tool | 48mm | ||||
| tool section | 45×45mm | ||||
| cross slide travel | 860mm | ||||
| compound rest travel | 280mm | ||||
| sleeve diameter | 260mm | ||||
| sleeve taper | 80# | ||||
| sleever travel | 300mm | ||||
| main drive motor | 30Kw | ||||
| coolant pump motor | 0.15Kw | ||||
| rapid feed motor | 1.5Kw | ||||
| tailstock motor | 1.5Kw | ||||
