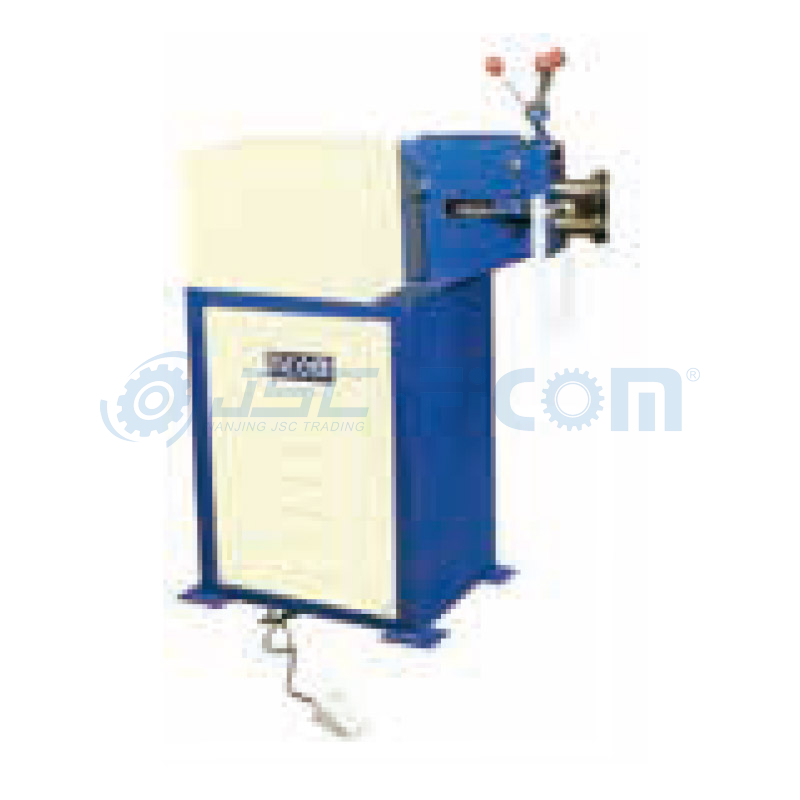

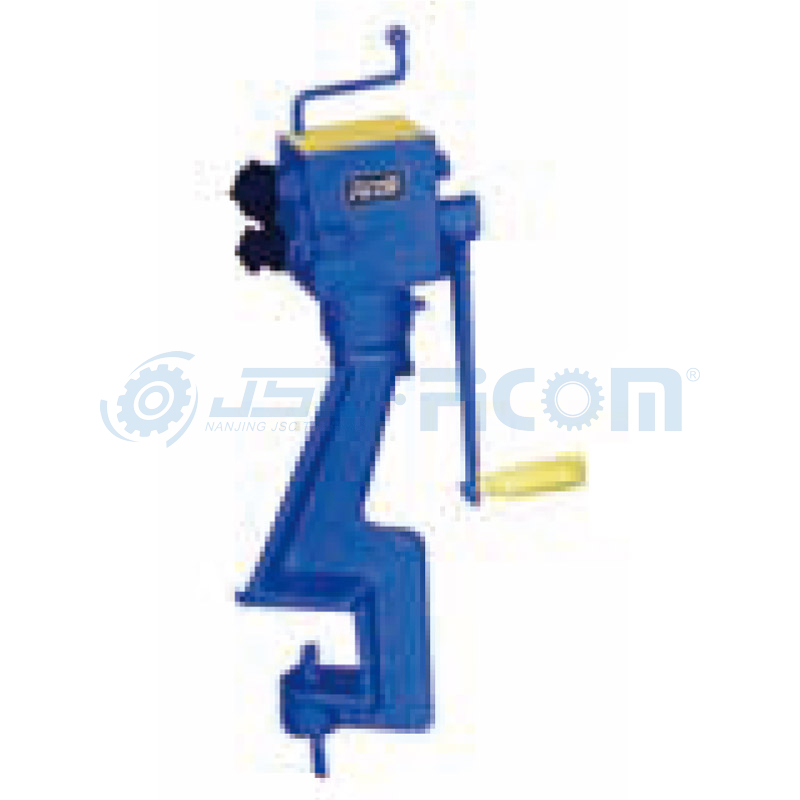

LH Electric, Manual Roll Reel-ray Machine

Machine sub-manual machine and electric Drive, the main function is to produce the pressure tube tendons, connections and other functions, and can be made by special rolling wheels of different shapes of the workpiece. Such as: flange, envelope, mortise, bead groove, cutting, knurling, shrimp curved interface, and customers can make custom-made special forming requirements.
Availability:
Quantity:
  • LH

  • FICOM

Overview

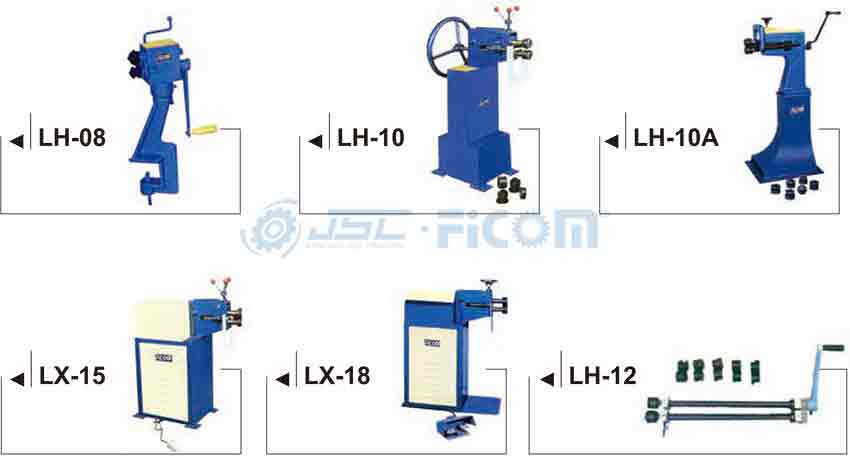

15


Technical Parameters
Model

Shear Thickness

(mm)

Power

(Kw)

Weight

(Kg)

Dimension

L×W×L

LH-08 0.8
18 370×370×760
LH-10 1.0
62 650×400×900
LH-10A 1.0
30 370×370×760
LH-15 1.5 1.5
125 370×370×760
LH-18 1.8 2.2
225 370×370×760
LH-12 1.2
25 730×270×140


Function

Roller F1 F2 F3 F4 F5 F6 F7

Forming

Profile

G1 G2 G3 G4 G5 G6 G7
Function Elbow
Knurled Wire Cover Roll Cutting Pressing Beading
